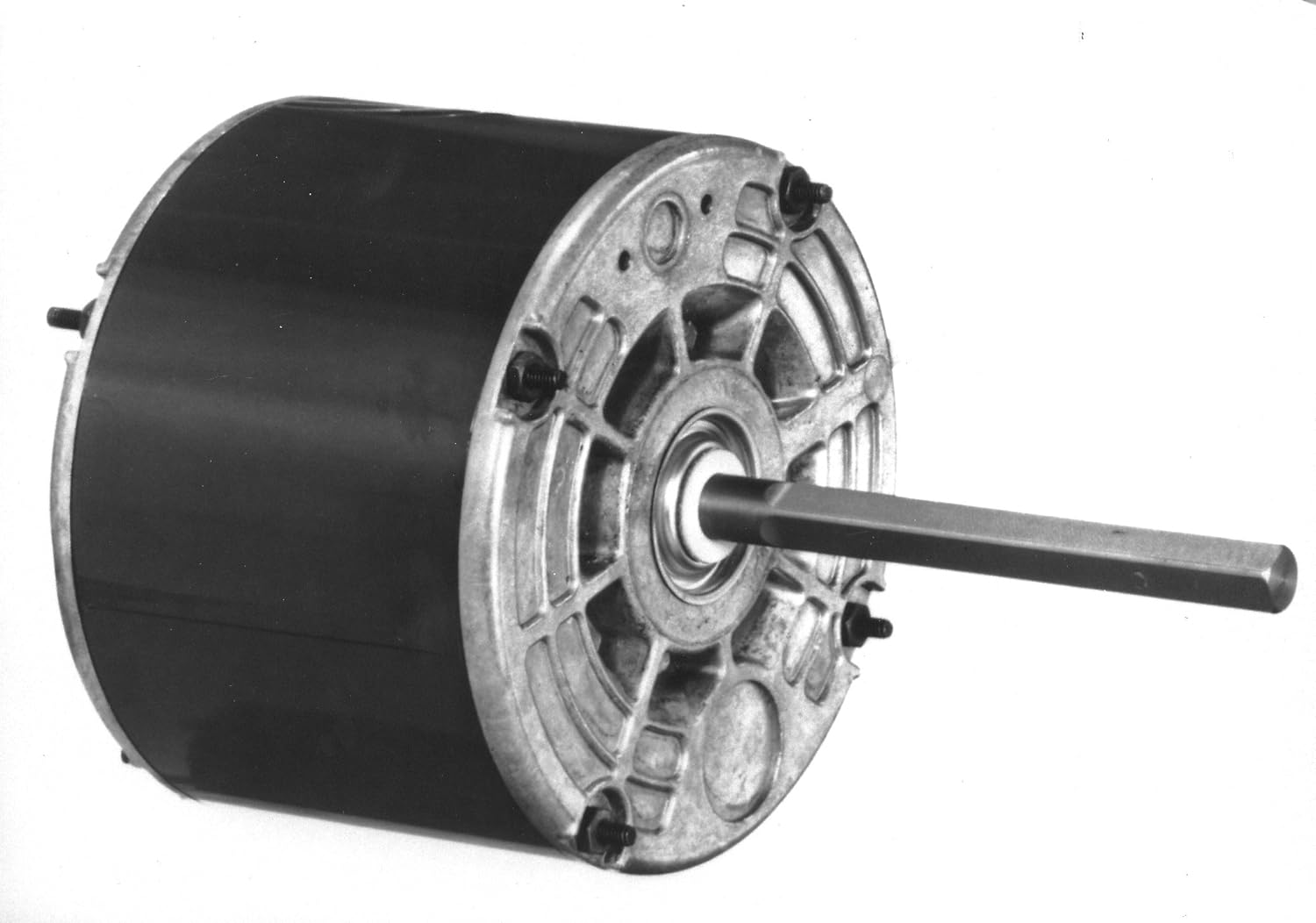

Fasco D832 Condenser Fan Motor 1/8 HP 208-230V 825 RPM Replacement Rheem 51-21276-01

Product Description

The Fasco D832 Condenser Fan Motor is an essential component for your HVAC system. Designed to replace Rheem 51-21276-01, this motor ensures optimal performance and reliability.

• Motor Power: 1/8 HP
• Voltage: 208-230V
• Speed: 825 RPM

Product Highlights

This Fasco condenser fan motor features a permanent split capacitor design, providing reliable and efficient operation. It is compatible with Rheem and Ruud systems, offering a seamless replacement with extended studs for easy mounting.

Product Information

Standard Information

• Brand: Fasco
• MPN: D832
• Replacement For: Rheem 51-21276-01

Technical Specifications

• Voltage: 208-230 Volts
• Horsepower: 1/8 HP
• RPM: 825
• Electrical Type: Permanent Split Capacitor
• Frame: 48Z
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Rotation: Counterclockwise/Clockwise
• Material: Rolled Steel
• Mounting: Extended Studs
• Amperage: 1.10A
• Shaft Type: Double Flat
• Shaft Diameter: 0.5 inches
• Shaft Extension: 4.75 inches
• Bearings: Ball
• Ambient Temperature: 40°C
• Service Factor: 1
• Duties: Continuous Air Over
• Insulation Class: B
• Run Capacitator: 5 MFD-370 Volts (not supplied)
