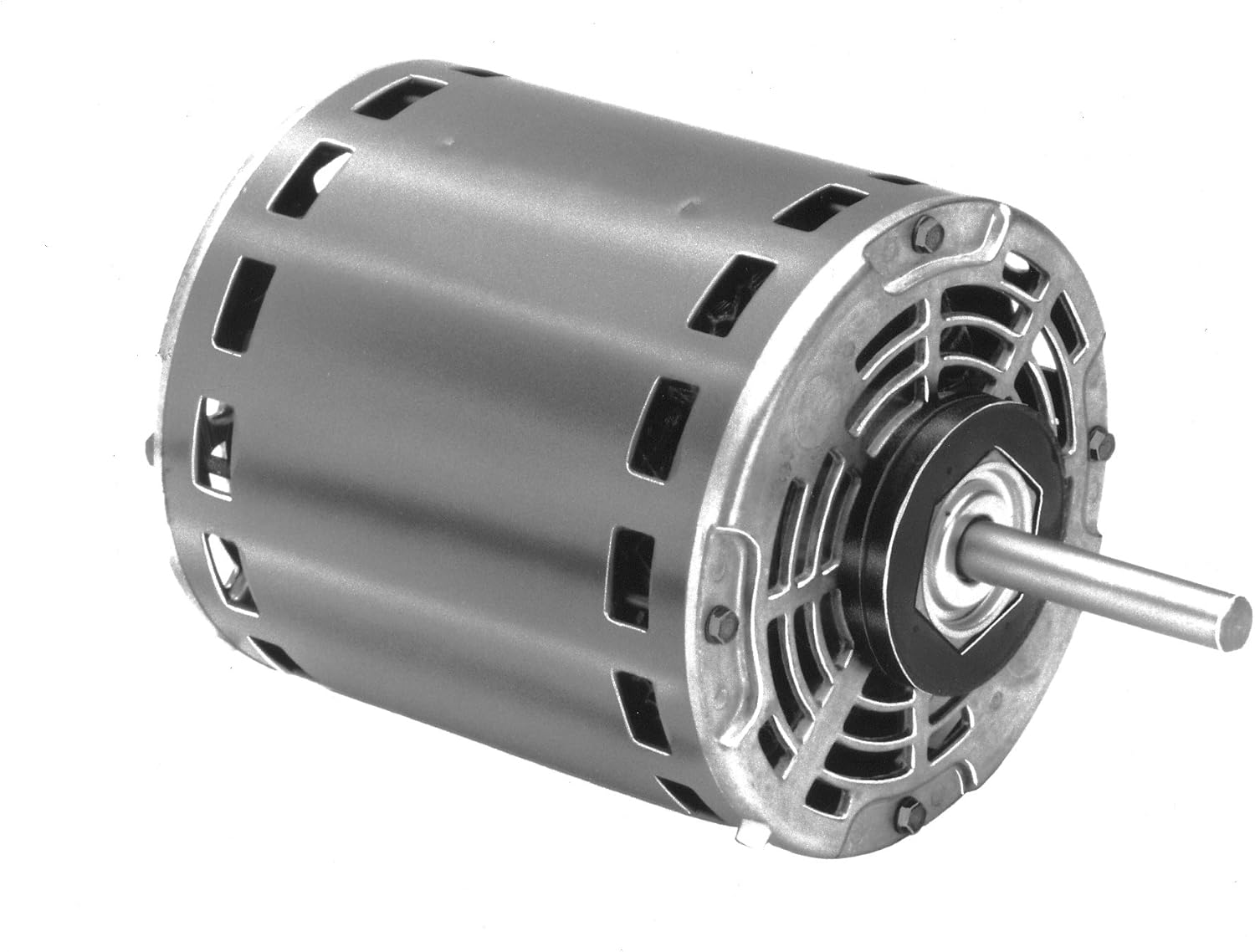

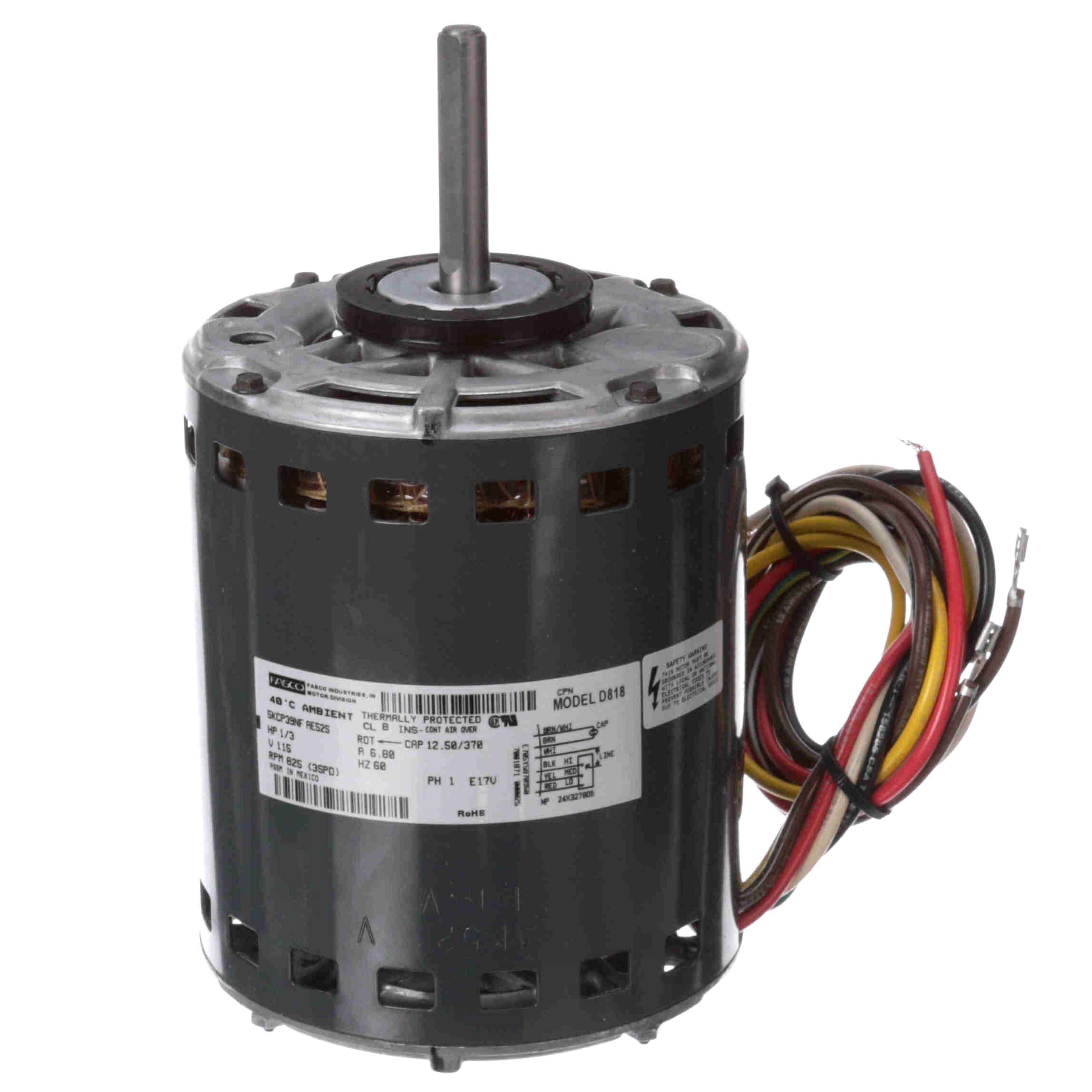

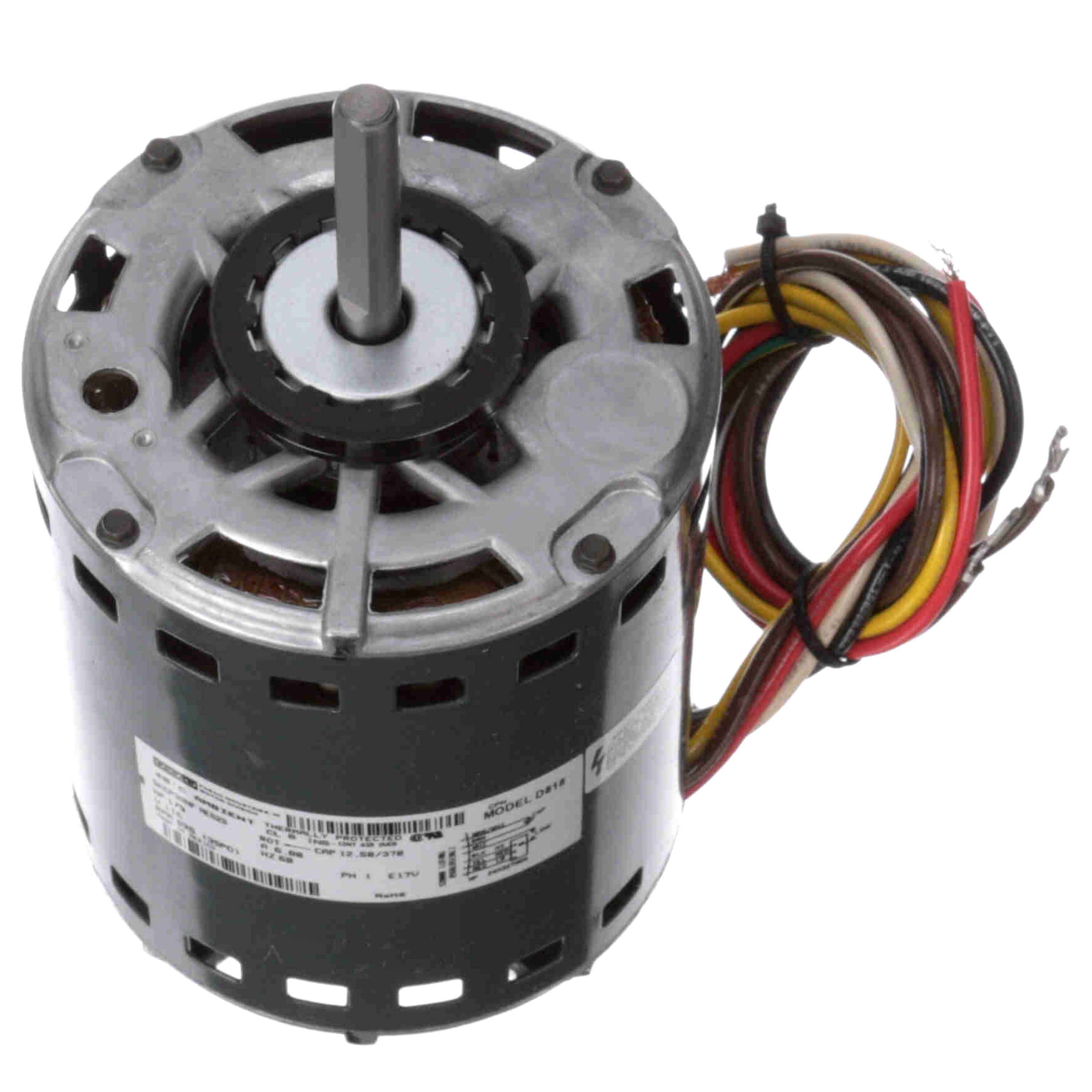

Fasco D818 1/3hp 825rpm 3-speed cw 5.6 inches diameter 115 volts (lennox)

Product Description

The FASCO D818 is a 1/3hp, 3-speed motor operating at 825RPM with a 5.6" diameter and 115 Volts, designed as a Lennox replacement. This permanent split capacitor motor features automatic thermal protection and sleeve bearings. It is designed with an open enclosure and a single shaft. Capacitor is not included.

• Base mount
• Sleeve bearings
• Automatic thermal protection
• Single shaft open enclosure

Product Highlights

This FASCO motor is suitable for various applications requiring a 3-speed, 115V motor with thermal protection.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D818

Technical Specifications

• Speed: 825 RPM
• Voltage: 115 Volts
• Horsepower: 0.33 hp
• Type: Permanent Split Capacitor
• Hertz: 60
• Mount: Resilient Rings
• Phase: 1
• Poles: 8
• Speeds: 3
• Amperage: 7.3, 3.9, 5.1
• Bearings: Sleeve
• Rotation: CCW
• Approvals: UL
• Frequency: 60 Hz
• Frame Size: 48
• Enclosure Type: Open Air Over
• Insulation Class: B
• Overload Protection: Thermally
• Max Ambient Temp (°F): 104°F
• Duty: Continuous Air Over
• Rated RPM: 825
• Motor Type: Permanent Split Capacitor
• Thermal Protection: Automatic
• Certifications: UL and CSA
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Service Factor: 1
• Ambient Temperature: 40 °C
• Current: 6.80 A
• Electrical Type: Permanent Split Capacitor
• Motor Orientation: Any
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 10.14 in
• Frame Length: 6.07 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 2.50 in
