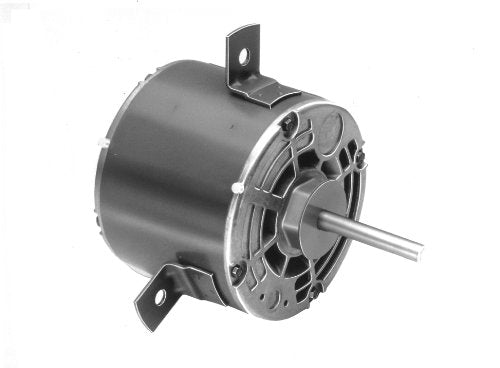

Fasco D803 Bryant Carrier OEM Replacement Motor 1/3-1/4 HP 1075 RPM 230V

Product Description

The Fasco D803 is an OEM replacement motor for Bryant/Carrier systems. This motor features a sleeve bearing and is thermally protected.

• OEM replacement motor with sleeve bearing
• Thermally protected
• UL recognized; CSA certified

Product Highlights

This motor is designed for versatility with reversible rotation and permanent split capacitor type. It has a power rating of 1/3 to 1/4 horsepower and operates at 230 volts with a speed rating of 1075 rpm. The full load current ranges between 2.6 to 2.2 amps. The shaft measures 1/2 inch in diameter and 3 1/2 inches in length, while the motor length is 4 1/2 inches. It replaces Bryant/Carrier model K55HXLKK-5918, HC41VB701.

Product Information

Standard Information

• OEM Replacement: Bryant/Carrier K55HXLKK-5918, HC41VB701
• Motor Type: Permanent Split Capacitor

Technical Specifications

• Power: 1/3-1/4 HP
• Voltage: 230V
• Speed: 1075 RPM
• Current: 2.6-2.2 Amps
• Rotation: Reversible
• Shaft Diameter: 1/2 inch
• Shaft Length: 3 1/2 inches
• Motor Length: 4 1/2 inches
