Fasco D799 5.6 Inches Frame Open Ventilated Permanent Split Capacitor Condenser Fan Motor with Sleeve Bearing

Product Description

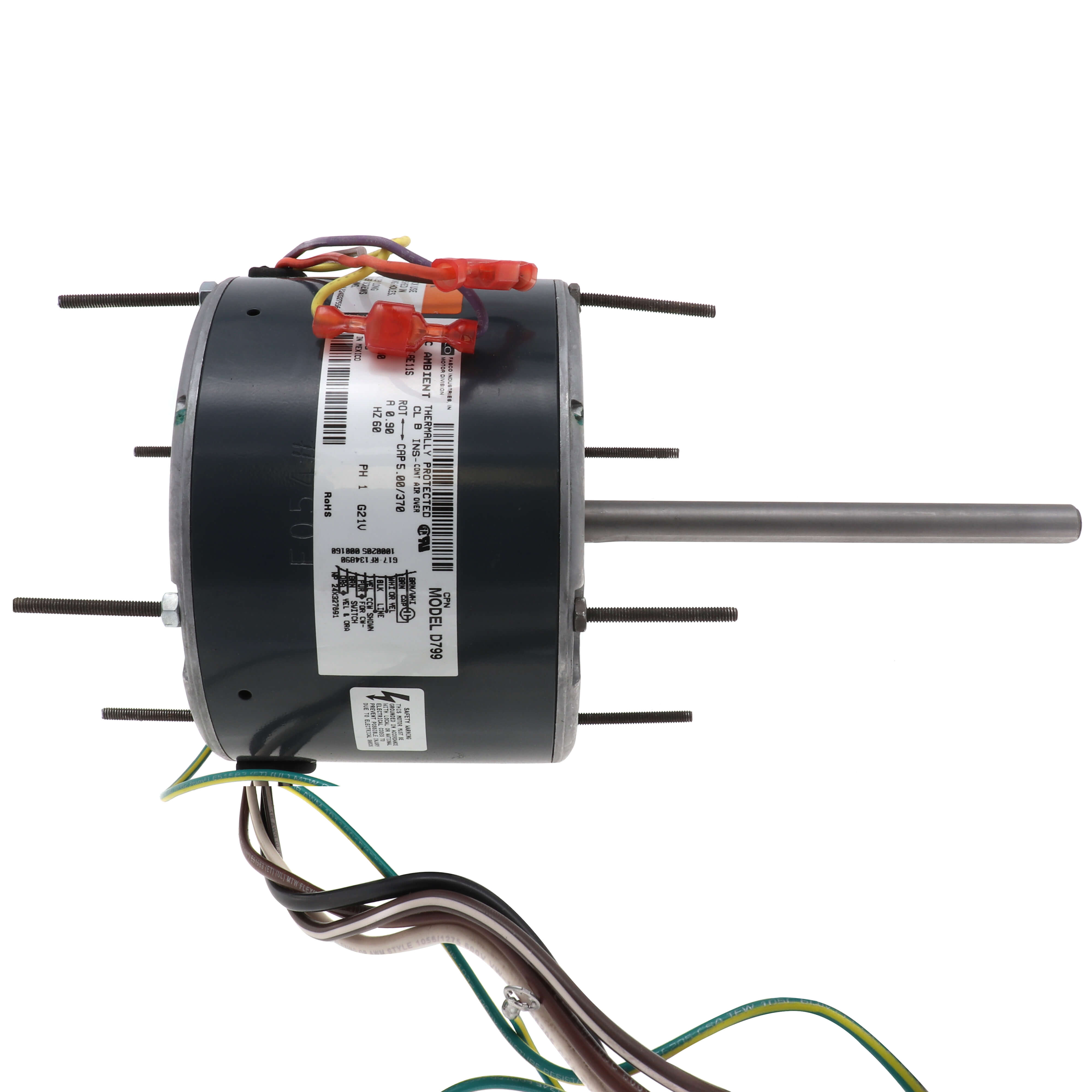

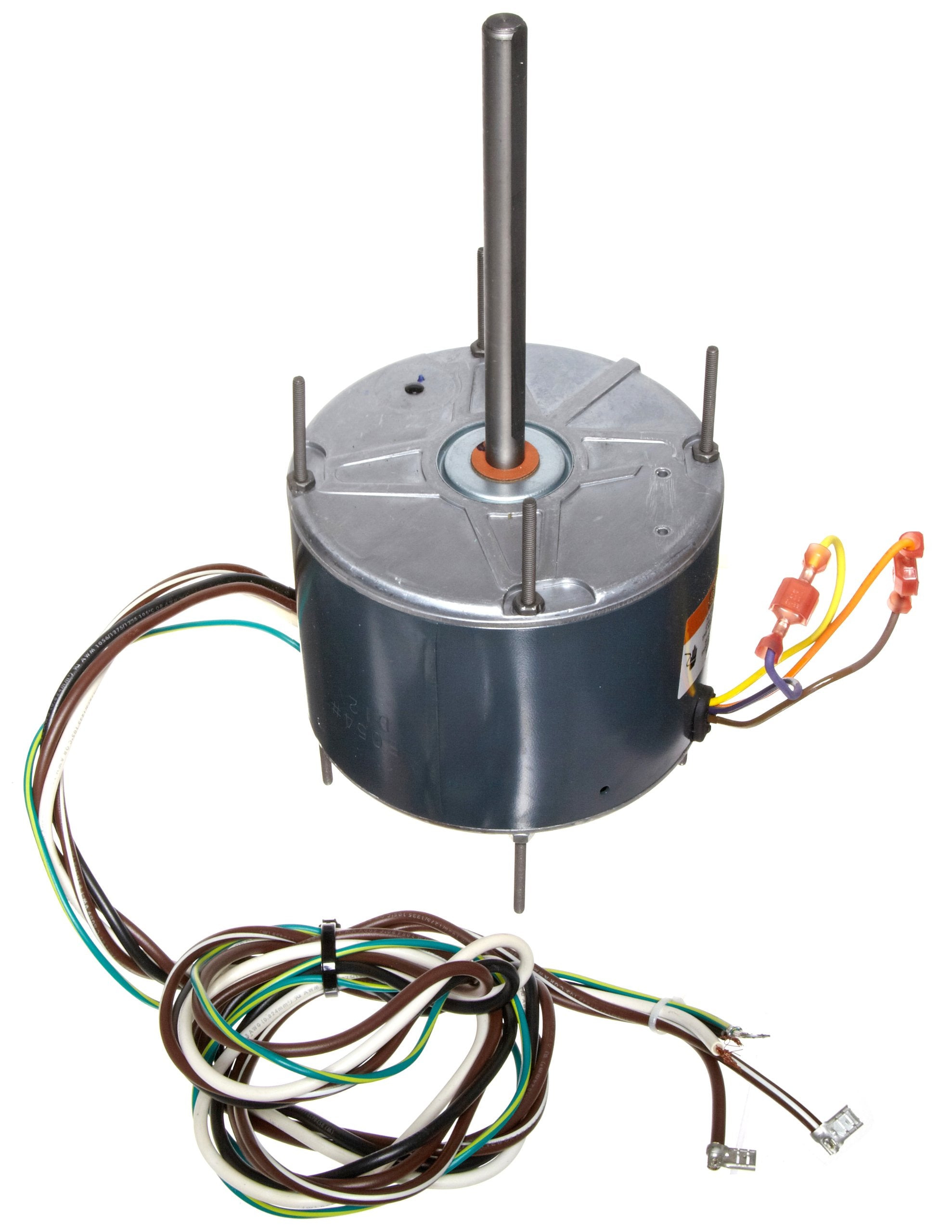

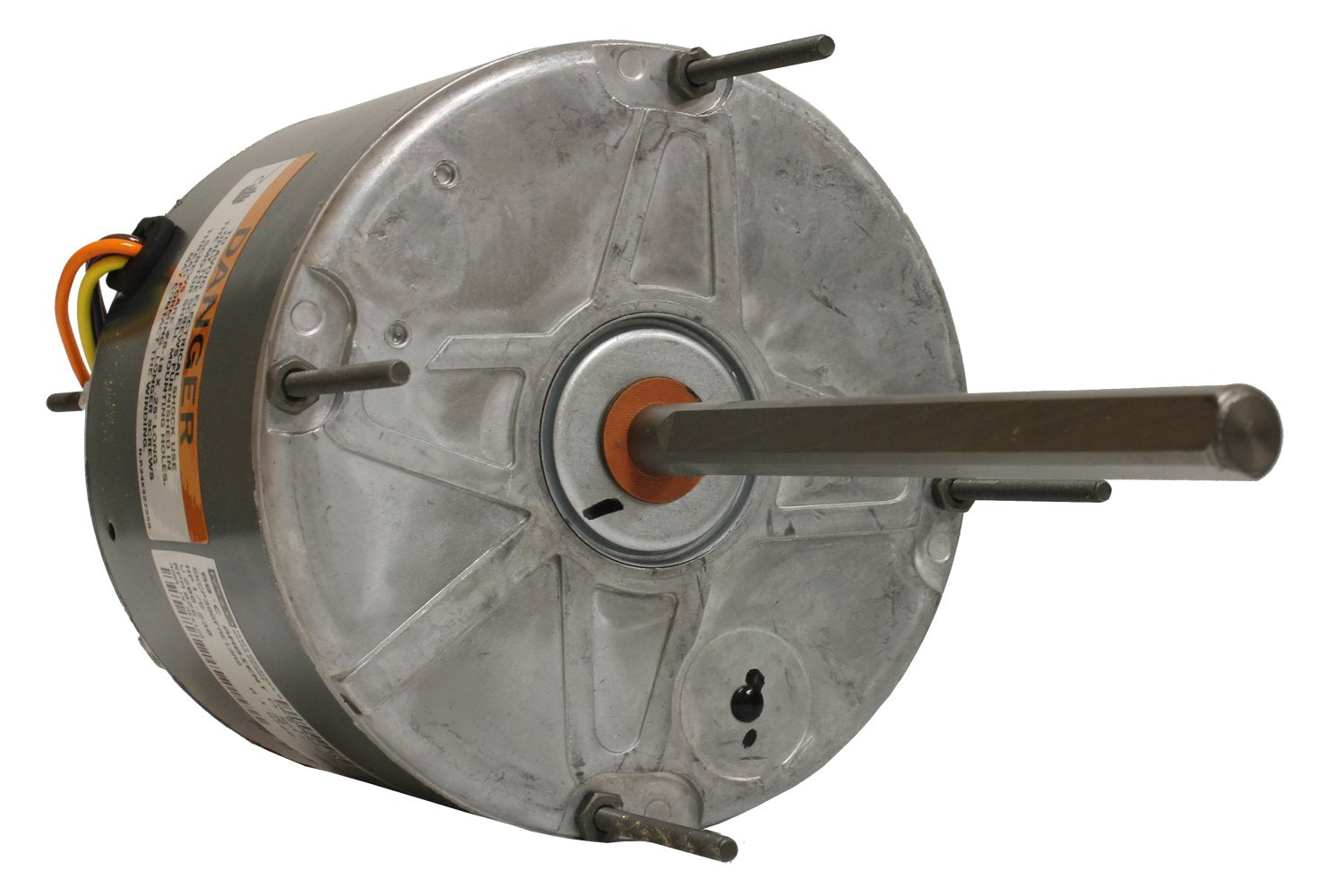

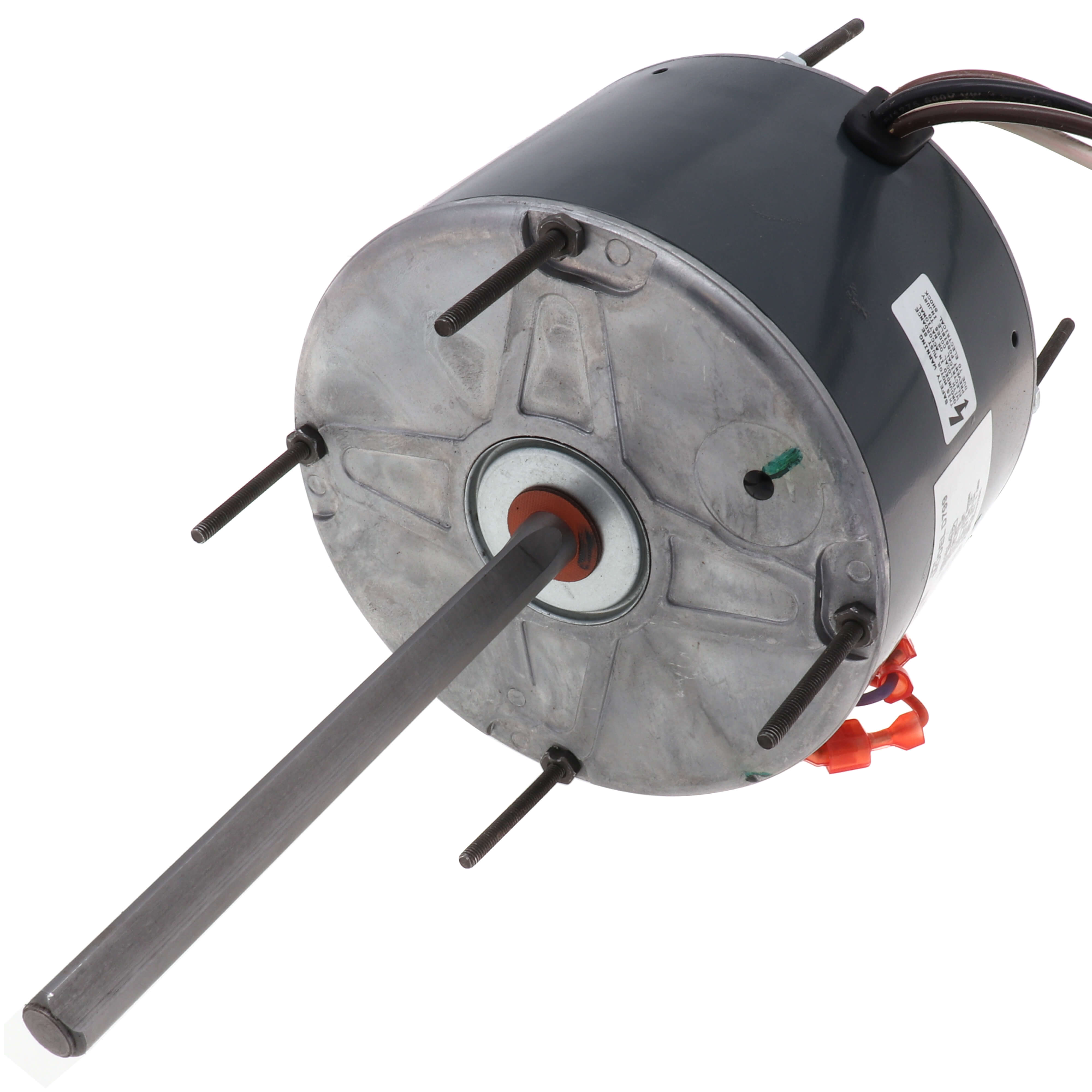

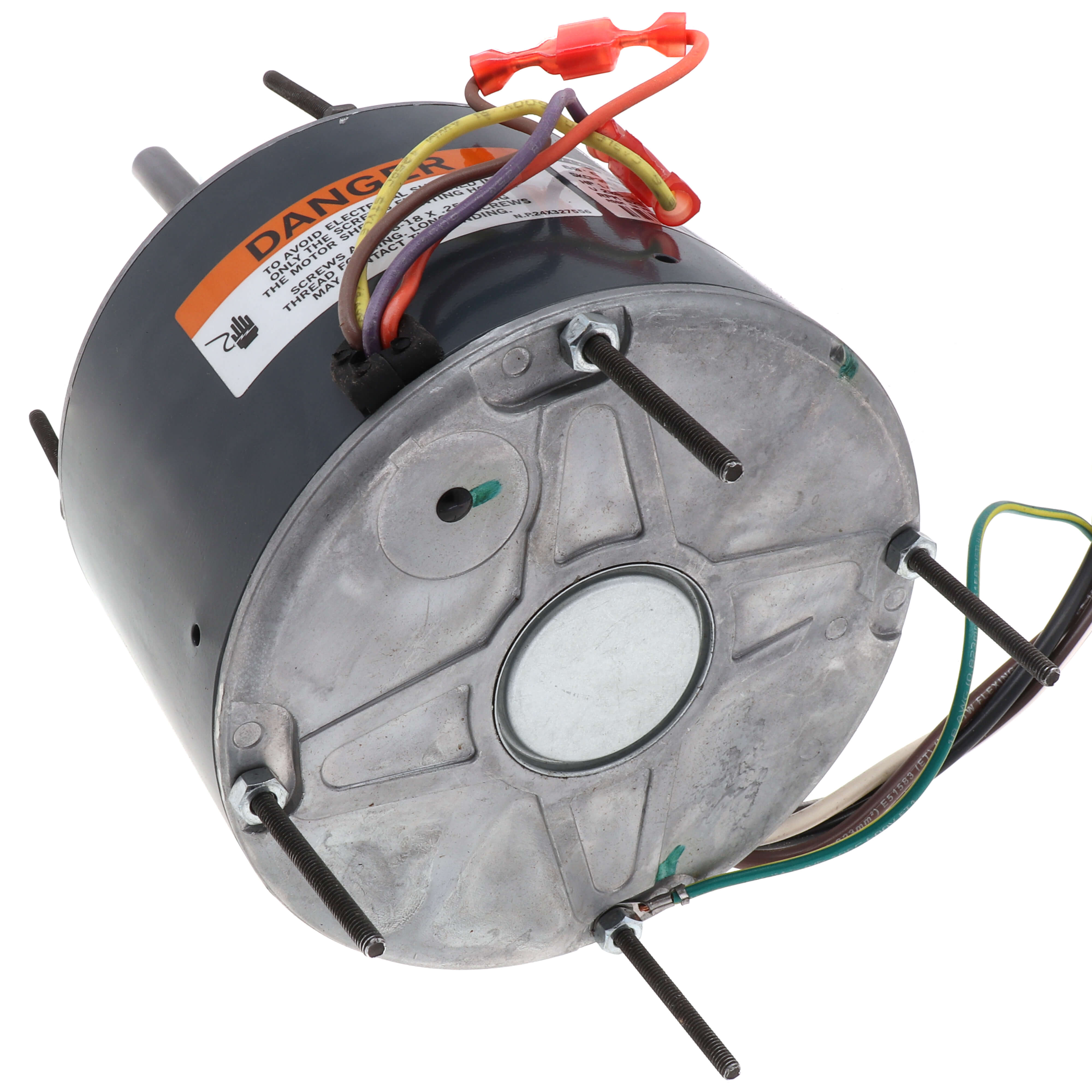

The Fasco D799 is a 5.6 inches frame, open ventilated, permanent split capacitor condenser fan motor designed for reliable performance. This motor operates at 1/8HP, with a speed of 825 rpm and is compatible with 208-230V at 60Hz, drawing 0.9 amps. It is primarily suited for condenser fan applications where efficient cooling is necessary.

• Open ventilated design for optimal airflow
• Sleeve bearing for smooth operation
• Reversible rotation allows for installation flexibility

Product Highlights

Fasco D799 features thermal protection and is built to last, making it suitable for various HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: D799

Technical Specifications

• Speed: 825 RPM
• Voltage: 208-230V
• Horsepower: 0.13 HP
• Rotation: Reversible
• Frame Size: 48
• Bearing Type: Sleeve
• Shaft Length: 6 inches
• Full Load Ampere: 0.9 A
• Motor Type: Permanent Split Capacitor
• Phase: Single Phase
• Thermal Protection: Automatic
• Diameter: 5-5/8 inches
• Length Less Shaft: 4-1/2 inches
• Certifications: UL and CSA
• Material: Rolled Steel
• Shaft Type: Double Flat
