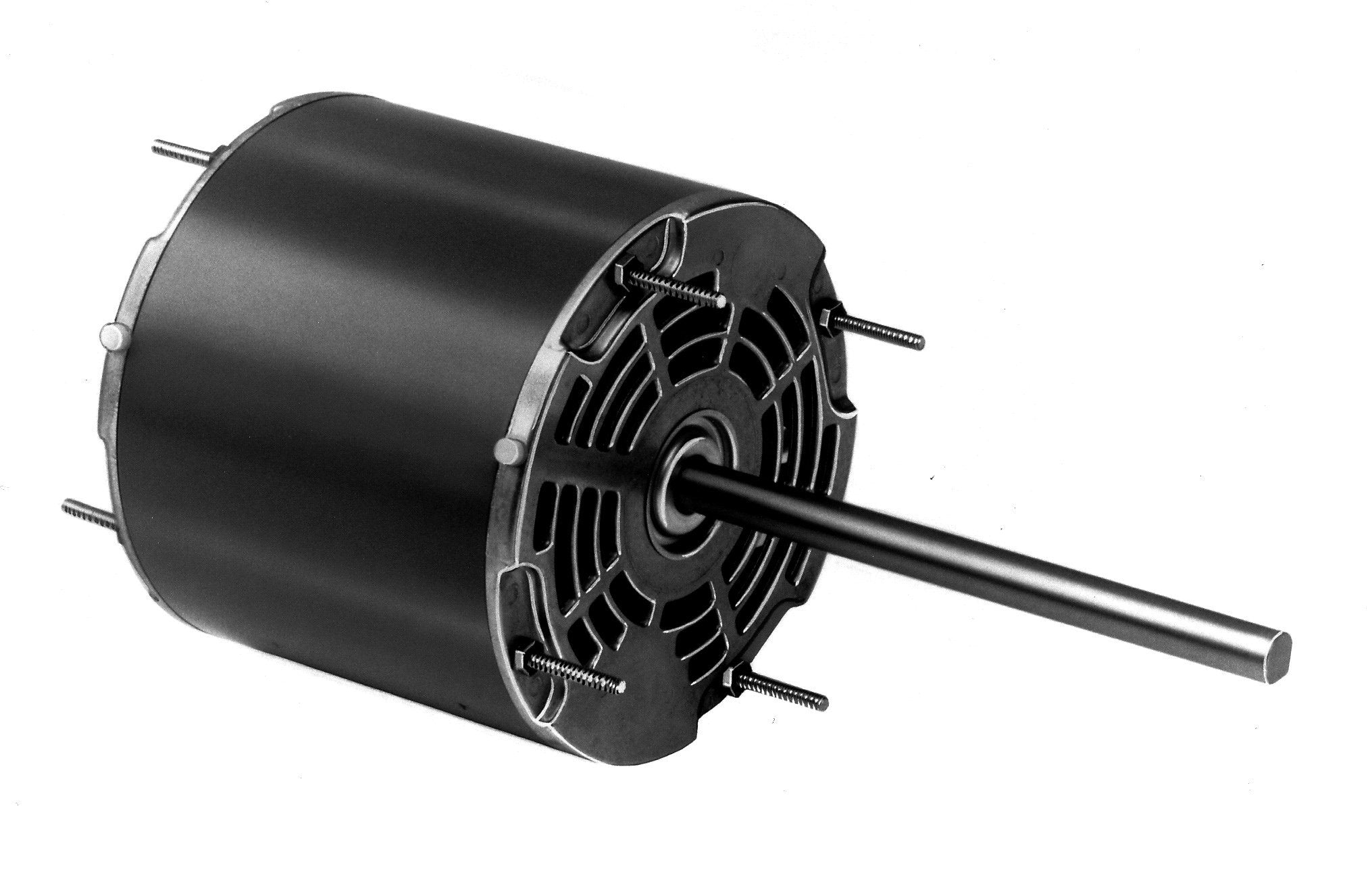

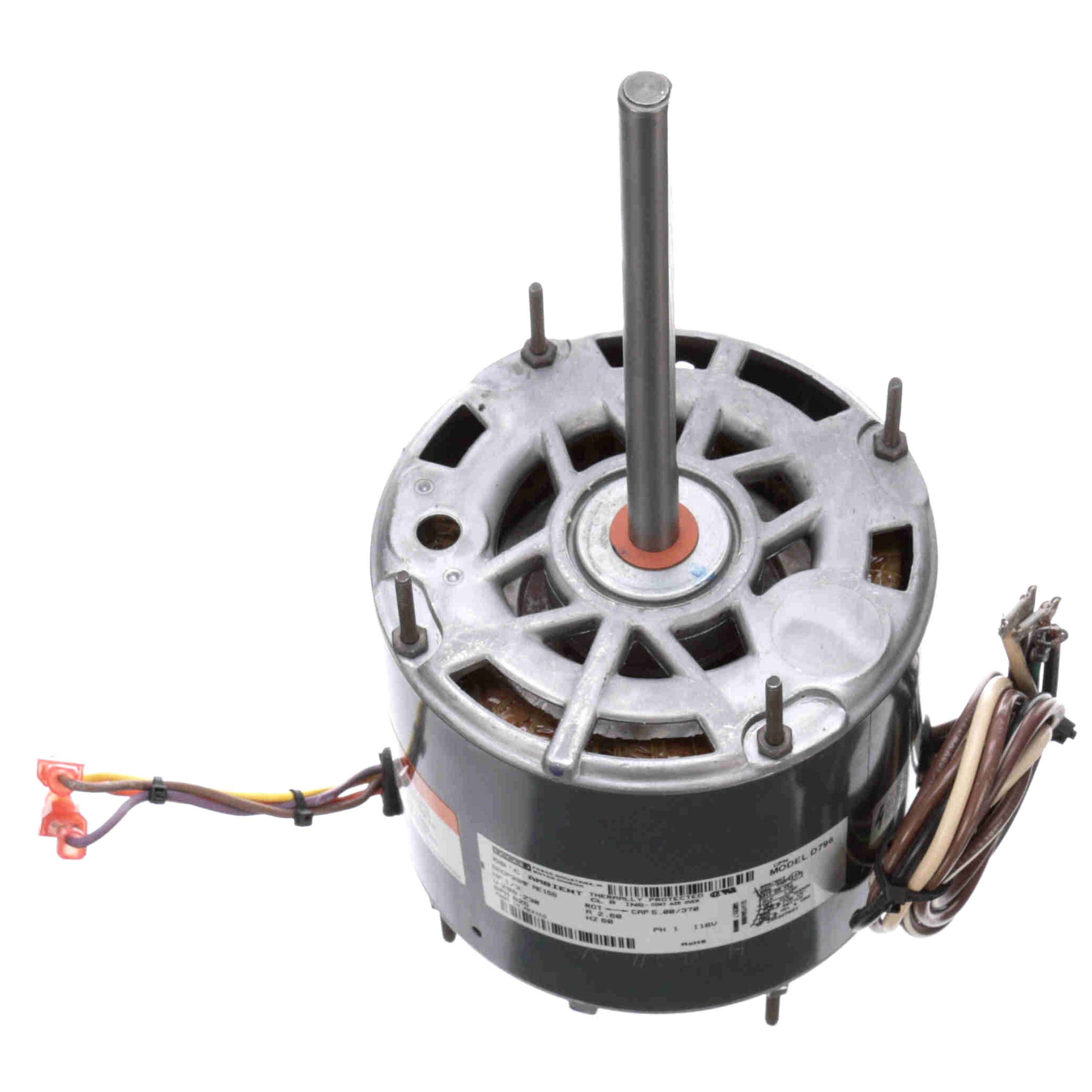

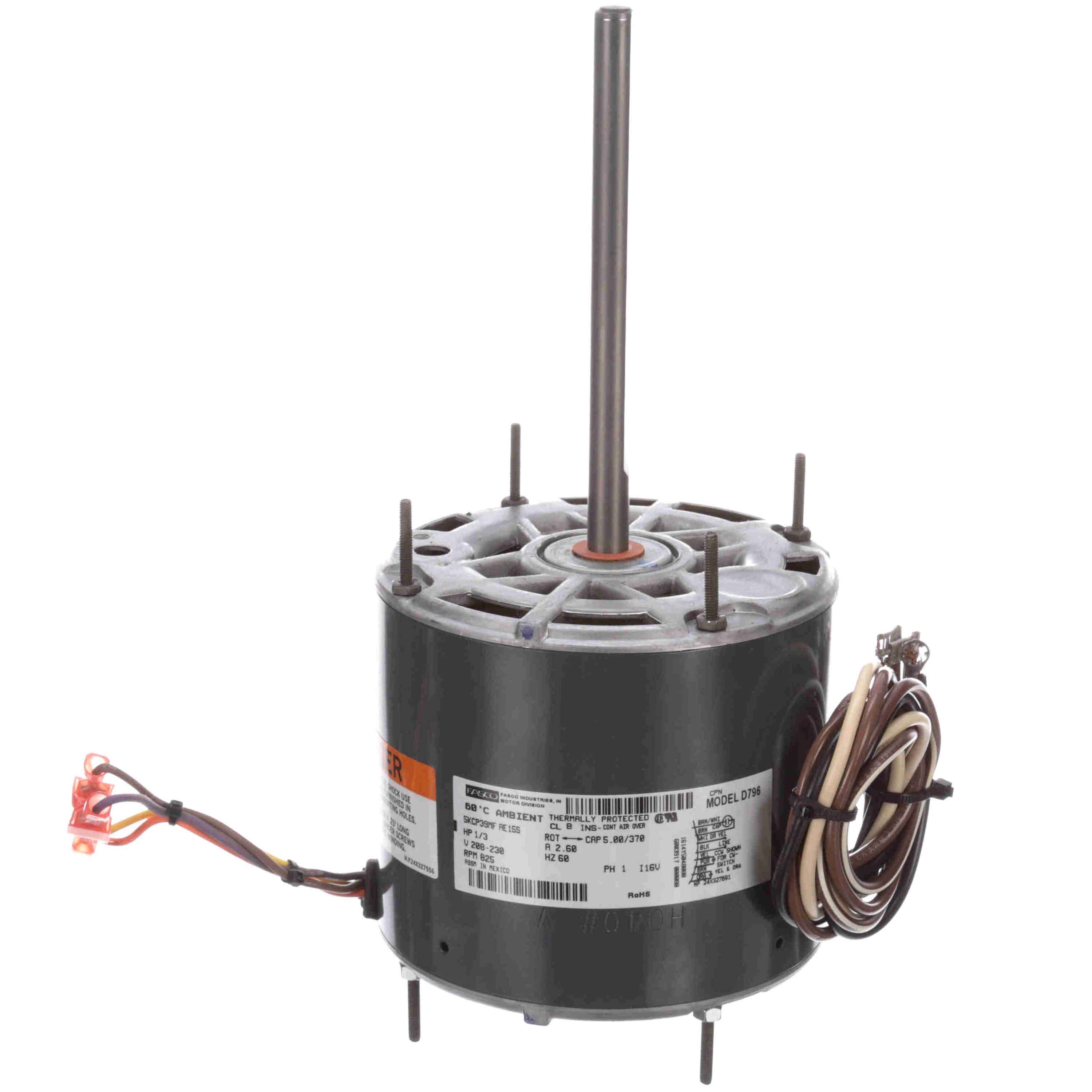

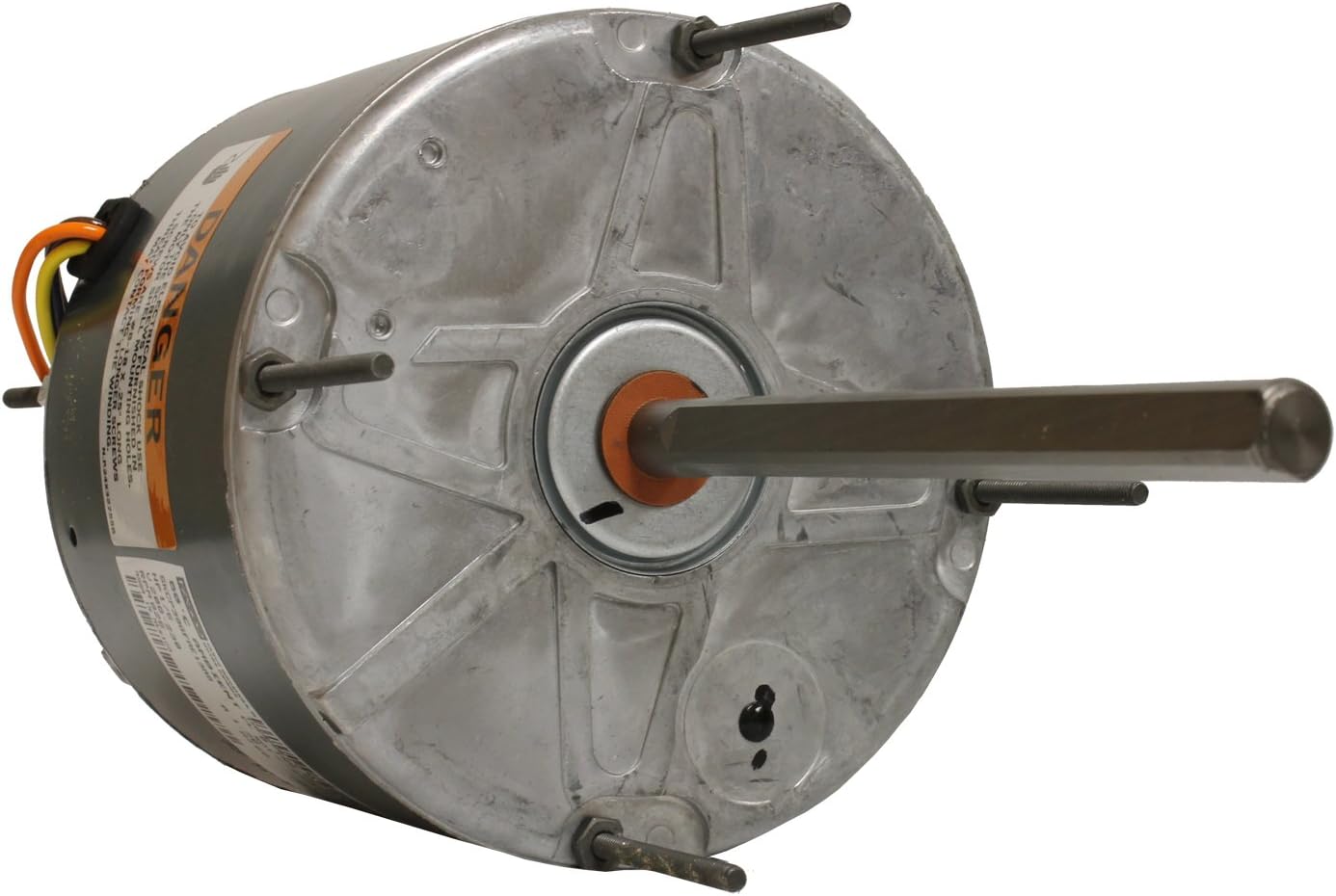

Fasco D796 Condenser Fan Motor 1/3HP 5.6 Inch Frame

Product Description

The Fasco D796 is a condenser fan motor designed for HVAC applications. This motor features a five point six inch frame and operates at one third horsepower with a speed of eight hundred twenty-five RPM. It requires two hundred eight to two hundred thirty volts, sixty hertz, and two point six amps for efficient performance.

• Open Ventilated design for improved heat dissipation
• Permanent Split Capacitor for consistent operation
• Reversible rotation for flexible installation

Product Highlights

Reliable for condenser fan applications, this motor is ideal for HVAC-R systems. Its sleeve bearing design ensures smooth operation while maintaining durability.

Product Information

Standard Information

• Brand: Fasco
• Type: Condenser Fan Motor

Technical Specifications

• Horsepower: 0.33 hp
• RPM: 825
• Voltage: 208-230V
• Frequency: 60Hz
• Amperage: 2.6
• Bearing: Sleeve Bearing
• Electrical Type: Permanent Split Capacitor
• Phase: Single
• Rotation: Reversible
• Overload: Thermally Protected
• Material: Rolled Steel
• Mounting: Extended Studs
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6.42 inches
• Insulation Class: B
• Max Ambient Temperature: 104°F
• Weight: 4 pounds
• Size: 5.6 inches frame
