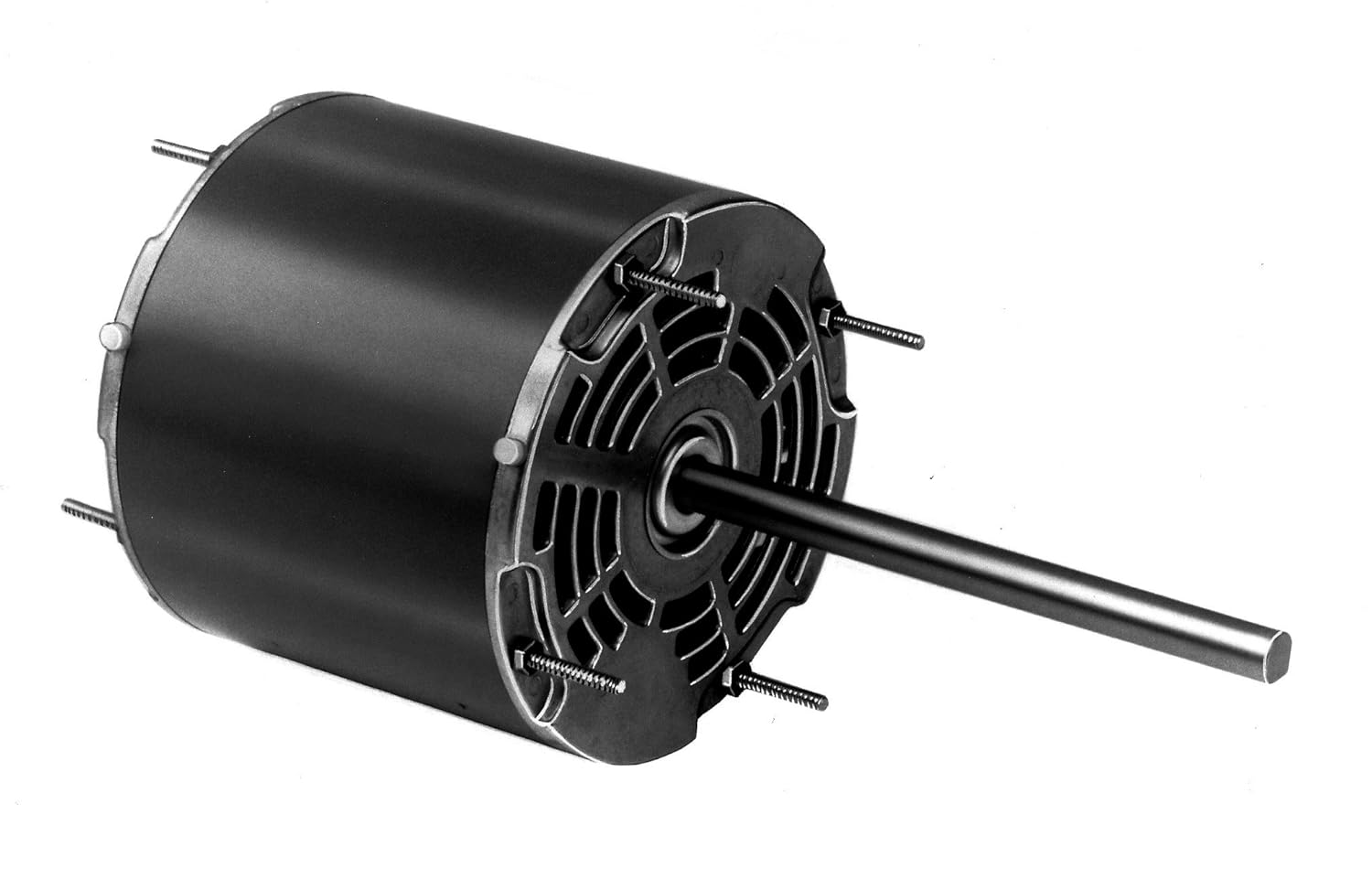

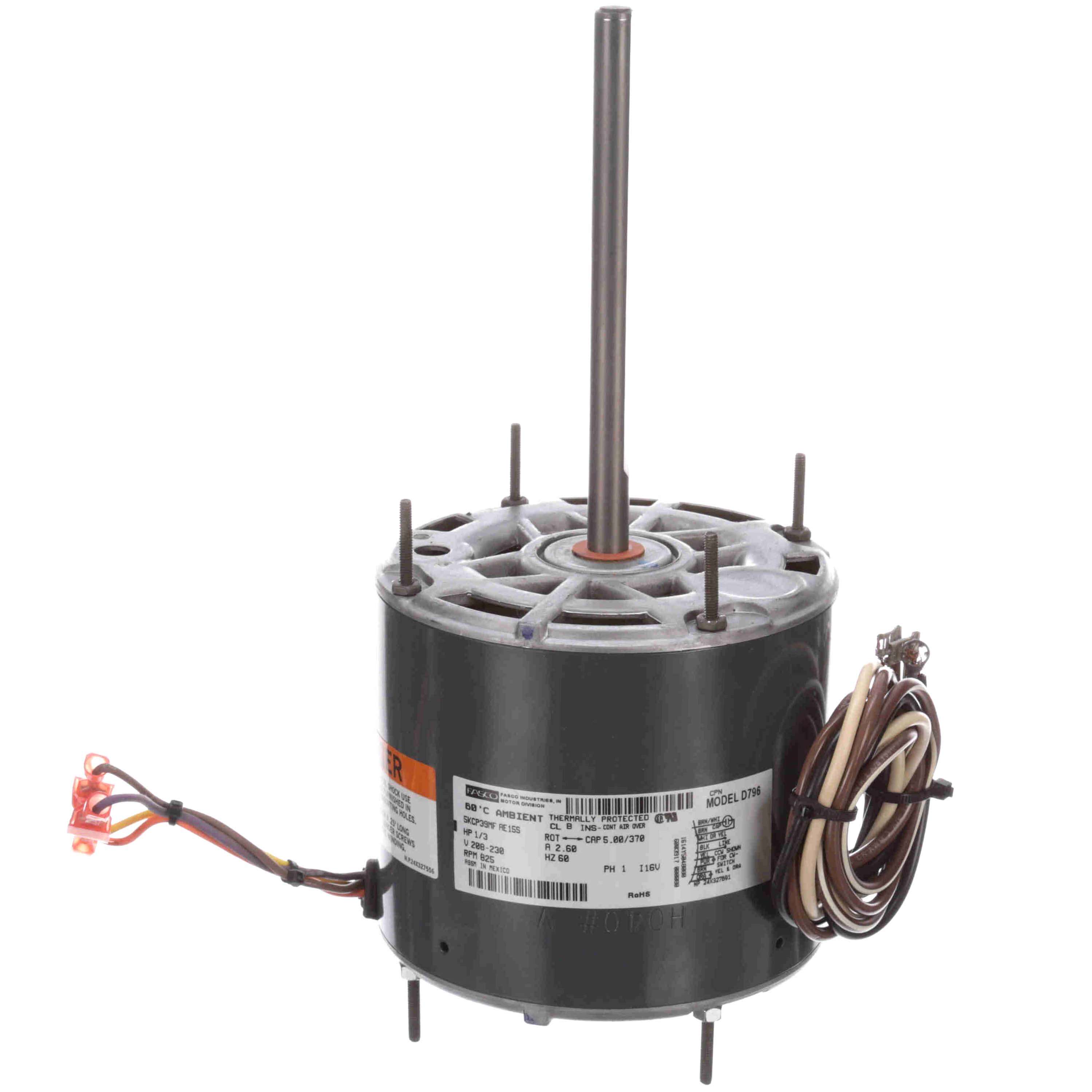

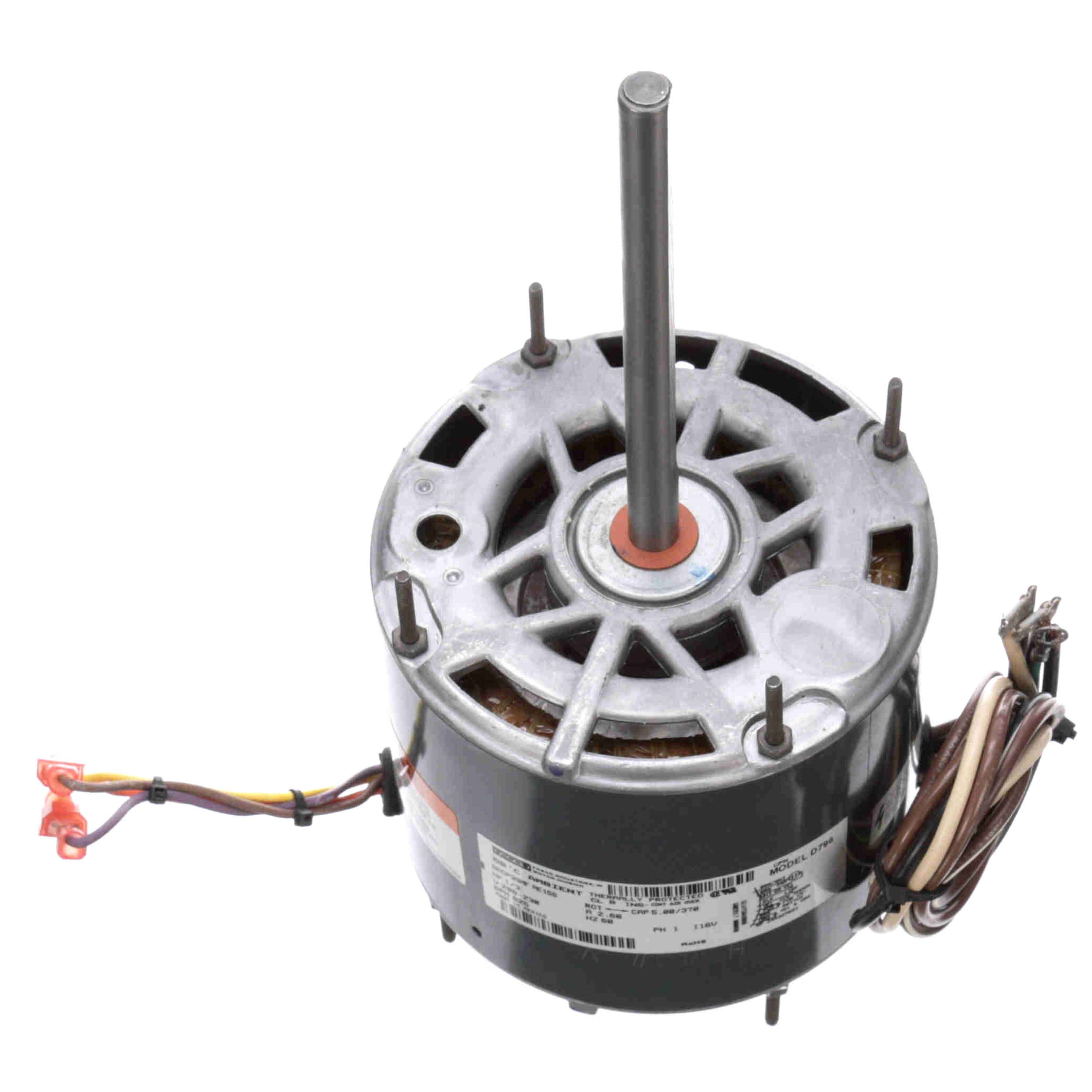

Fasco D796 Condenser Fan Motor 208-230V 1/3 HP 825 RPM

Product Description

The Fasco D796 Condenser Fan Motor is designed for consistent and reliable performance. This motor features a 5.6 frame size and operates with a 1/3 HP rating at 825 RPM speed. It is powered by 208-230V and has a permanent split capacitor design with a reversible rotation.

• 5.6 frame size
• 1/3 HP
• 825 RPM speed

Product Highlights

This motor is perfect for condenser fan applications, ensuring efficient and effective airflow. It is designed with a sleeve bearing and has an open air-over enclosure, making it suitable for various installation environments.

Product Information

Standard Information

• Brand: Fasco
• Model: D796

Technical Specifications

• Frame Size: 48
• Phase: Single
• Voltage: 208-230V
• Amperage: 2.6A
• RPM: 825
• Rotation: Reversible
• Thermal Protection: Thermally Protected
• Diameter: 5.6 inches
• Shaft Type: Double Flat
• Shaft Extension: 6.42 inches
• Material: Rolled Steel
• Insulation Class: B
• Mounting Type: Extended Studs
• Frequency: 60Hz
• Duty: Continuous Air Over
• Bearings Type: Sleeve
