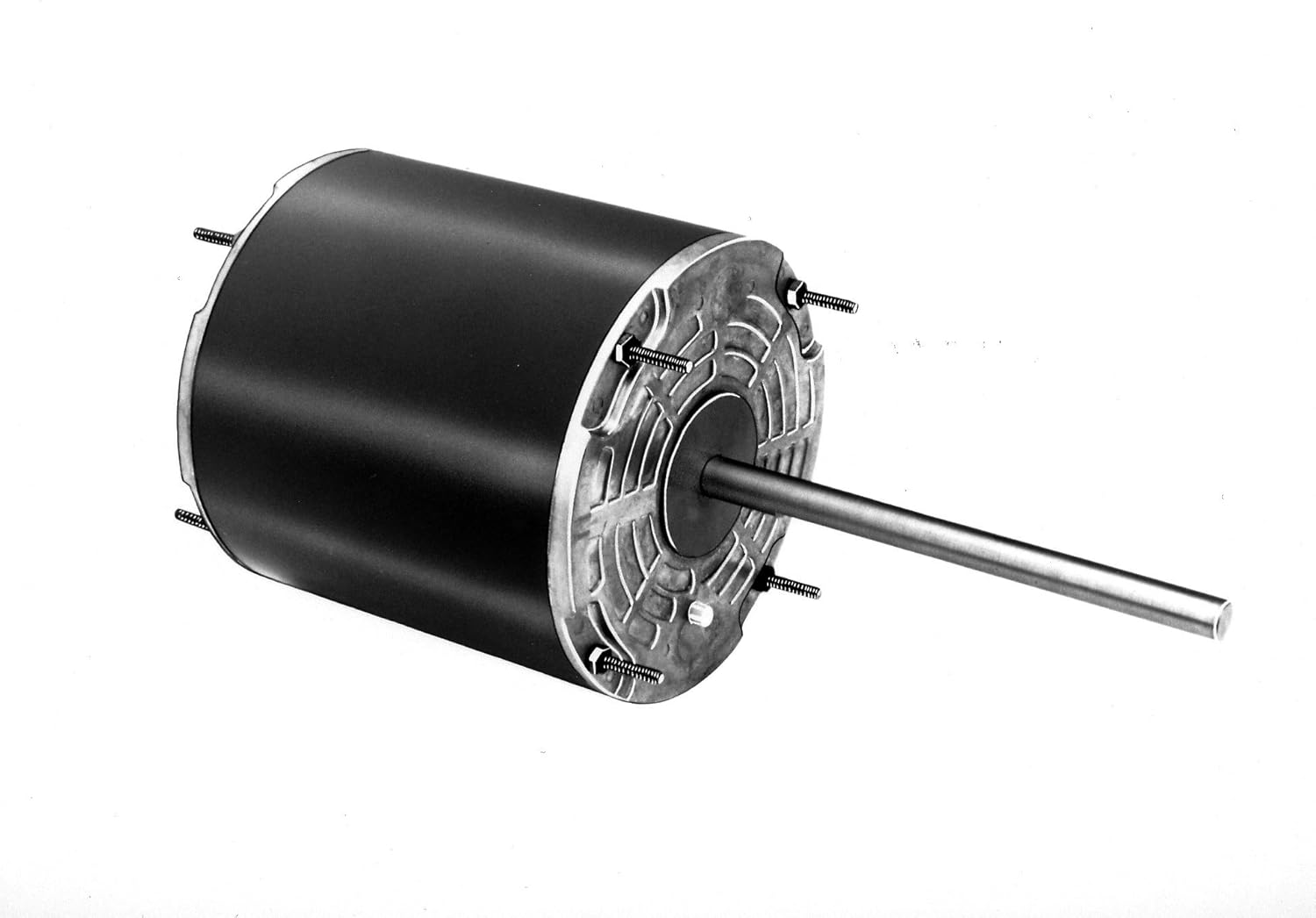

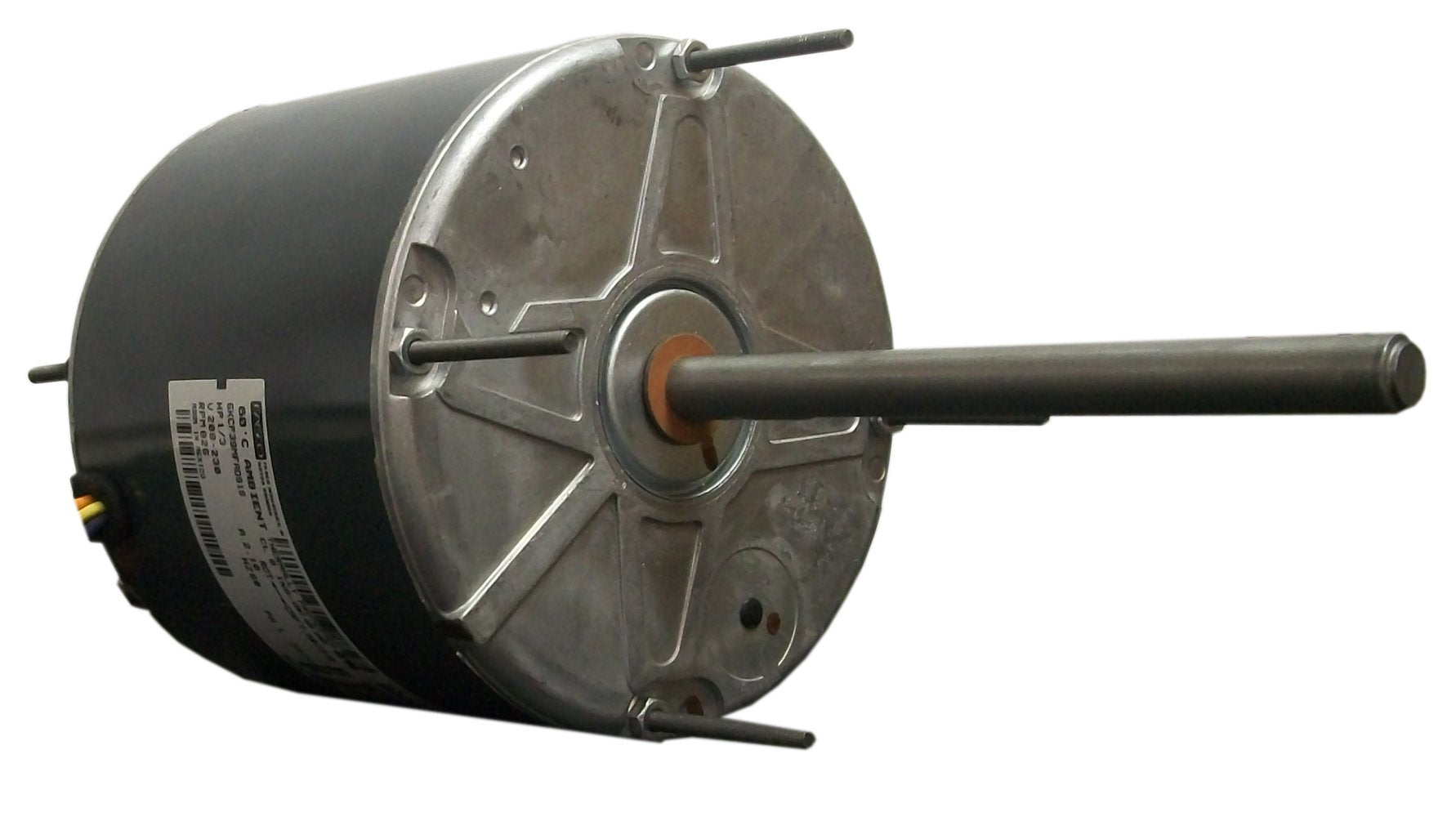

Fasco D791 Condenser Fan Motor 1/3 HP 825 RPM 208-230V

Product Description

The Fasco D791 is a permanent split capacitor condenser fan motor with a rated horsepower of one-third. This motor operates at 825 RPM and is designed for use in HVAC systems. It is suitable for applications requiring reversible rotation and features ball bearings for improved performance.

• Power: 1/3 HP
• Voltage: 208-230V
• Current: 2.6 Amps

Product Highlights

The Fasco D791 provides reliable operation and is thermally protected, making it ideal for continuous duty applications.

Product Information

Standard Information

• Brand: Fasco
• Model Number: D791

Technical Specifications

• Frame Size: 48Z
• Diameter: 5.6 inches
• Speed: 825 RPM
• Phase: Single
• Service Factor: 1
• Insulation Class: B
• Bearings Type: Ball
• Mounting Type: Extended Studs
• Shaft Type: Double Flat
• Overload Protection: Thermally Protected
