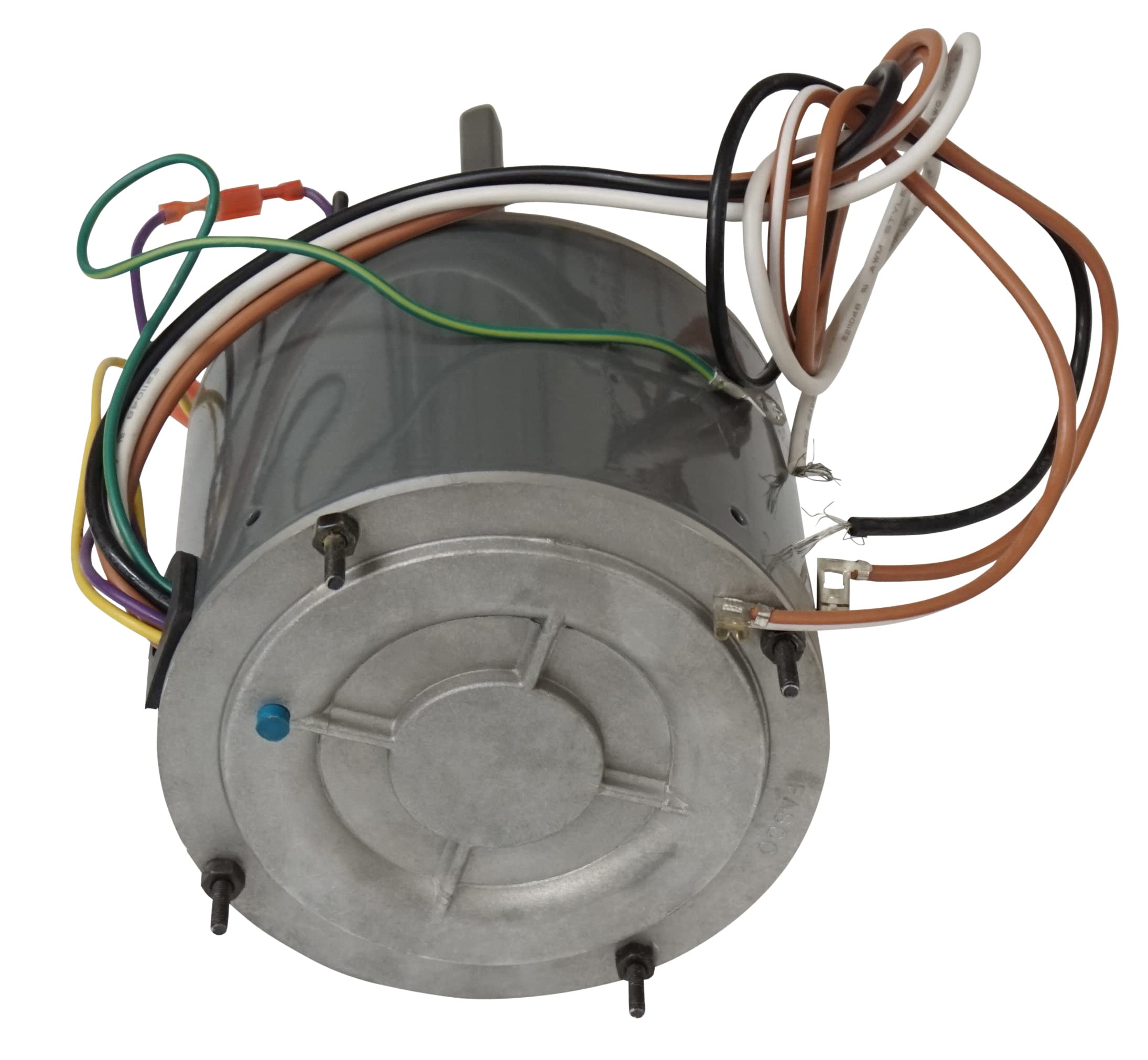

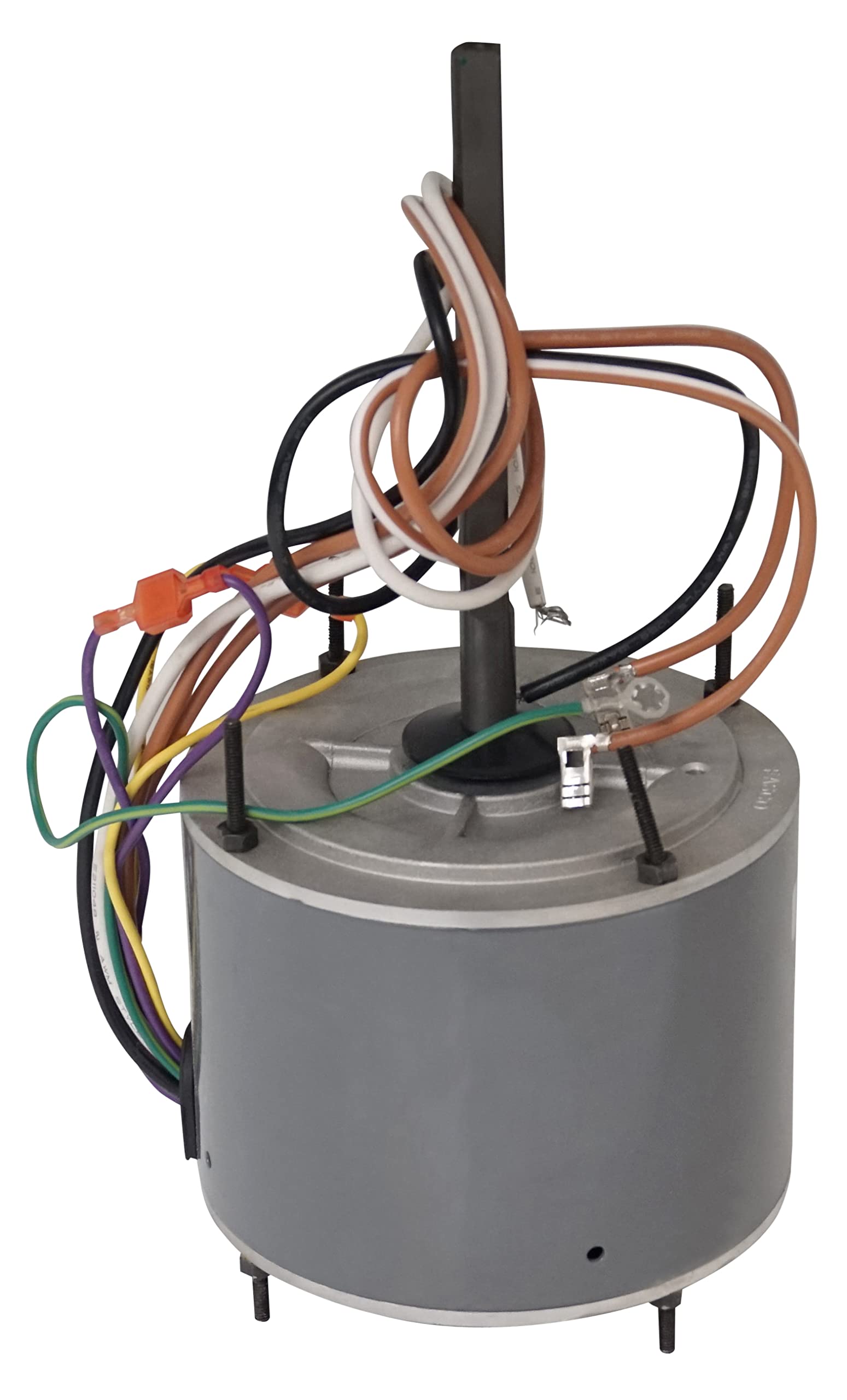

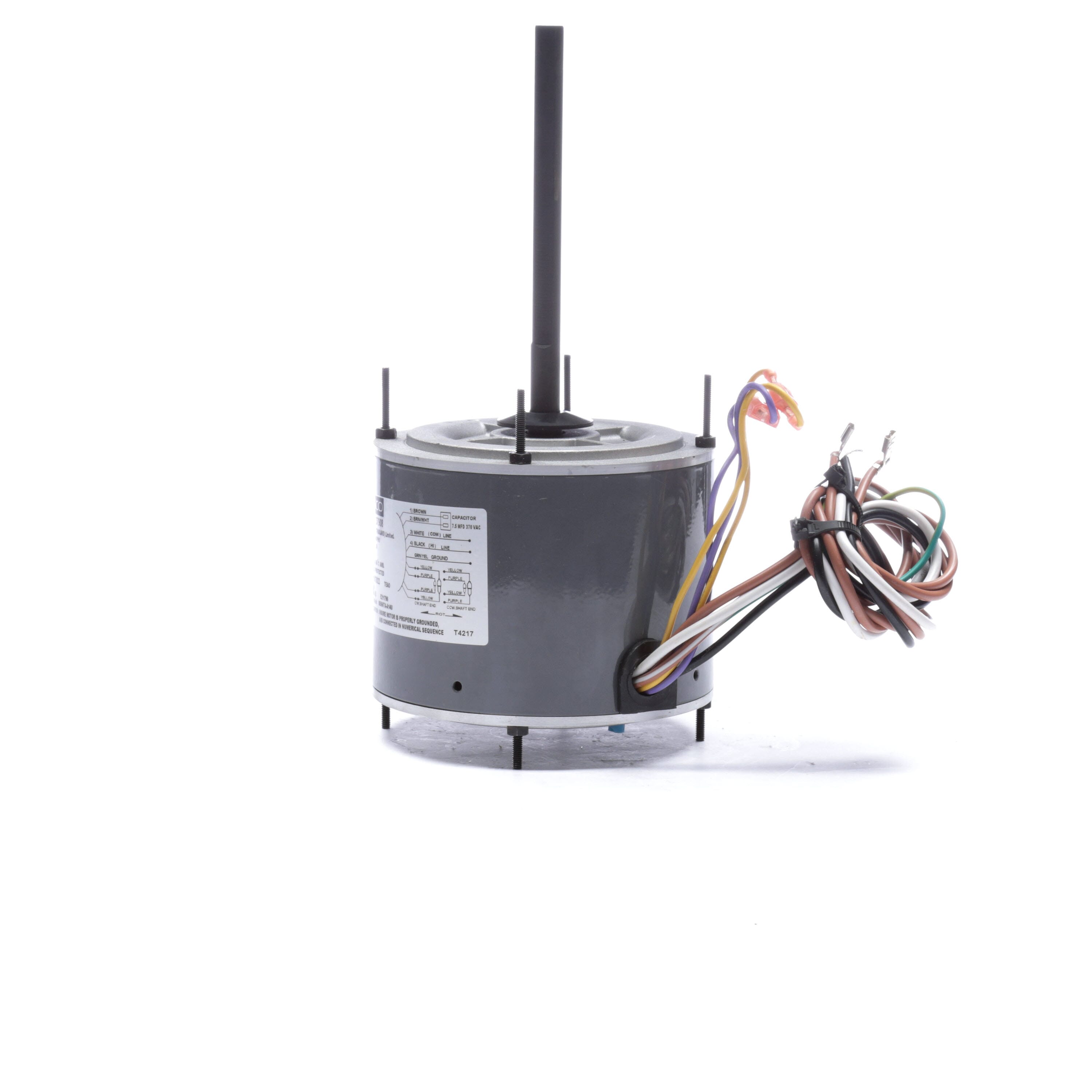

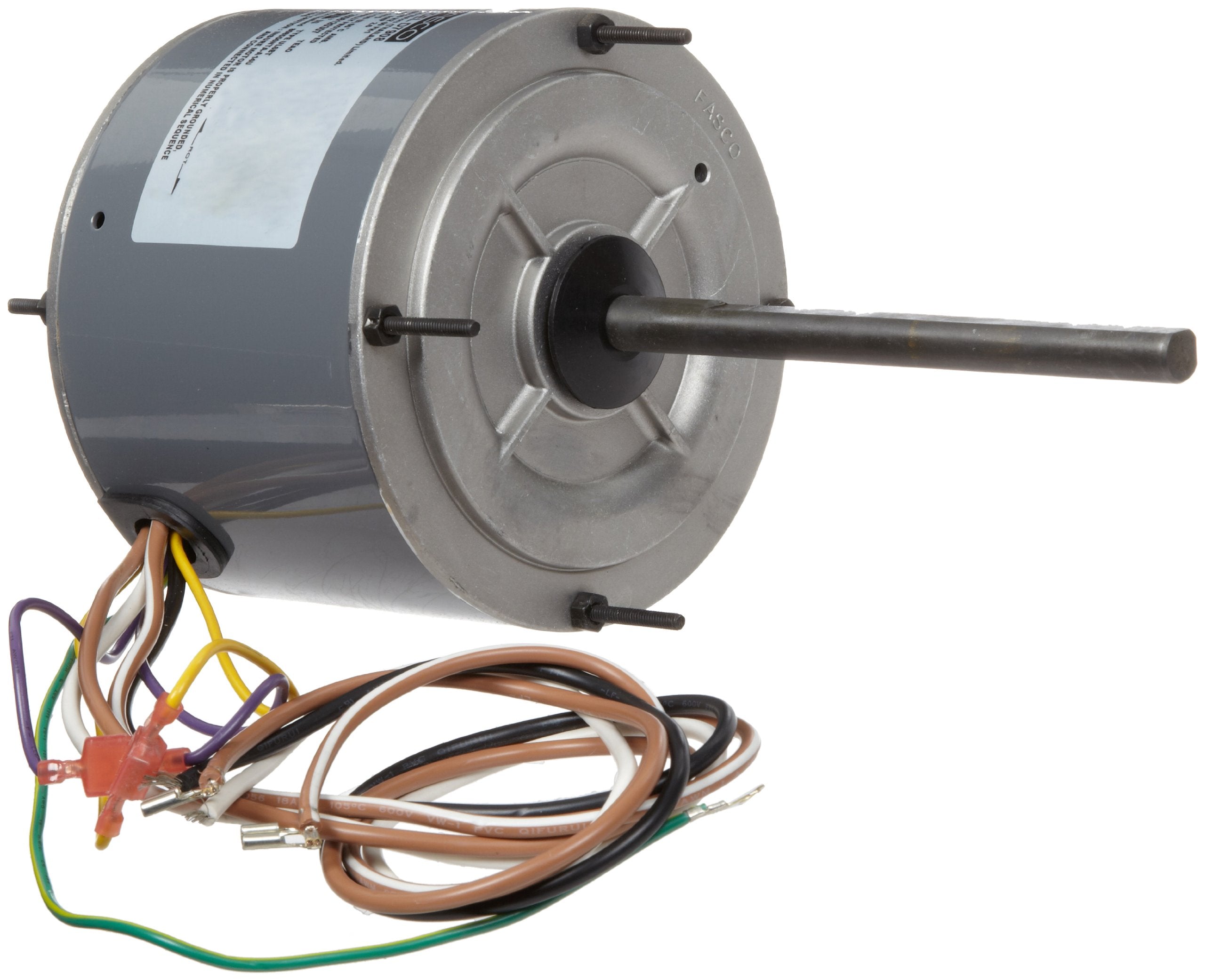

Fasco D7908 Condenser Fan Motor 1/3 hp (5.6-Inch) Replacement D7908

Product Description

The FASCO D7908 5.6-Inch Condenser Fan Motor is a 1/3 HP motor operating at 208-230 Volts and 1075 RPM. It is totally enclosed with reversible rotation and ball bearing. This motor is thermally protected and UL/CSA certified. It requires a 7.5 Mfd-370 Volts capacitor.

• 5.6-Inch Condenser Fan Motor
• 1/3 HP, 208-230 Volts, 2.6 Amps
• Reversible Rotation, Ball Bearing

Product Highlights

The FASCO D7908 is ideal for condenser fan applications, offering reliable performance with thermal protection and reversible rotation.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D7908
• Country of Origin: Thailand

Technical Specifications

• Speed: 1075 RPM
• Voltage: 208-230 V
• Horsepower: 1/3 HP
• Frequency: 60 Hz
• Amps: 2.6
• Shaft Diameter: 0.500 in
• Shaft Length: 6.5"
• Enclosure Type: Totally Enclosed
• Rotation: Reversible
• Bearings: Ball
• Phase: 1
• Thermal Protection: Automatic
• Insulation Class: B
• Mounting: Extended Studs
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Double Flat
• Shaft Extension: 6.50 in
• RPM: 1075
• Hertz: 60
• Type: Permanent Split Capacitor
• Enclosure: Totally Enclosed Air Over
• Ambient Temperature: 60 C
• Current: 2.6 A
• Service Factor: 1
• Frame: 48
• Duty: Continuous
• Number of Speeds: 1
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Motor Diameter (In.): 5.6
• Motor Length (In.): 4 1/2
• Bolt Circle (In.): 5-6/32 (5.2)
• Agency Approvals: UL, CSA
• Output HP: 1/3 Hp
• Output KW: 0.25 kW
• Frame Length: 4.45 in
• Material: Metal
• Brand: Fasco
