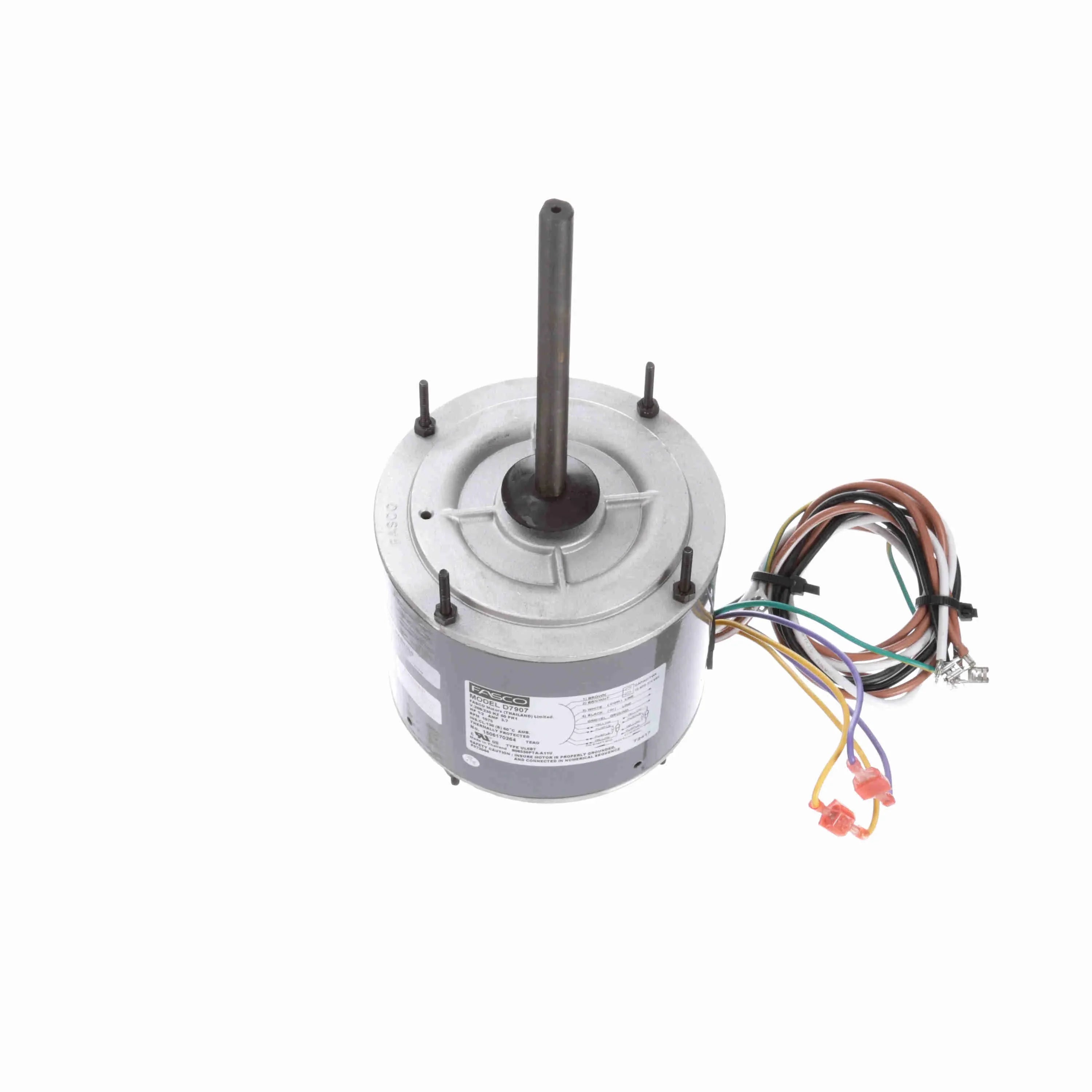

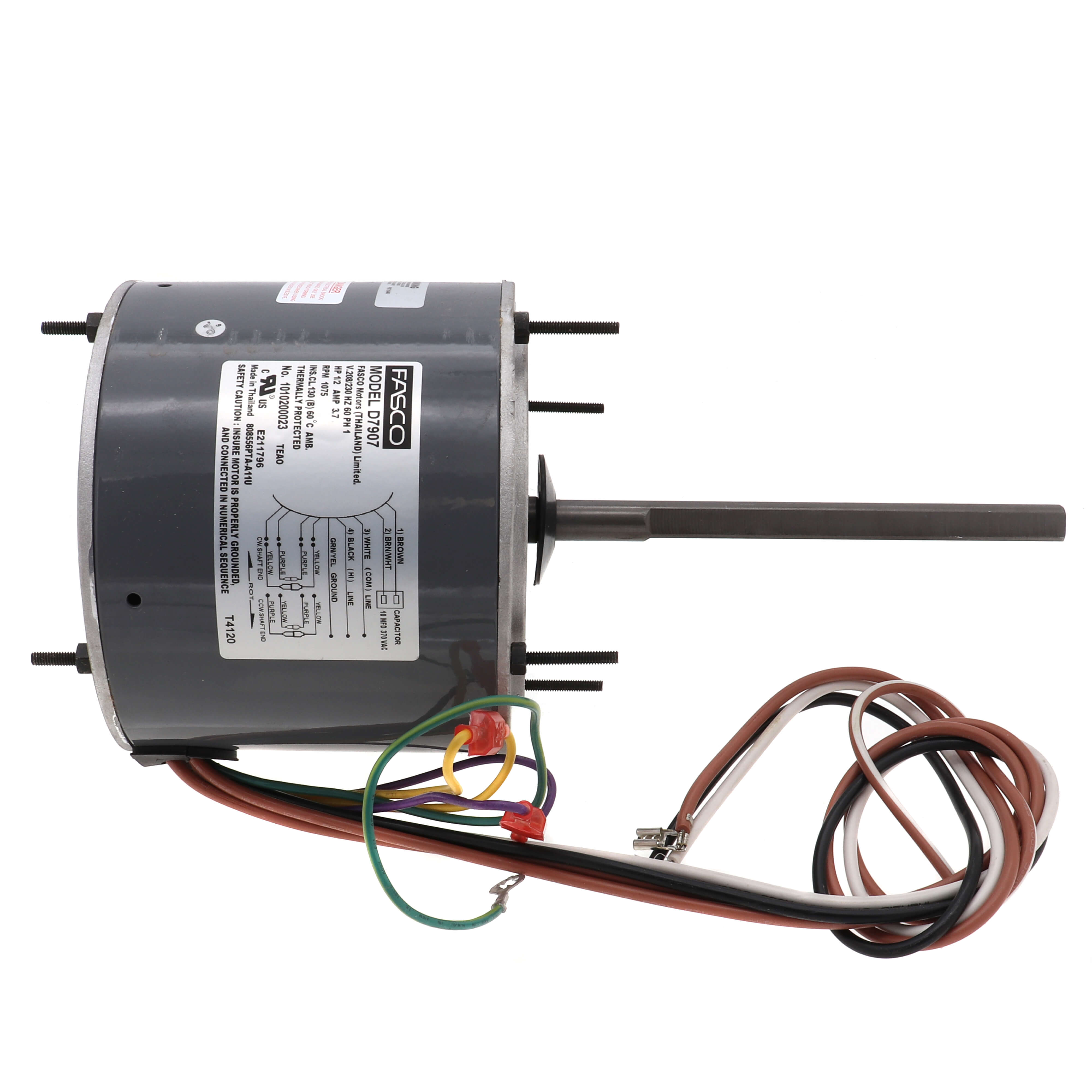

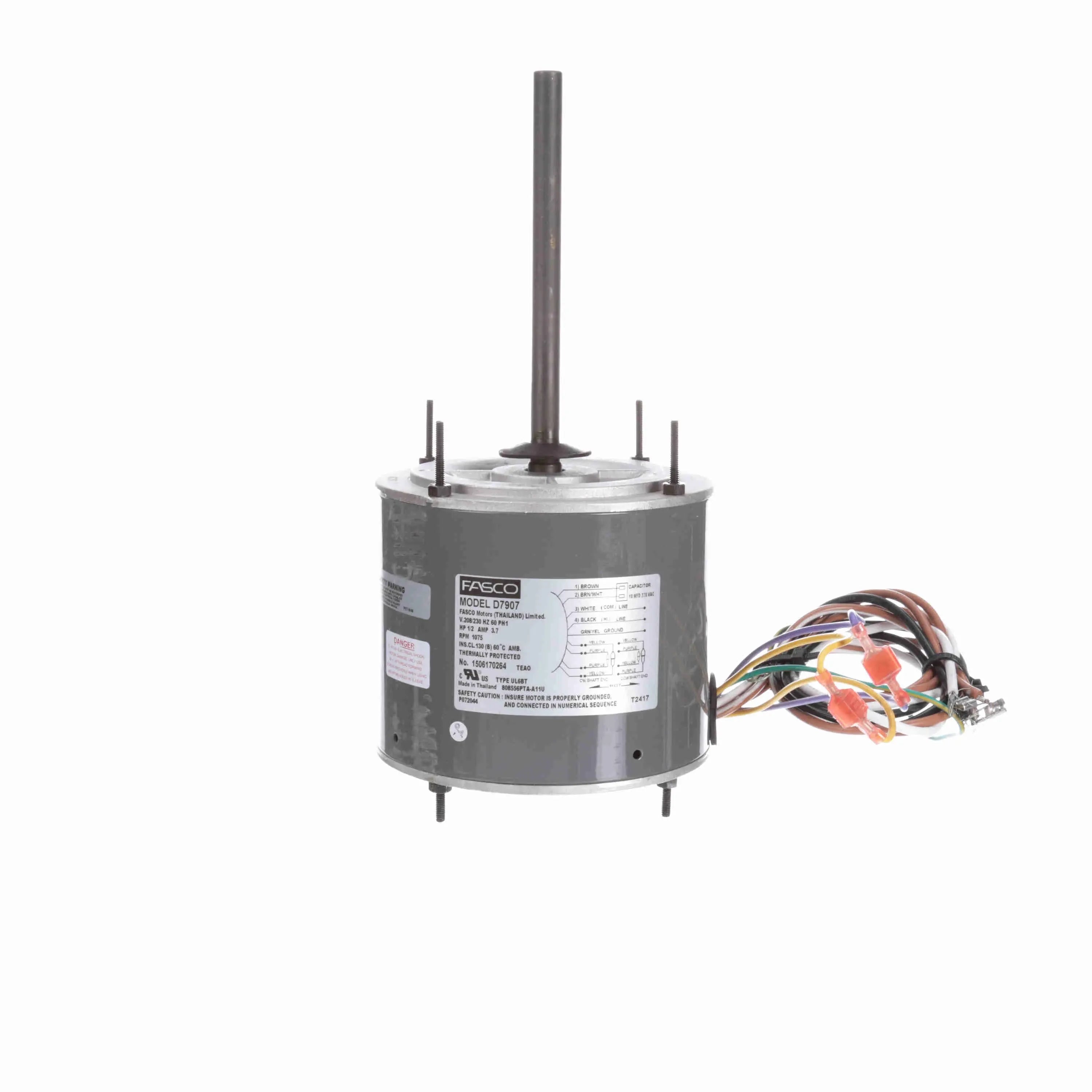

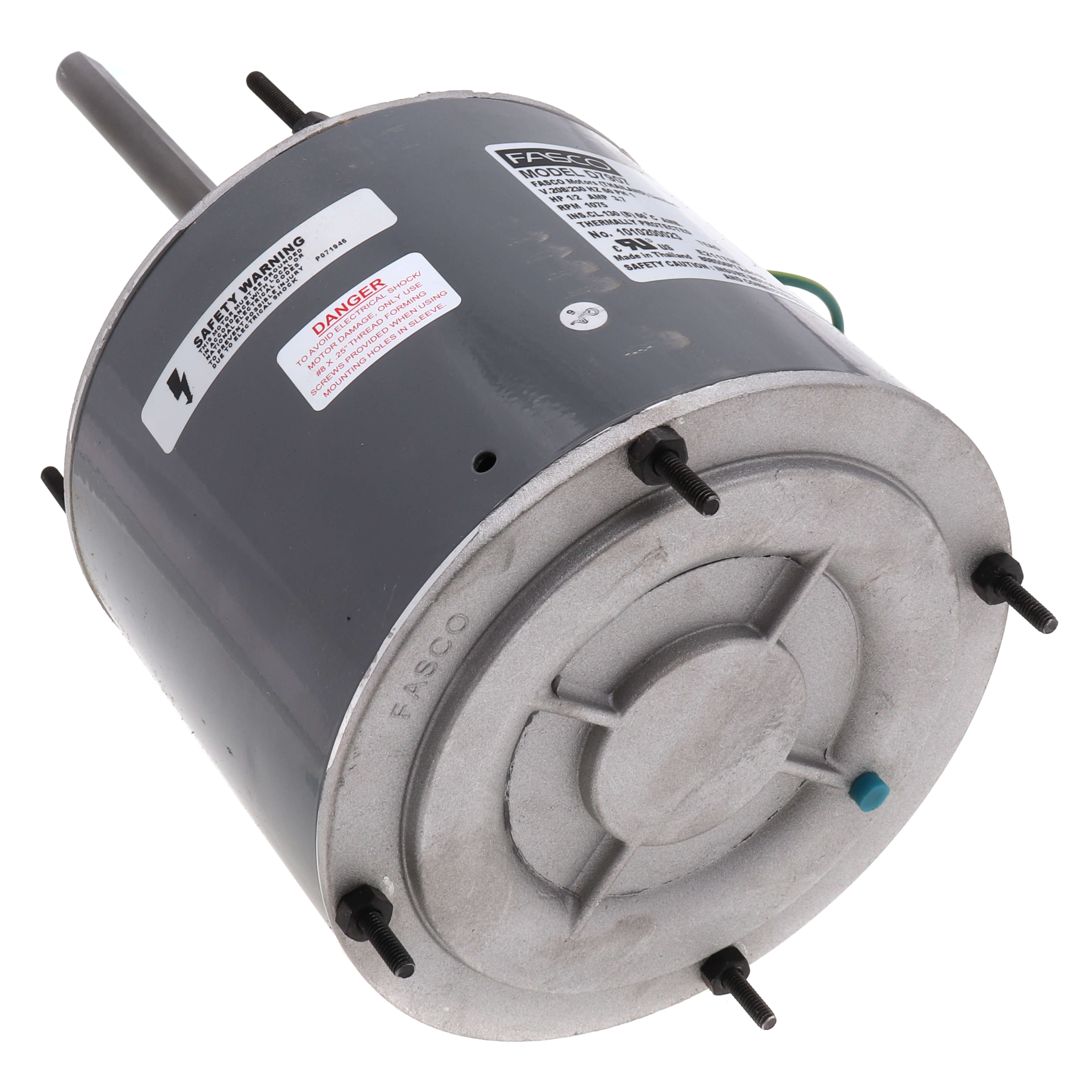

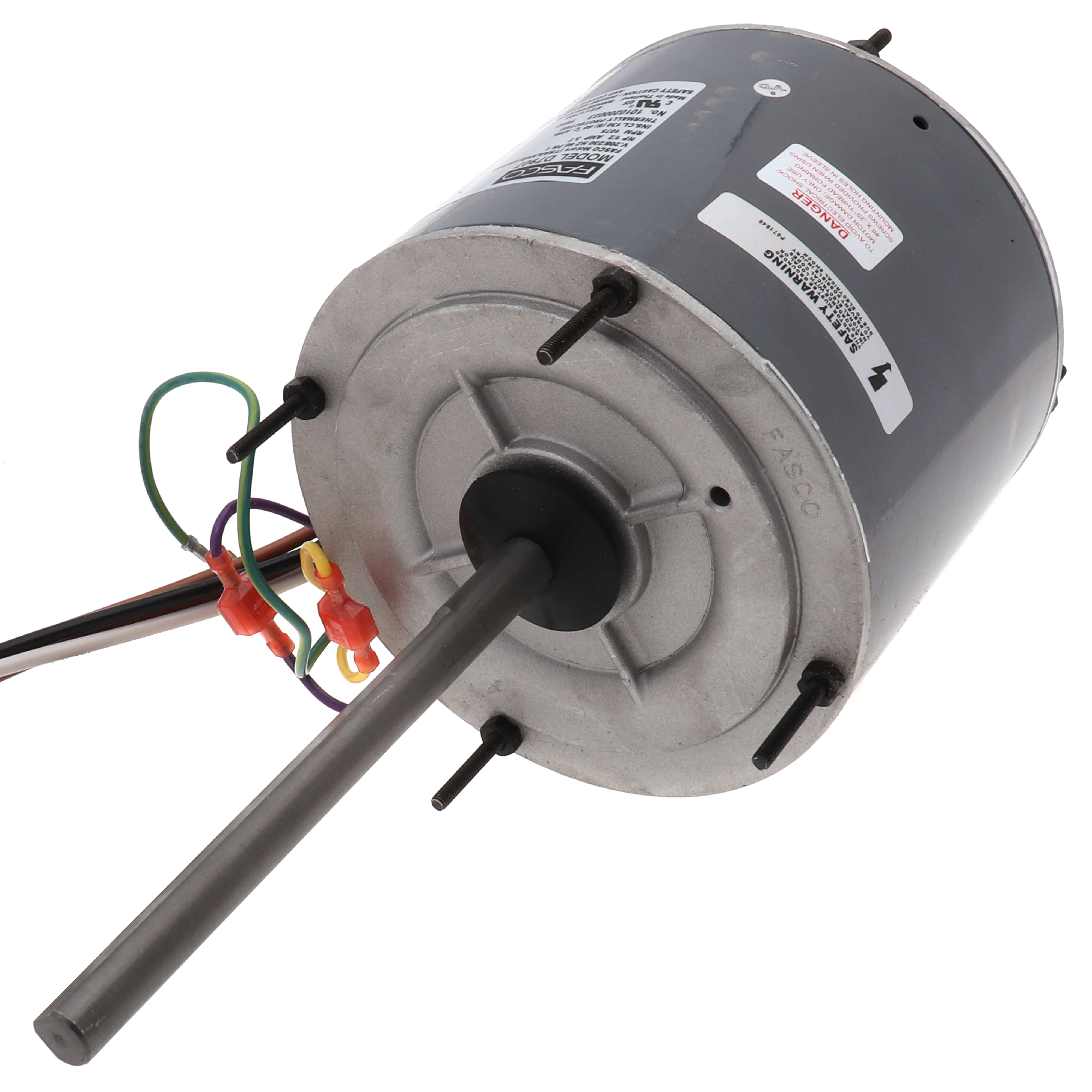

Fasco D7907 Condenser Fan Motor 1/2 HP

Product Description

The Fasco D7907 condenser fan motor is a genuine OEM replacement part. It is rated at 1/2 HP and 1075 RPM for 208-230 volts. The D7907 has a 48Y frame with a 1/2 shaft diameter, totally enclosed enclosure, and ball bearings. This motor is used on outdoor condenser units as part of a central air conditioning systems.

• 5.6" Frame
• Totally Enclosed
• Permanent Split Capacitor

Product Highlights

The Fasco D7907 is a 1/2 HP condenser fan motor with a speed of 1075 RPM and voltage of 208-230V.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D7907
• Country of Origin: USA

Technical Specifications

• Voltage: 230 Volts
• Horsepower: 0.5 hp
• Speed: 1075 RPM
• Certification: Csa, Ul
• HP: 1/2
• Volts: 208-230
• RPM: 1075
• Requires: 10M370V Capacitor
• Motor Type: Permanent Split Capacitor
• Amps: 3.70
• Hz: 60
• Phase: Single Phase
• Overload: Automatic
• Speeds: 1
• Rotation: Reversible
• Bearings: Ball
• Enclosure Type: Totally Enclosed
• Frame: 48
• Diameter (In.): 5
• Shaft Length (In.): 6-1/2
• Full Load Amps: 3.7
• Mounting Type: Extended Studs
• Shaft Diameter: 0.5" (1/2")
• Duty: Continuous (S1)
• Insulation Class: B
• Enclosure: Totally Enclosed Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 60
