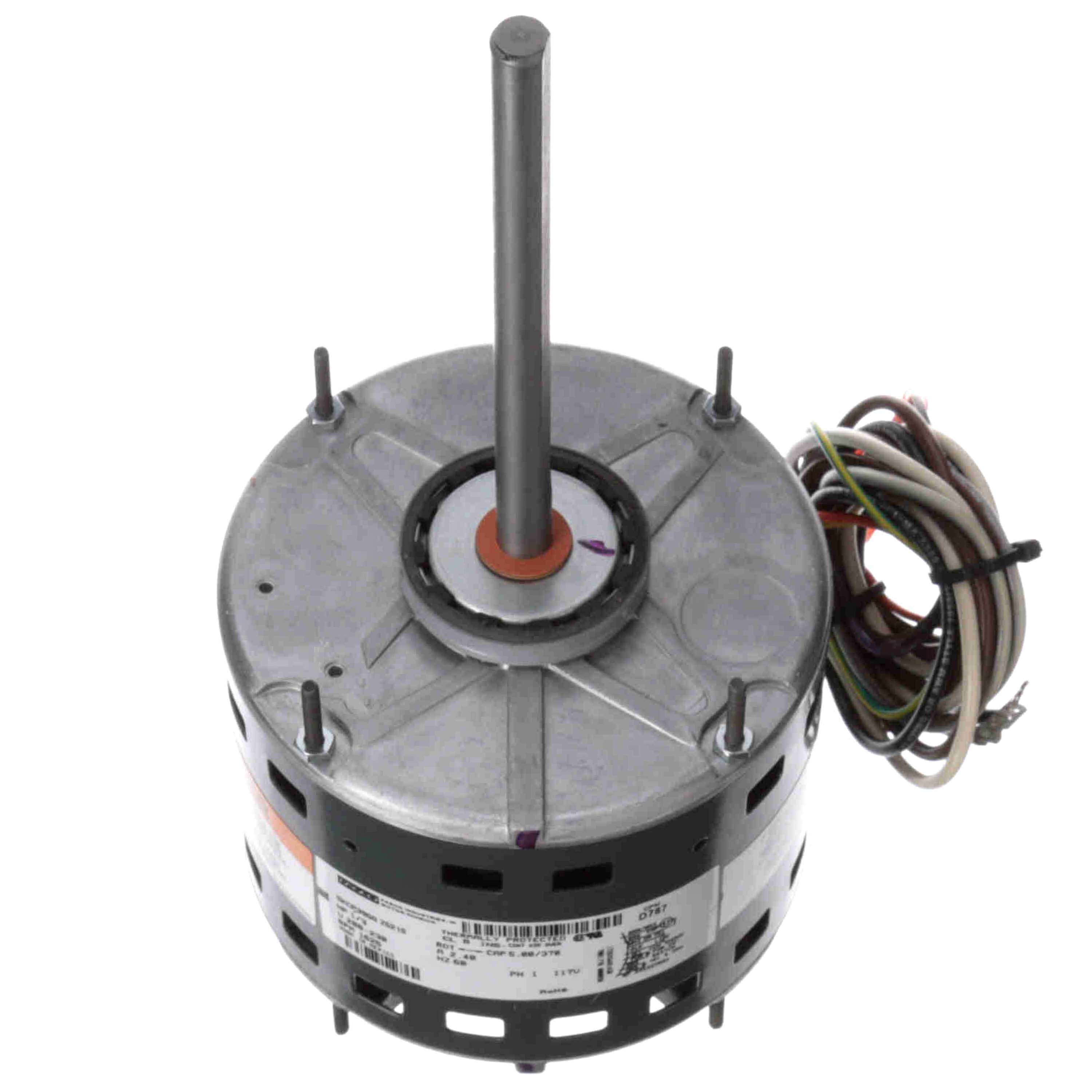

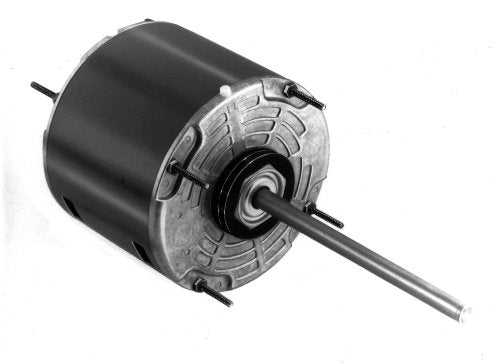

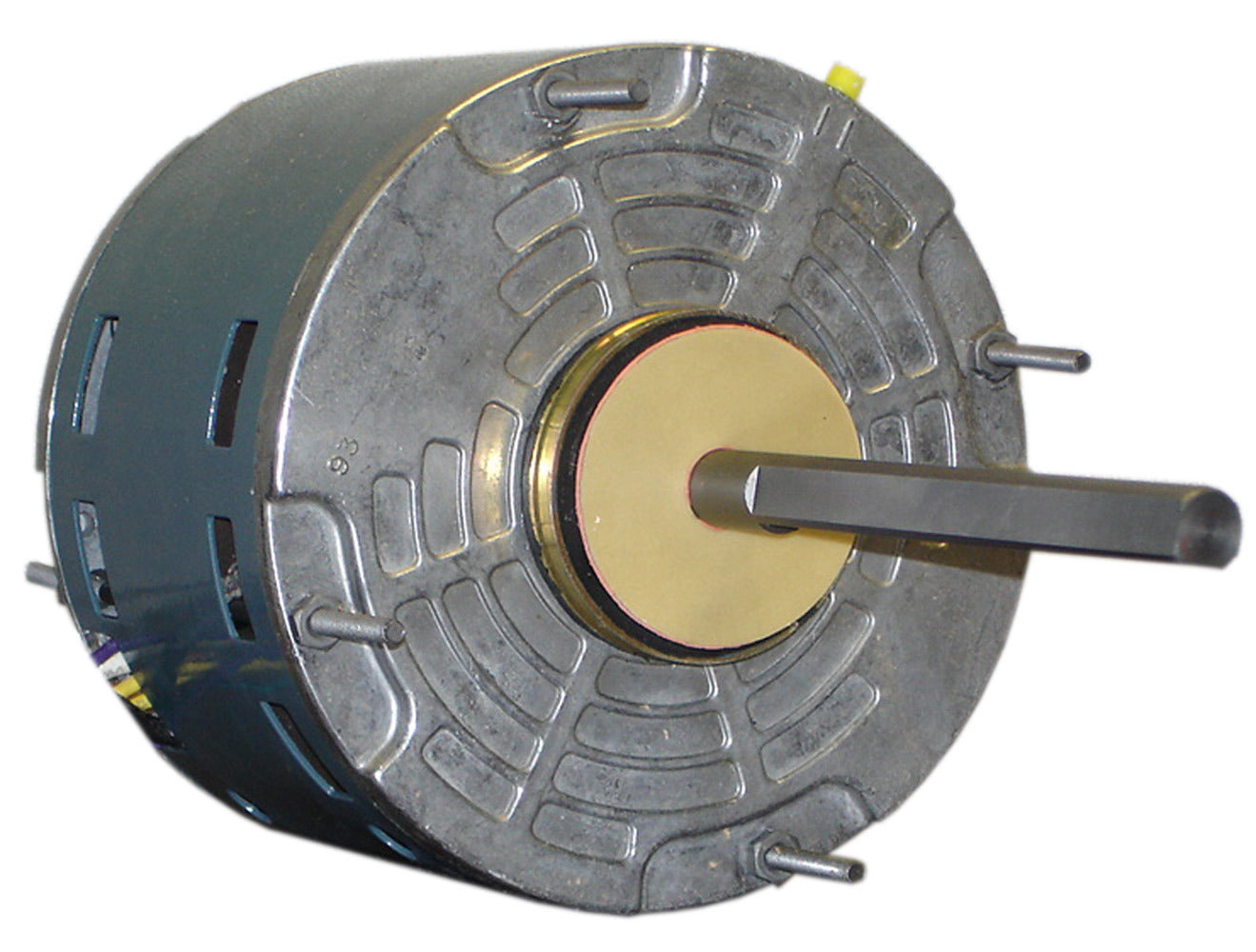

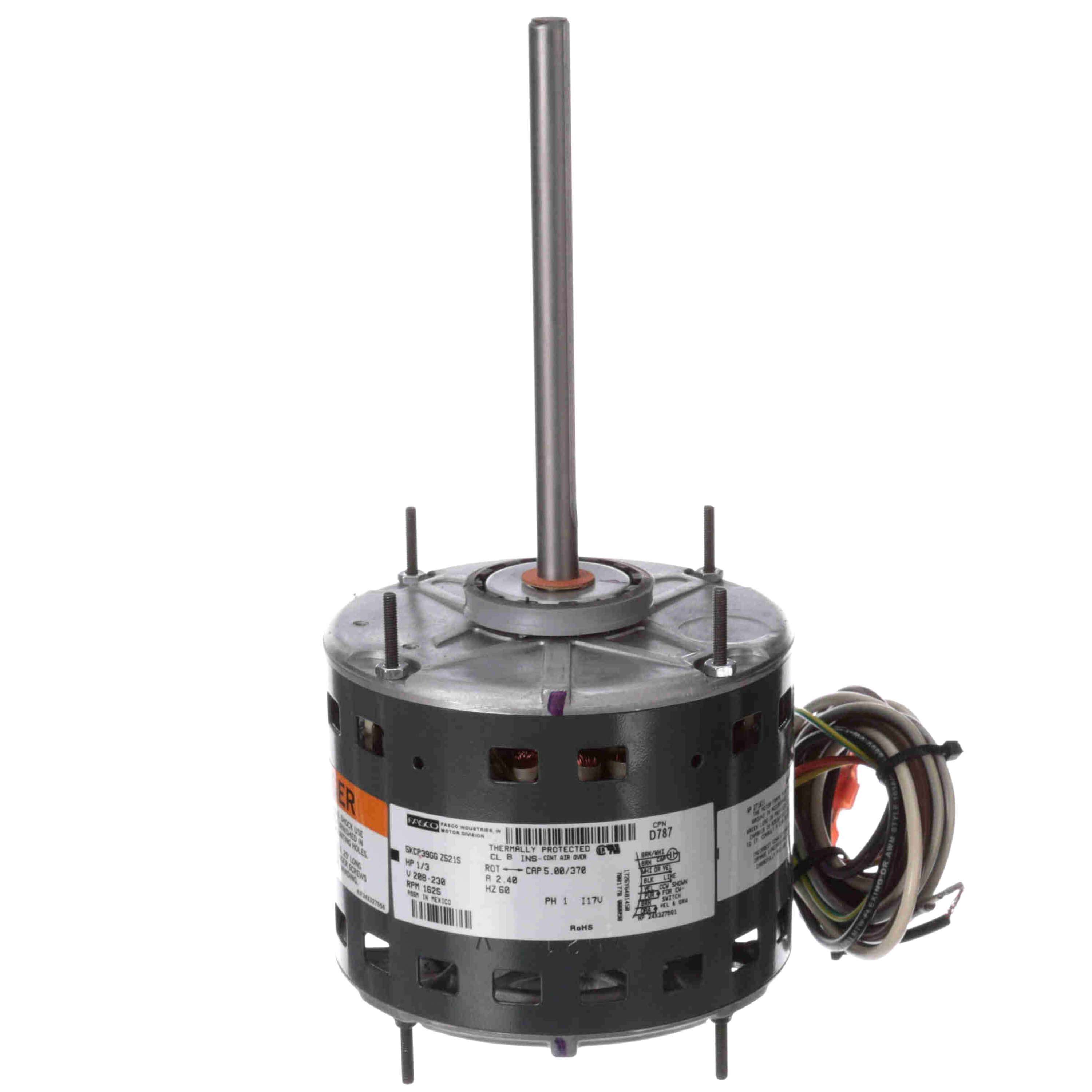

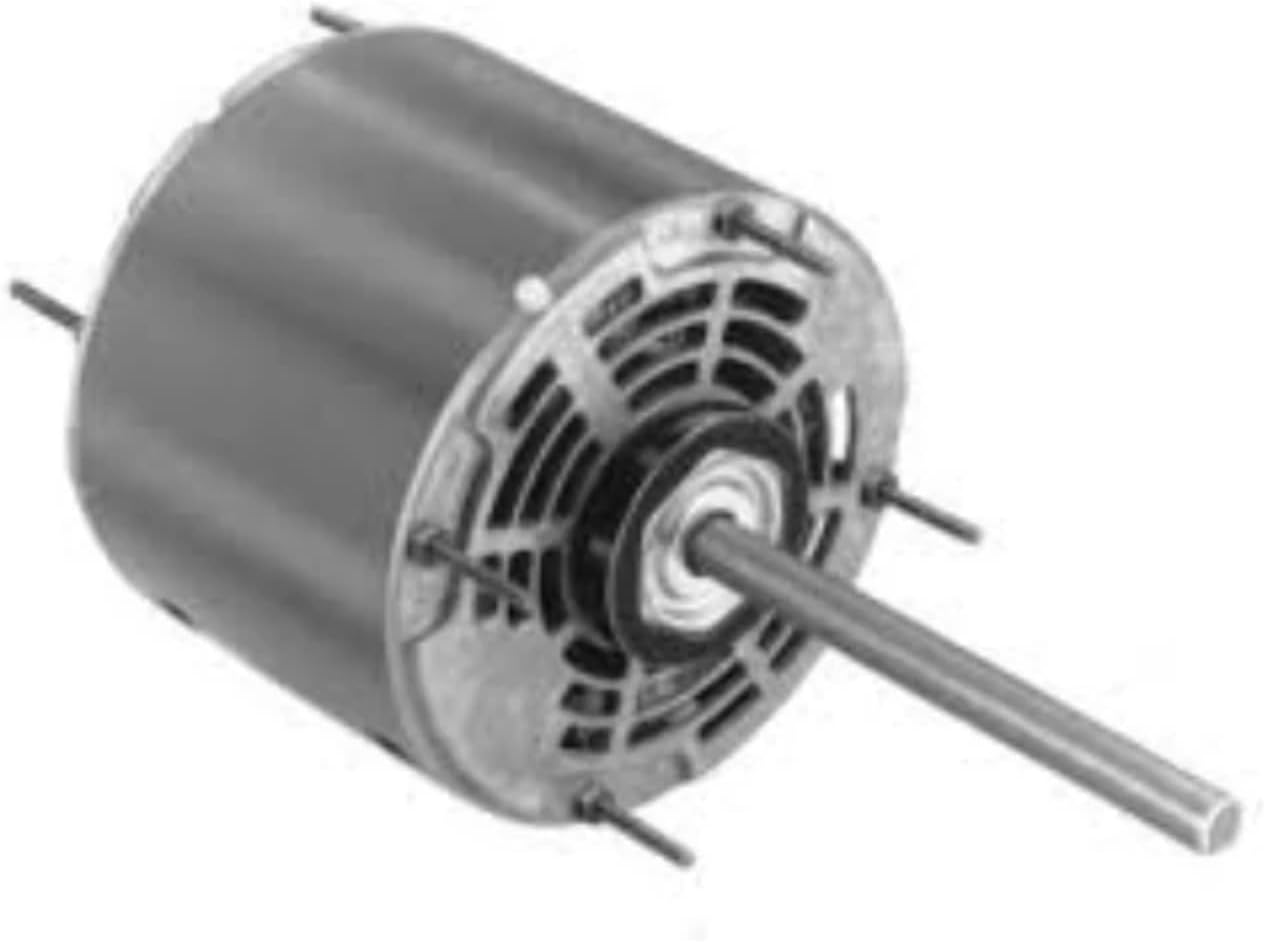

Fasco D787 Motor 1/3HP 1625RPM 230 Volts 5.6 Diameter

Product Description

The Fasco D787 Motor is a dependable solution for various HVAC applications. This motor provides the necessary power for window air conditioners, condenser fans, and direct drive blowers. Its thermally protected design ensures reliable operation and longevity.

• Thermally protected
• Reversible rotation
• UL recognized

Product Highlights

Fasco D787 Motor offers 1/3 horsepower with 1625 RPM. It operates on 208-230 volts and features a 5.6-inch diameter frame.

Product Information

Standard Information

• Brand: Fasco
• MPN: D787
• Category: Fan Motors

Technical Specifications

• Speed: 1625 RPM
• Voltage: 230 Volts
• Horsepower: 0.33 hp
• Frame Size: 48Z
• Diameter: 5.6 inches
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Reversible
• Material: Rolled Steel
• Mounting: Resilient Rings
• Amperage: 2.2 A
• Shaft Type: Double Flat
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6.5 inches
• Insulation Class: B
• Frequency: 60 Hz
