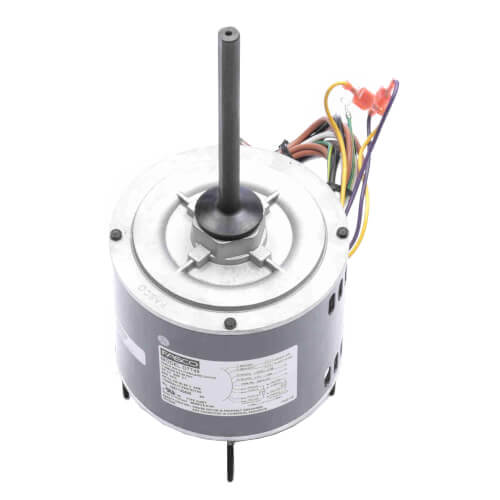

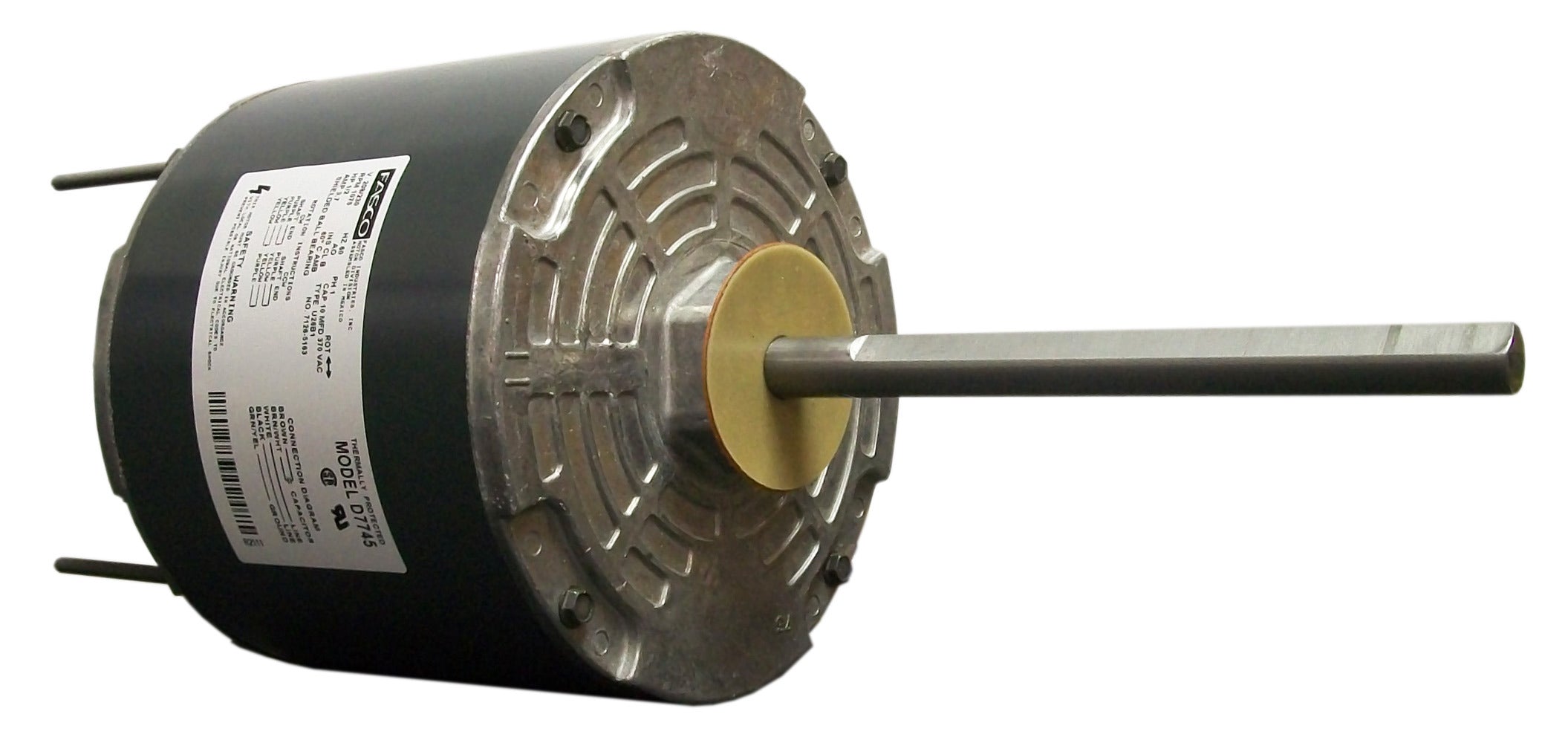

Fasco D7745 Condenser Fan Motor 1/2 HP (208-230V)

Product Description

The Fasco D7745 is a condenser fan motor designed for air conditioning systems. This model operates at half a horsepower and features a speed of 1075 RPM. It is suitable for both vertical and horizontal shaft applications. The motor is rated for voltage between 208 to 230V and is designed to be thermally protected. It includes an automatic overload feature and is built with an open drip-proof enclosure.

• 1/2 HP, 1075 RPM motor.
• 208-230V single-phase operation.
• Ball bearings for durability.

Product Highlights

This motor is ideal for HVAC applications requiring reliable performance. It can be used in various setups, and its reversible rotation feature allows for flexible installation options.

Product Information

Standard Information

• Brand: Fasco
• MPN: D7745

Technical Specifications

• Power: 1/2 HP
• RPM: 1075
• Voltage: 208-230V
• Frame Size: 48
• Diameter: 5.6 inches
• Shaft Type: Double Flat
• Shaft Diameter: 0.5 inches
• Phase: Single
• Enclosure Type: Open Drip Proof
