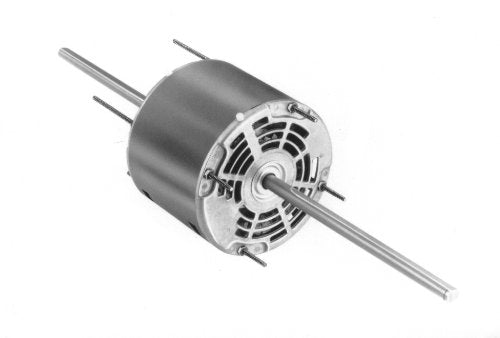

Fasco D773 5.6 inches Frame Open Ventilated Permanent Split Capacitor Window A/C Condenser Fan and Direct Drive Blower Motor 1/4-1/5-1/6HP

Product Description

The FASCO D773 5.6" Frame Open Ventilated Permanent Split Capacitor Window A/C Condenser Fan and Direct Drive Blower Motor features sleeve bearings and operates at 115V, 60Hz, with amperage of 3.8-2.8-2.1. This electric motor is designed for use in vertical or horizontal shaft applications where the motor is located in the airstream.

• Permanent Split Capacitor motor type
• Three speeds for versatile operation
• Open enclosure for ventilation

Product Highlights

The FASCO D773 is suitable for condenser fan and direct drive blower applications.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D773

Technical Specifications

• Brand: Fasco
• MPN: D773
• Manufacturer: Fasco Motors
• Product Type: ELECTRIC_MOTOR
• Horse Power: 1/4-1/5-1/6
• Voltage: 115V
• RPM: 1625
• Hertz: 60
• Speeds: 3
• Amperage: 2.1-2.8-3.8
• Enclosure Type: Open Ventilated Air Over
• Rotation: Double Shaft
• Bearings: Sleeve
• Motor Diameter (In.): 5.6
• Motor Length (In.): 4
• Shaft (In.): 8.5 X 0.5 X 8.5
• Bolt Circle (In.): 5.1875
