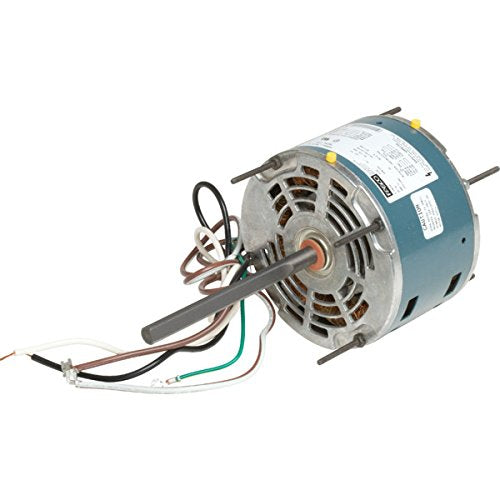

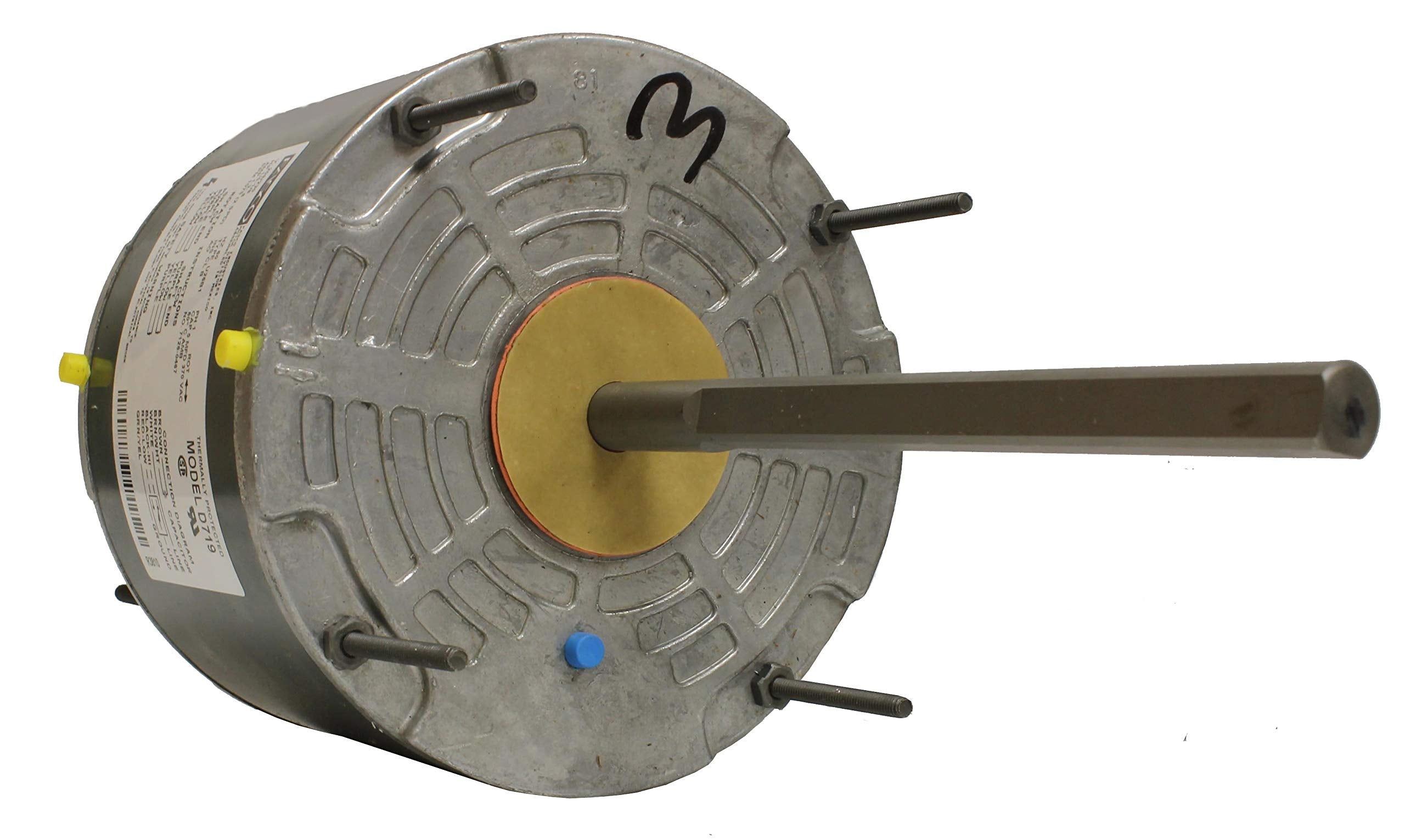

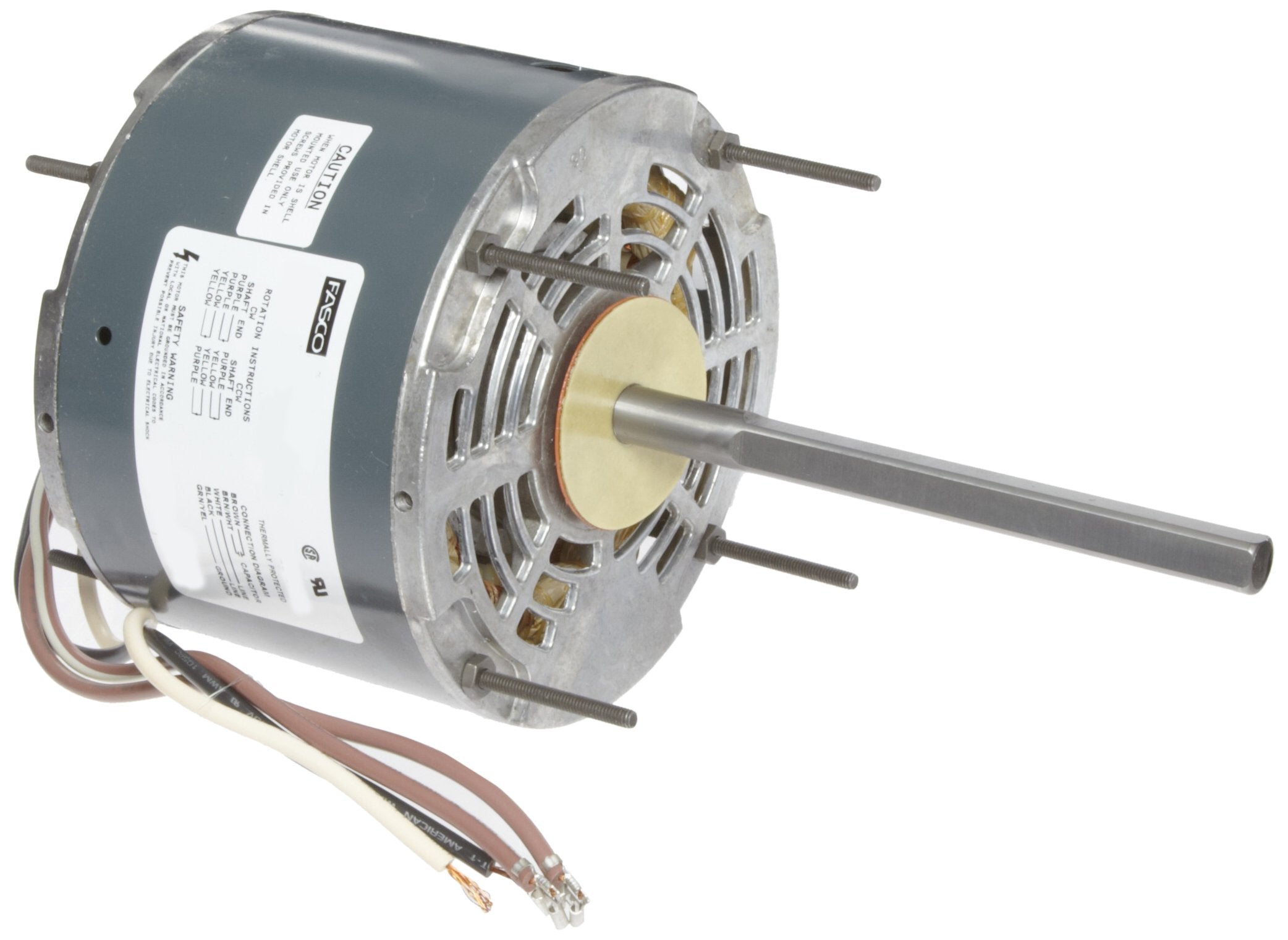

Fasco D742 5.6 Inches Frame Condenser Fan Motor, 1/4HP, 1075rpm

Product Description

The Fasco D742 5.6 inches Frame Condenser Fan Motor is designed for reliable performance in condenser fan applications. This motor features a power rating of one-quarter horsepower, operates at one thousand seventy-five revolutions per minute (RPM), and is suitable for use with voltage ranges of two hundred eight to two hundred thirty volts at sixty hertz.

• Single-phase operation with automatic overload protection.
• Open ventilated design suitable for varied mounting positions.
• Designed with thermal protection for safe operations.

Product Highlights

The Fasco D742 motor is ideal for HVAC applications where efficient airflow is critical. Its durable sleeve-bearing design and rugged construction ensure long-lasting operation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D742

Technical Specifications

• Frame: 48
• Hertz: 60 Hz
• Voltage: 208-230 V
• Rated RPM: 1075
• Horsepower: 1/4 HP
• Motor Type: Permanent Split Capacitor
• Bearing Type: Sleeve
• Enclosure Type: Open/Drip Proof
• Full Load Amps: 1.8 FLA
• Shaft Length: 6 inches
• Shaft Diameter: 1/2 inches
• Overall Length: 10 11/16 inches
• Removable Base: Yes
• Max. Ambient Temp.: 40 Degrees C
• Nominal Efficiency: 60%
• Manufacturers Warranty Length: 1 yr
• Country of Origin: Thailand
