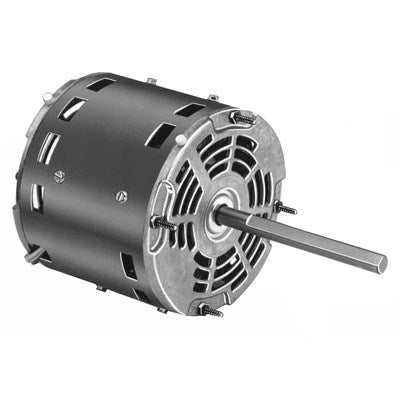

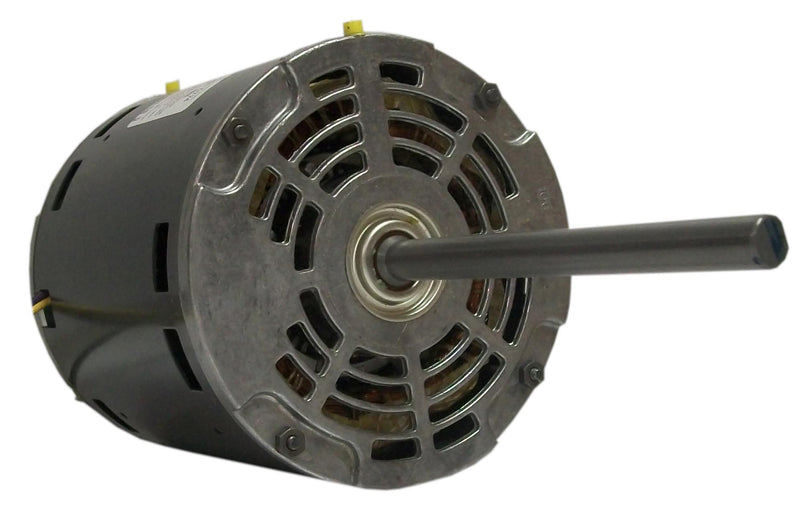

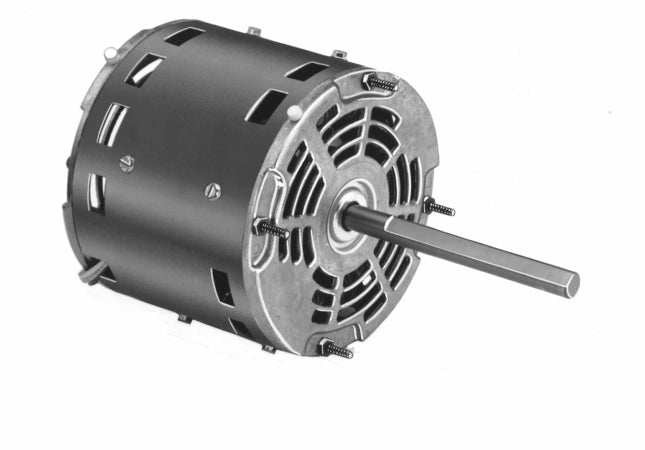

Fasco D724 Electric Motor 1/4 - 1/3 - 1/2 - 3/4 HP

Product Description

The FASCO D724 electric motor is designed for direct drive blower applications. Rated for 115V, this single-phase motor delivers power ranging from 1/4 to 3/4 HP. It operates at 1075 RPM with four selectable speeds and features an open ventilation enclosure. It is suitable for various HVAC and blower applications.

• Direct drive blower motor
• Four speed options
• Open ventilation enclosure

Product Highlights

The FASCO D724 is a versatile motor for HVAC systems, offering multiple horsepower options and speeds.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D724
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• Rated Load (HP): 1/4 - 1/3 - 1/2 - 3/4
• Nominal Rated Input Voltage: 115 V
• Model: D724
• MPN: D724
• AC Phase: Single Phase
• Motor Type: PSC
• Nameplate RPM: 1075
• Voltage: 115
• Enclosure: Open Vent.
• Rotation: CW/CCW
• Hz: 60
• Phase: 1
• Speeds: 4
• Bearings: Sleeve
• Shaft Number: 1
• Shaft Length: 6"
• Shaft Dia.: 0.5"
• Thermal Protection: No
• Cooling: Ambient
• Capacitor: 15M 370V
