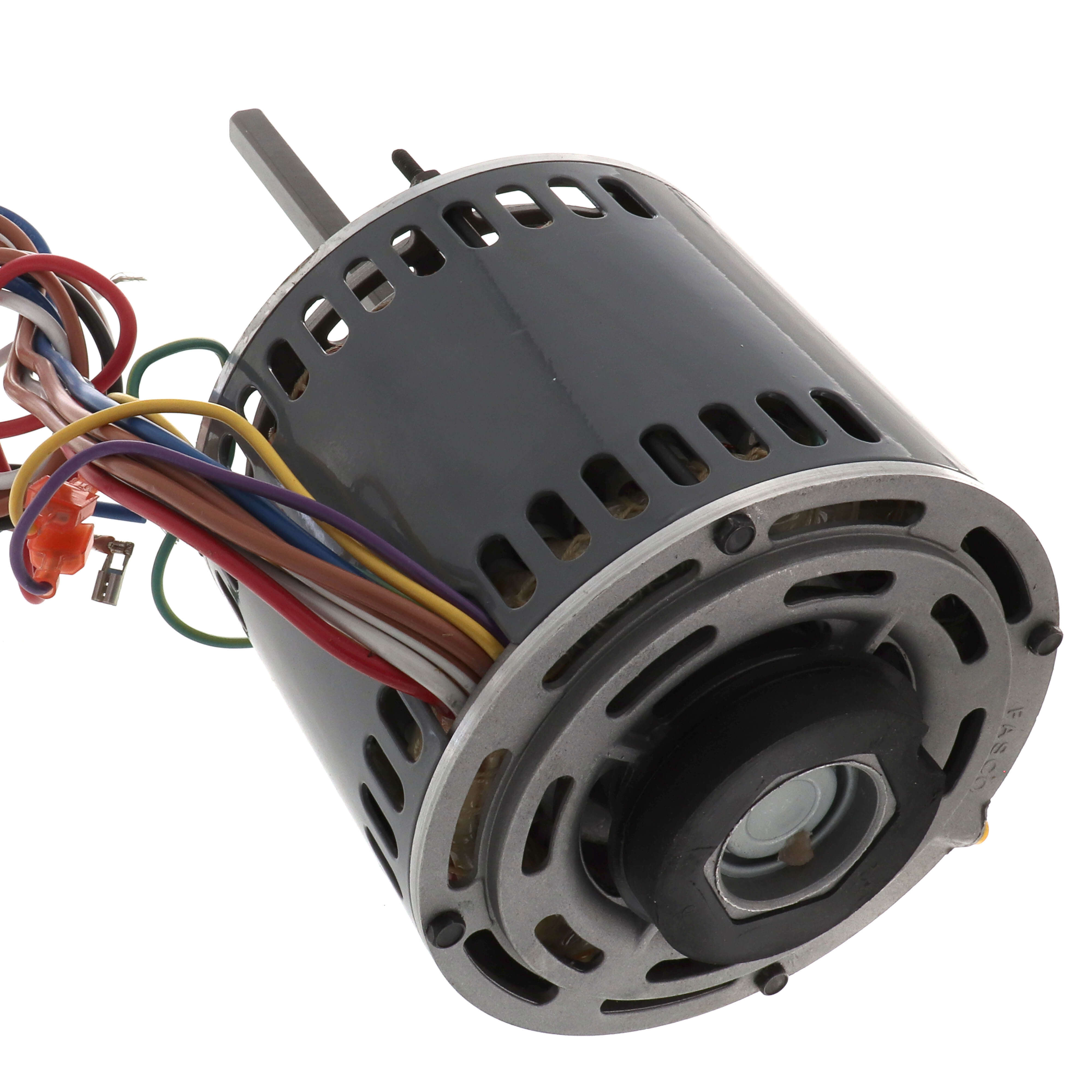

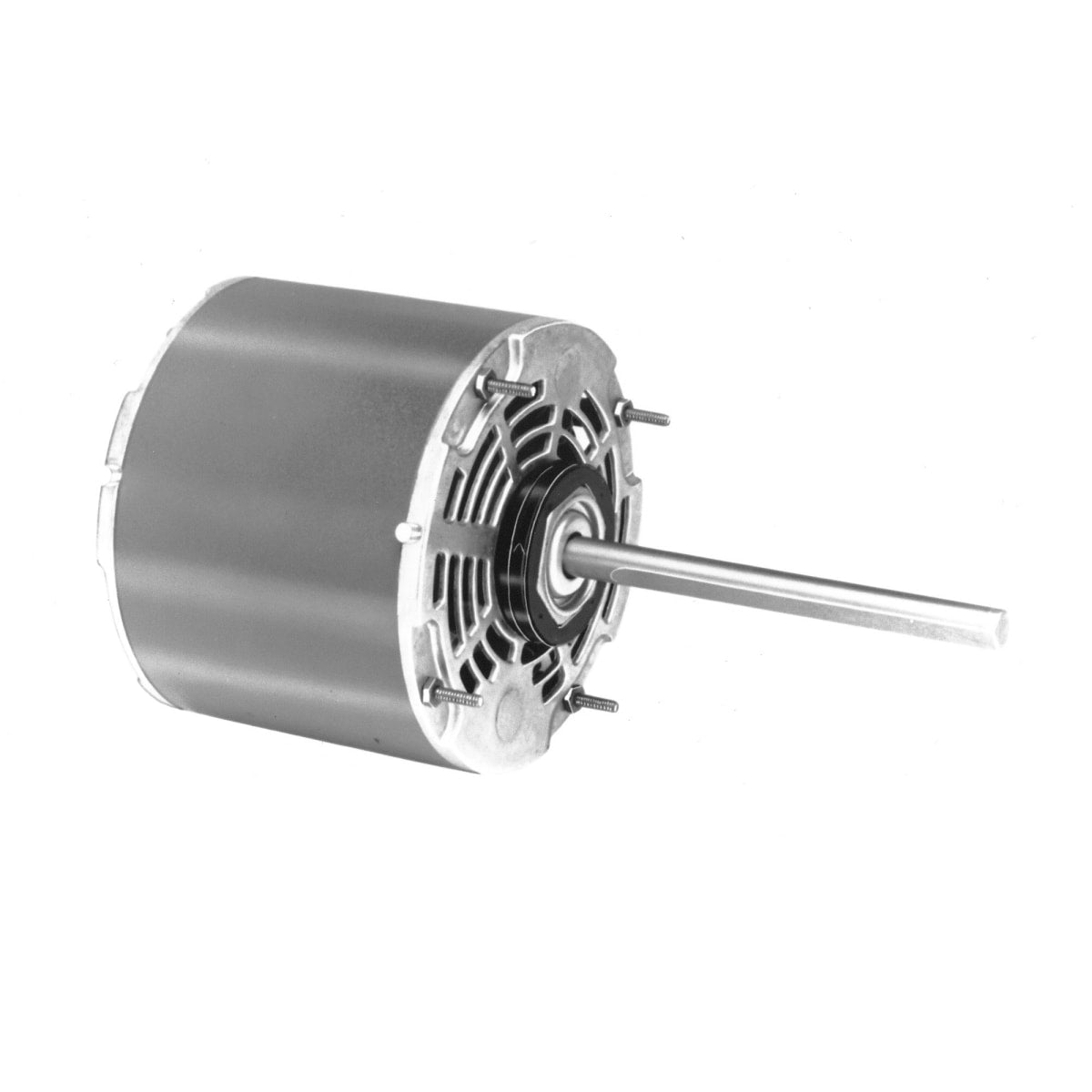

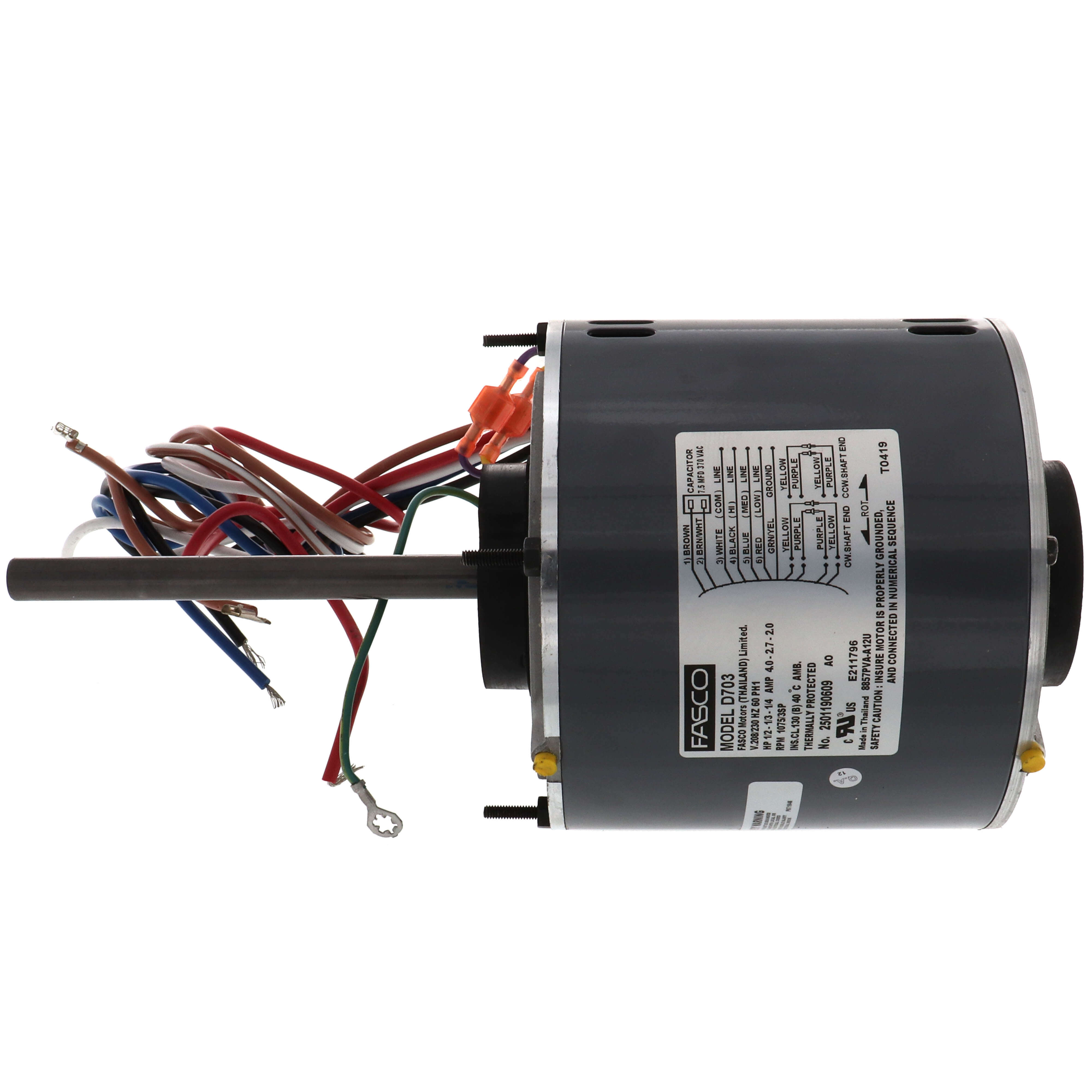

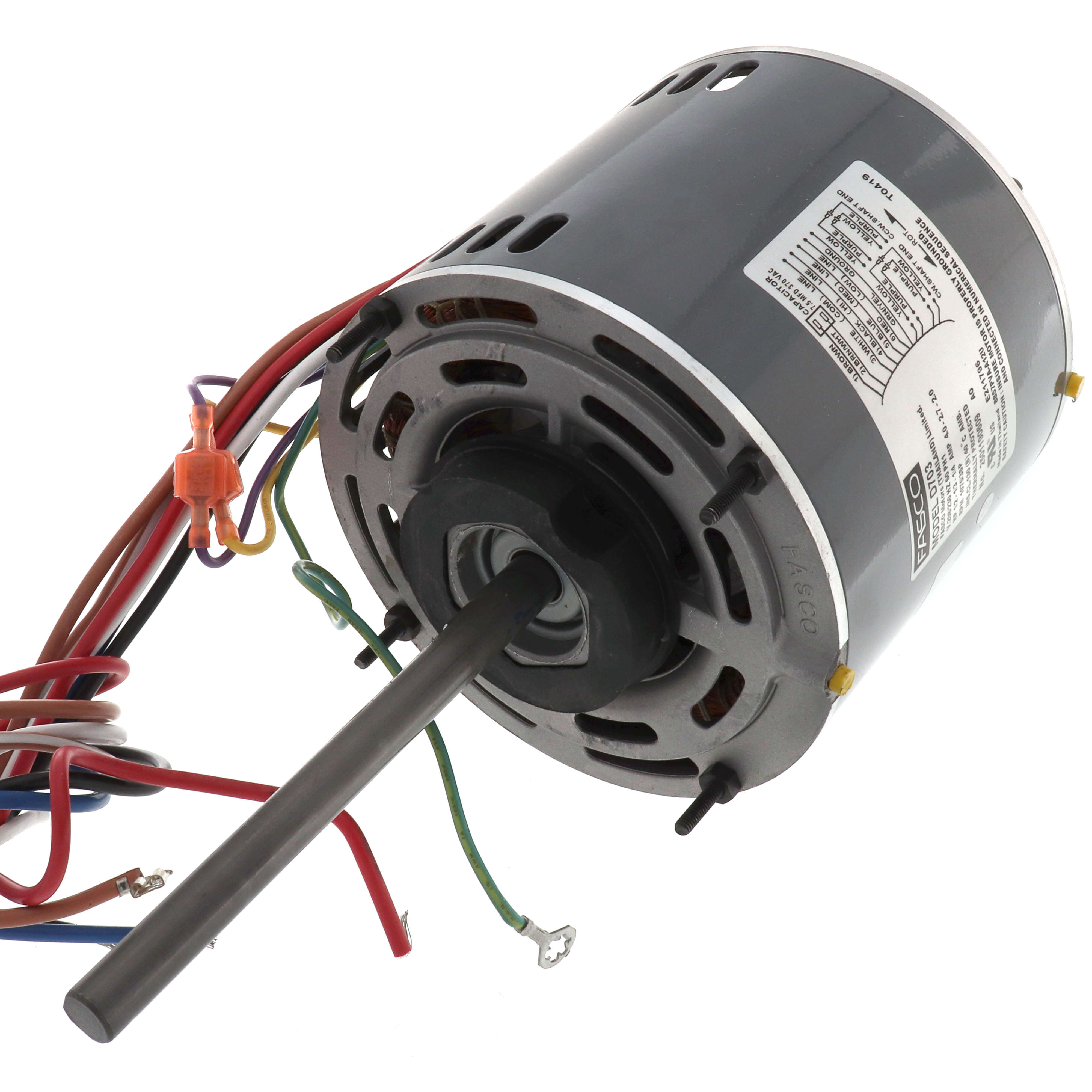

Fasco D703 5.6 Dia Condenser Fan Motor 1/2 HP 1075 RPM FA208-230VTE5.6IDCFMH

Product Description

The Fasco D703 is a direct drive condenser fan motor designed for HVAC applications. It operates at a voltage rating of two hundred eight to two hundred thirty volts and has a speed of one thousand seventy-five RPM. This motor is ideal for air moving applications including furnace fans, air handlers, blowers, and air conditioners.

• Voltage Rating: 208 - 230V
• Power Rating: 0.5 HP
• Speed Rating: 1075 RPM

Product Highlights

Efficient and reliable, the Fasco D703 is equipped with a sleeve bearing and a permanent split capacitor for optimal performance.

Product Information

Standard Information

• Manufacturer: Fasco
• Part Number: D703

Technical Specifications

• Item Name: 5.6 Inch Dia Condenser Fan Motor
• Dimensions: 5.6 inches diameter, 6.5 inches shaft length
• Frame Size: 48
• Shaft Diameter: 0.5 inches
• Full Load Ampere: 3.7 A
• Rotation: Reversible
• Bearing Type: Ball
• Start Method: Permanent Split Capacitor
