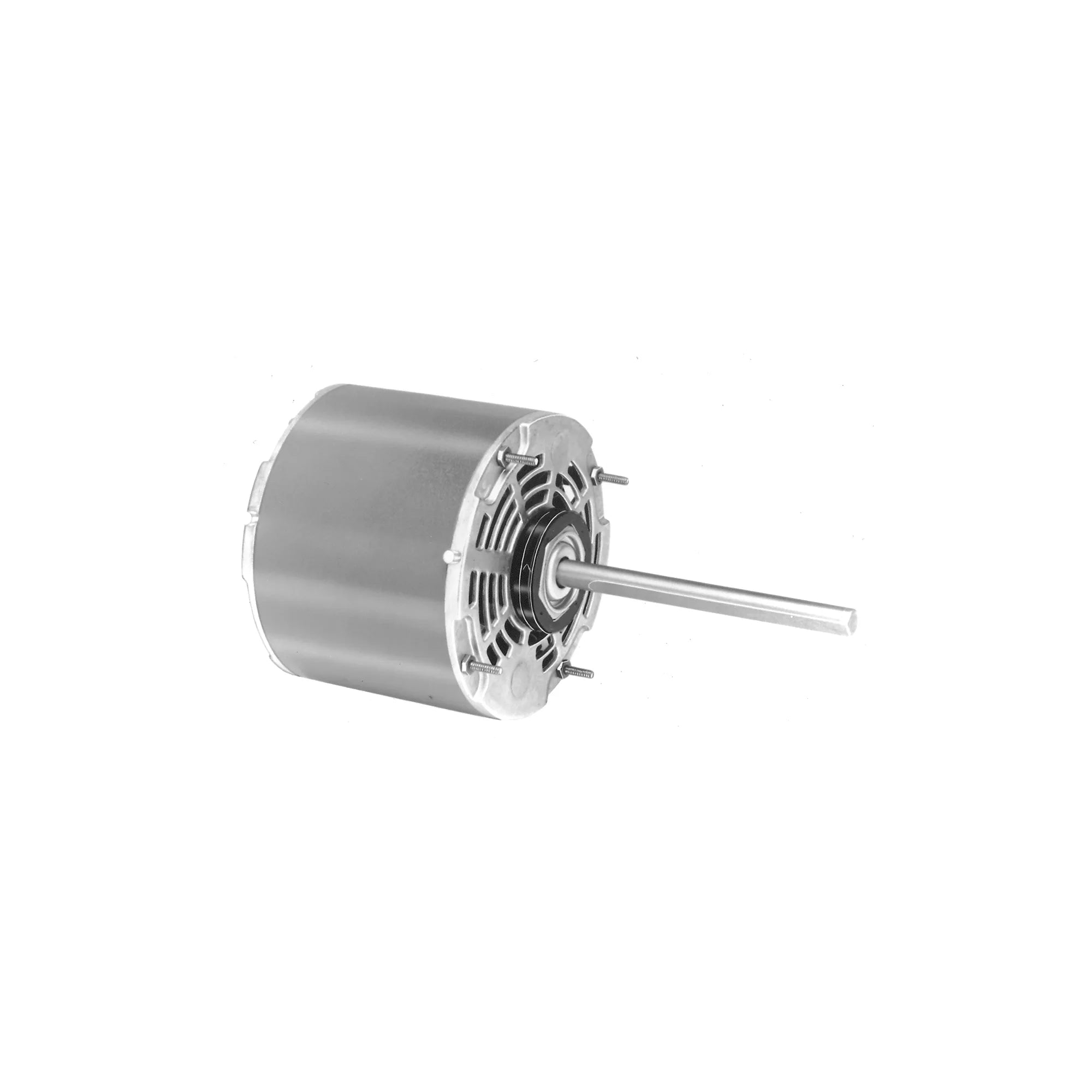

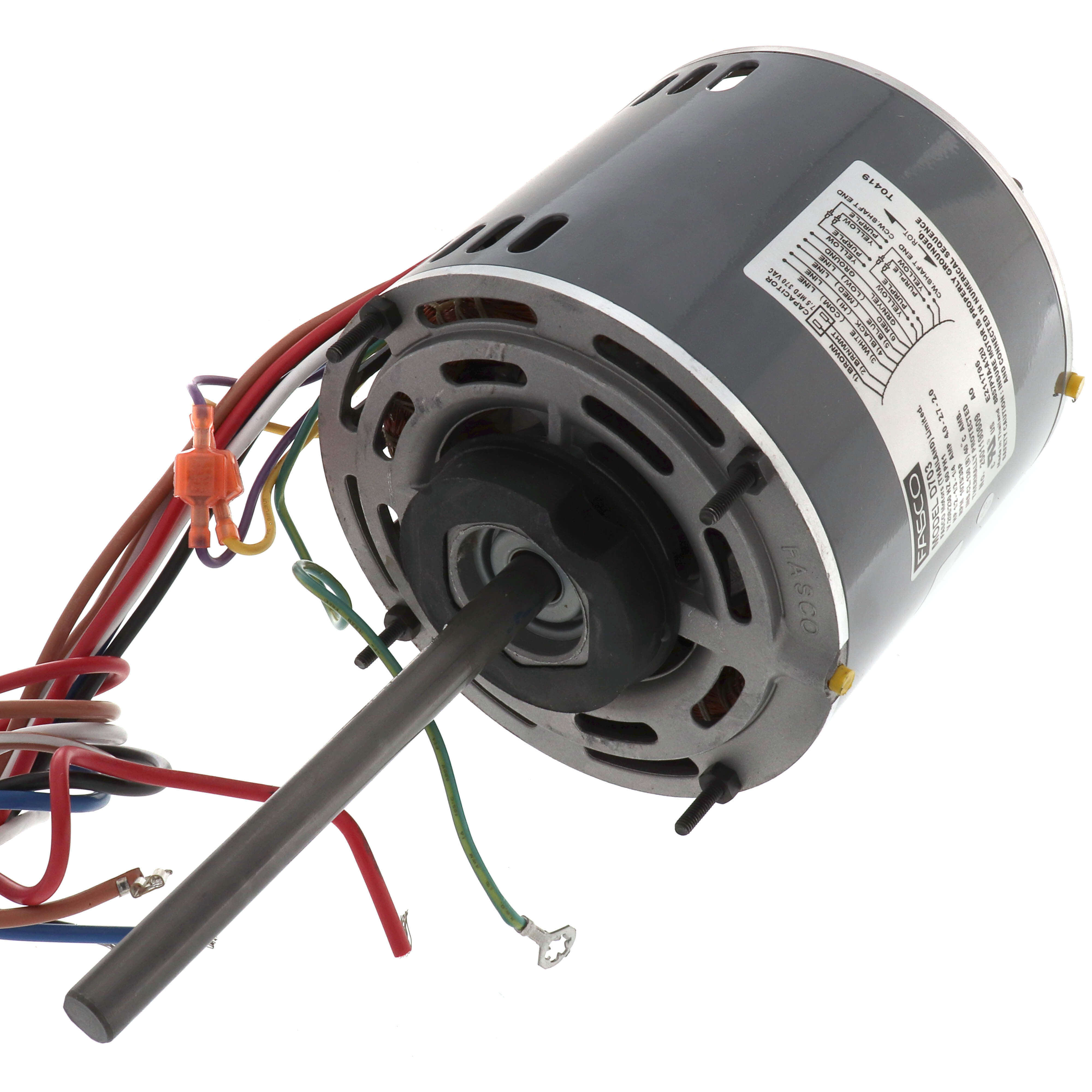

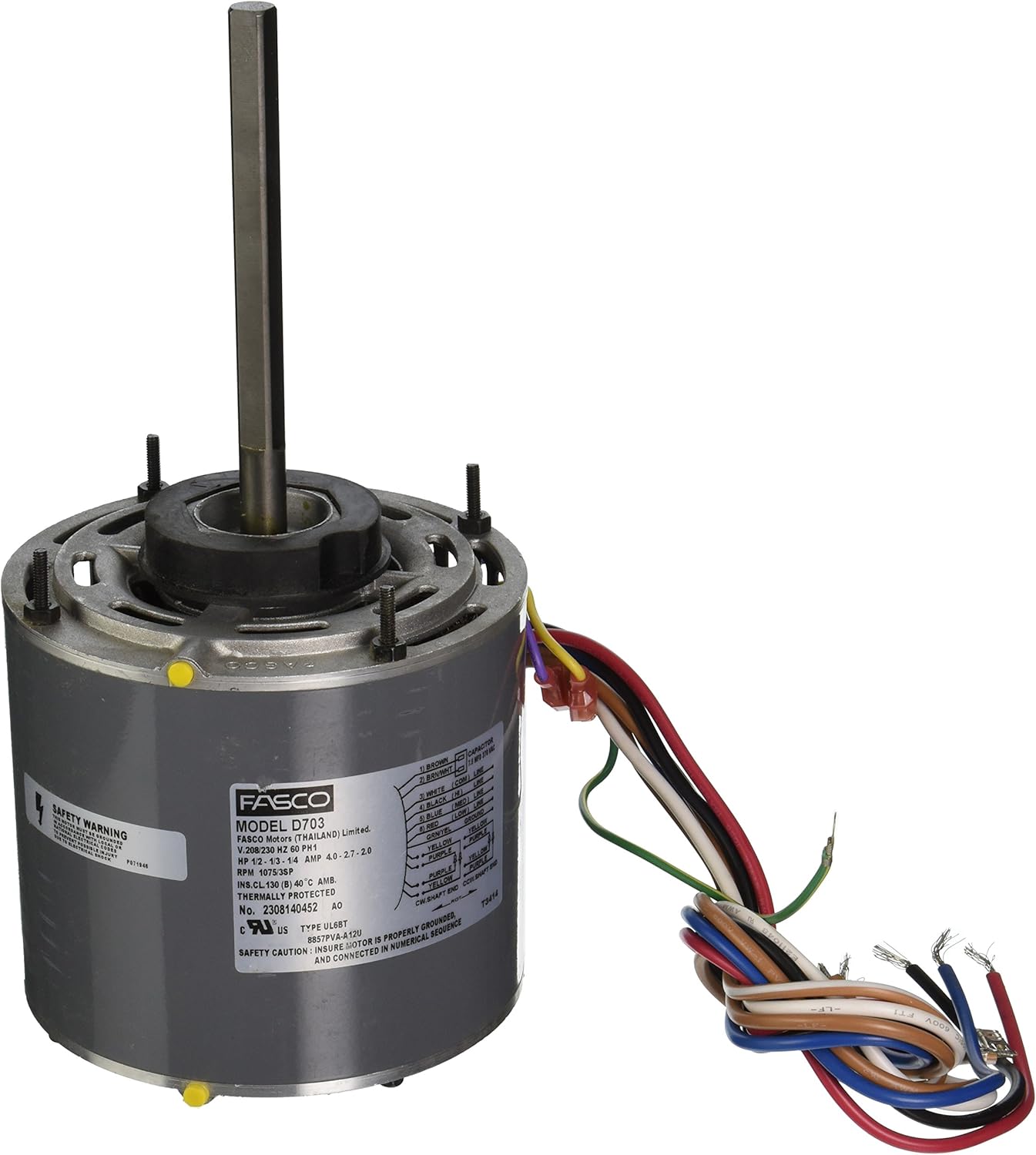

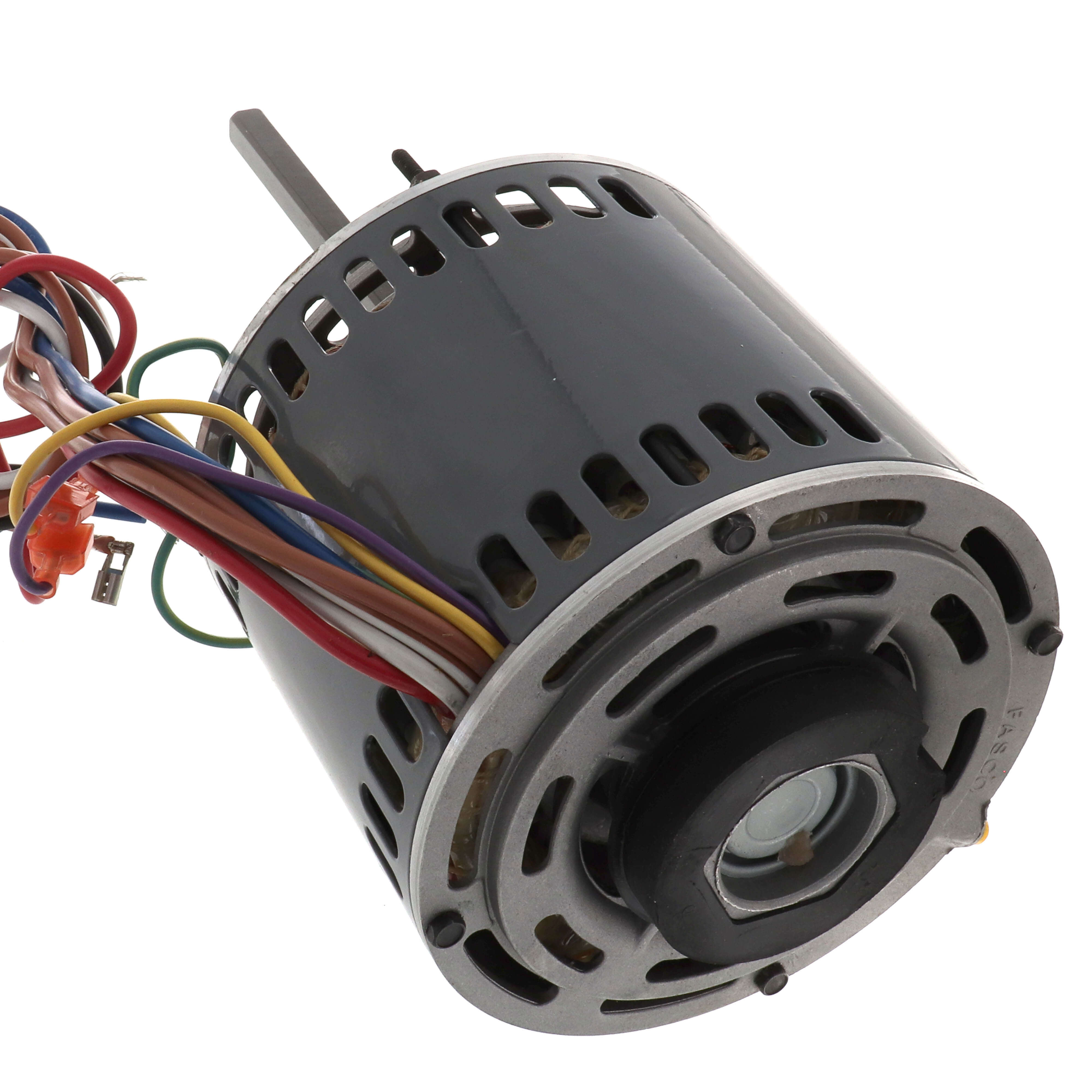

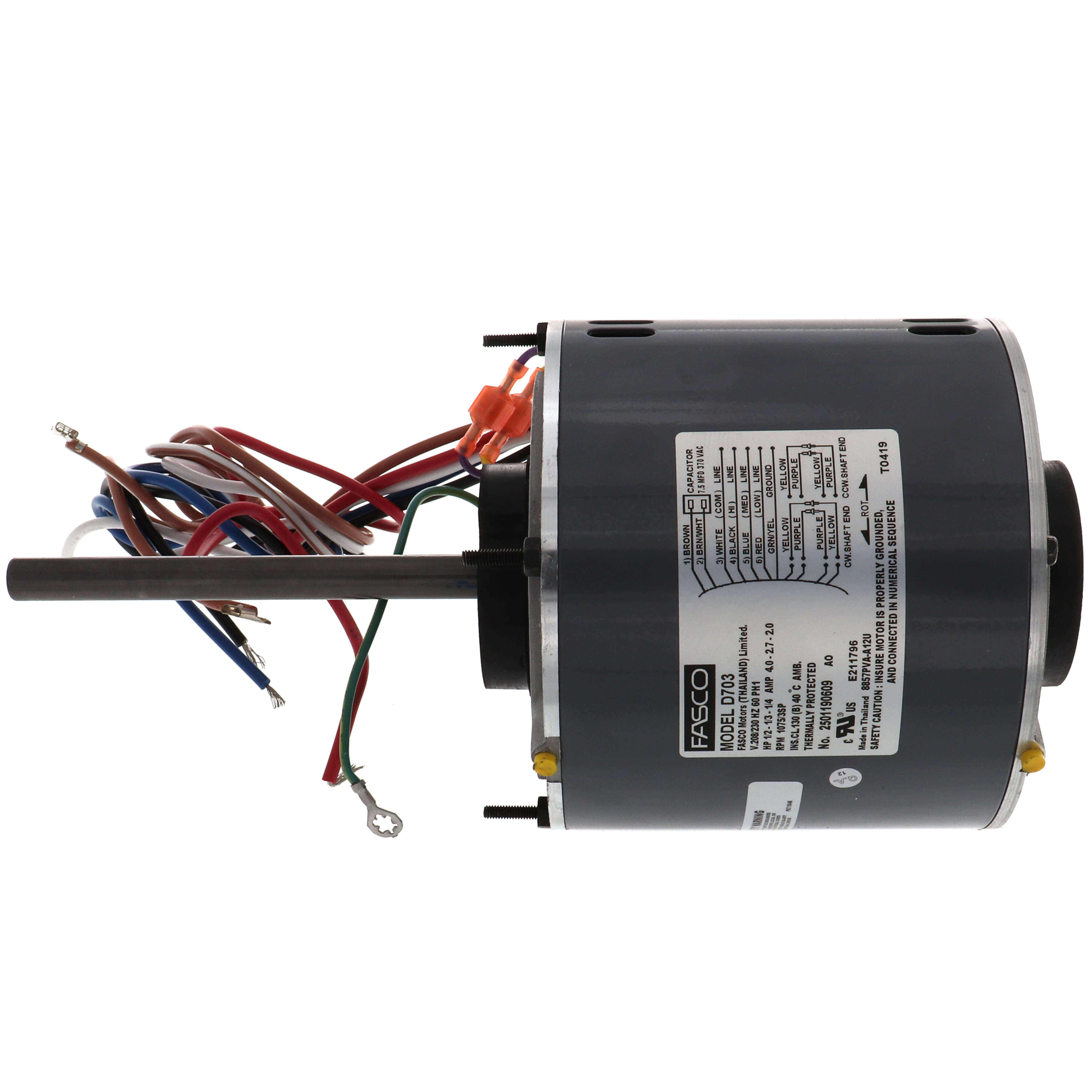

Fasco D703 5.6 Inches Frame Direct Drive Blower Motor 1/2-1/3-1/4HP

Product Description

The Fasco D703 is a five point six-inch frame direct drive blower motor designed for HVAC applications. It operates at 208 to 230 volts with a frequency of sixty hertz and can handle load currents of four, two point seven, and two amps. This motor is suitable for direct drive applications, offering reversible rotation which allows for flexibility in installation. The sleeve bearing design ensures smooth operation and durability over time. Additionally, the Fasco D703 is thermally protected for added safety.

• Direct drive design for efficient performance
• Reversible rotation capability
• Thermal protection for enhanced safety

Product Highlights

Ideal for direct drive fan and blower applications in HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: D703

Technical Specifications

• Speed: 1075 RPM
• Voltage: 208-230V AC
• Horsepower: 1/2 - 1/3 - 1/4
• Full Load Amps: 4.0-2.7-2.0
• Motor Design: Permanent Split Capacitor
• Shaft Diameter: 1/2 inch
• Shaft Length: 6 inches
• Bearing Type: Sleeve
• Number of Speeds: 3
• Frame: 48
• Motor Thermal Protection: Auto
• Motor Service Factor: 1
• Insulation Class: B
• Rotation: CW/CCW
• Max. Ambient Temp.: 40 Degrees C
• Duty Cycle: Continuous
• Lead Length: 26 inches
• Motor Application: HVAC/R
• Country of Origin: USA
• Manufacturers Warranty Length: 1 year
