Fasco D674 1/10hp 1500RPM 2-Speed CW 4.4 Diameter

Product Description

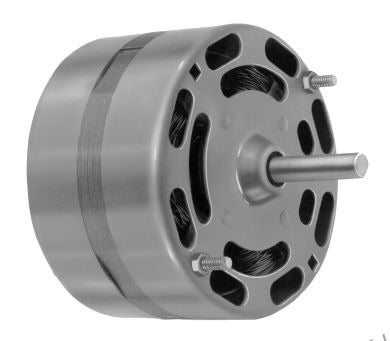

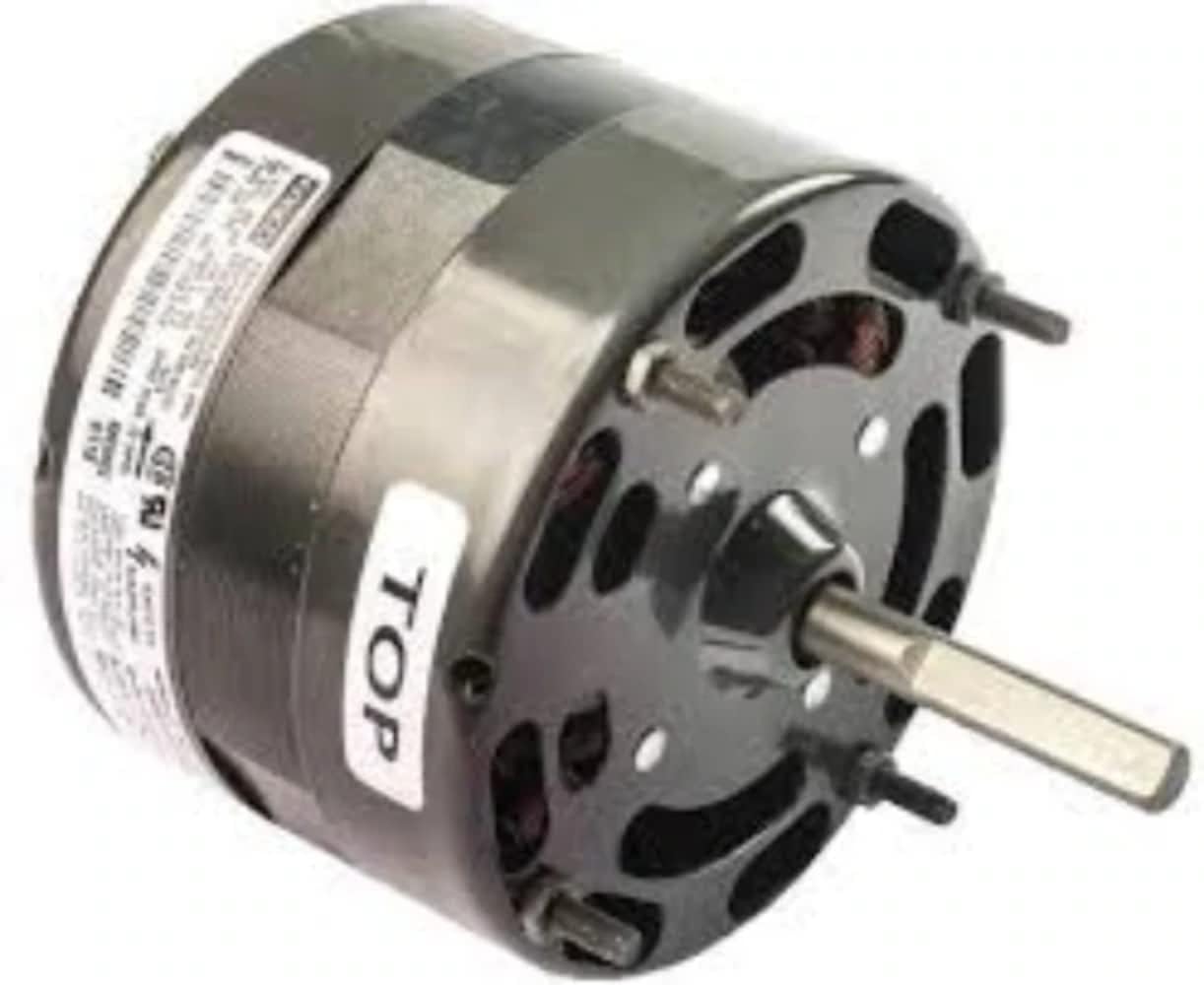

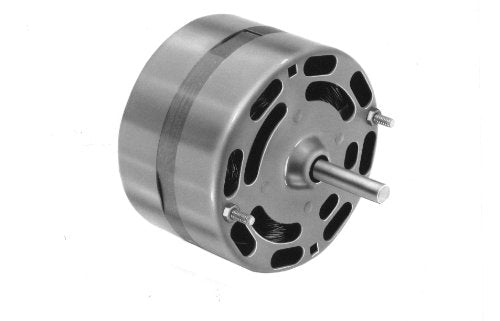

The Fasco D674 is an efficient 1/10 horsepower electric motor designed for various applications. This model operates at a speed of fifteen hundred RPM and is suitable for tasks requiring a two-speed operation. It features an open ventilated frame for better airflow and cooling. With a voltage rating of two hundred thirty volts, this motor is thermally protected and certified by UL and CSA.

• Operates at 1/10 horsepower and 1500 RPM
• Thermal protection enhances safety and longevity
• Shaft measures three-eighths inches in diameter by two and a half inches in length

Product Highlights

This motor is ideal for HVAC applications, general-purpose tasks, and any environment where reliable airflow is required.

Product Information

Standard Information

• Horsepower: 1/10 hp
• Speed: 1500 RPM
• Voltage: 230 Volts
• Amperage: 2.0 - 1.3 amps
• Dimensions: 4.4 inches diameter
• Type: Shaded Pole
• Rotation: Clockwise Shaft End
• Mounting: Extended Studs

Technical Specifications

• Motor Type: Electric
• Frame Type: Open Air Over
• Insulation Class: Class B
• Service Factor: 1
