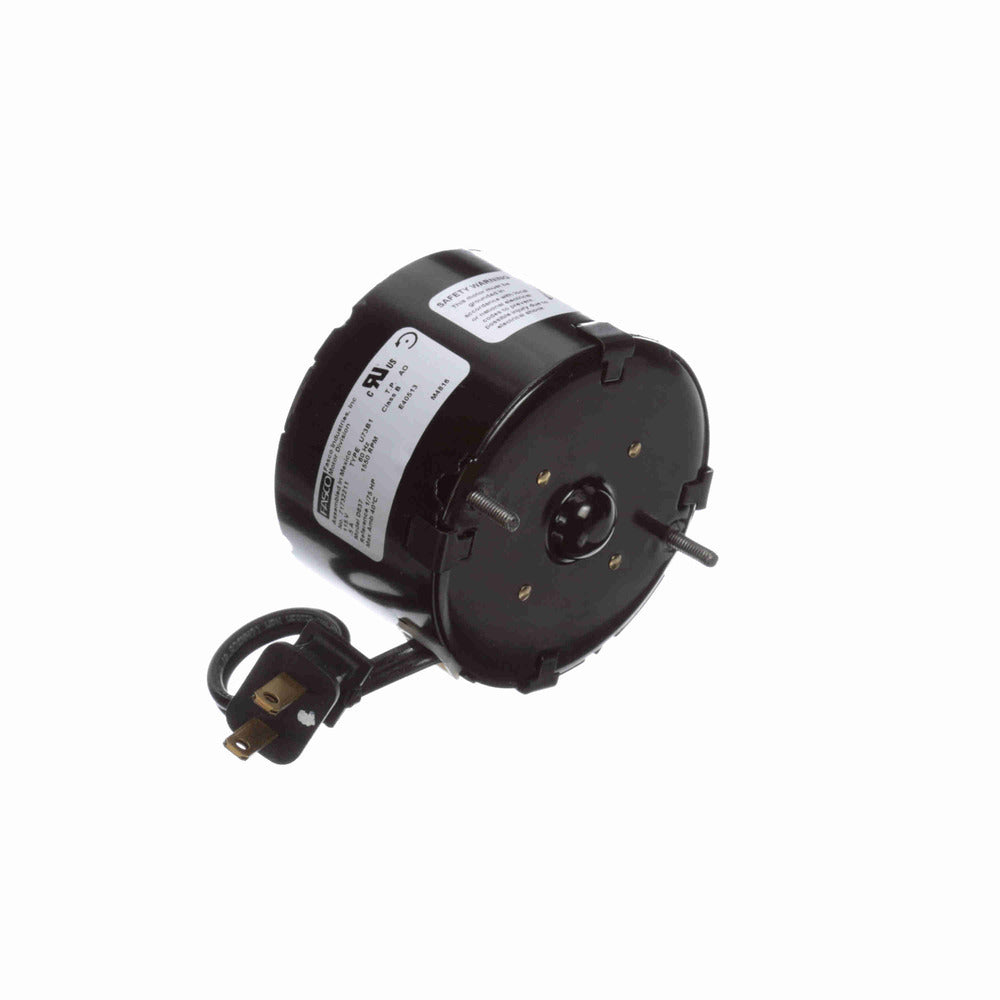

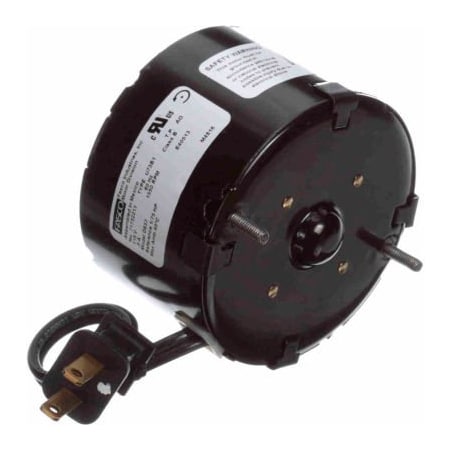

Fasco D637 OEM Replacement Motor 1/75 HP 1550 RPM 115V TEAO

Product Description

The Fasco D637 OEM Replacement Motor is a dependable motor for various applications. Designed with a shaded pole and a power rating of 1/75 HP, this motor runs at 1550 RPM and operates on 115V. It features a totally enclosed air over (TEAO) construction.

• 1/75 HP shaded pole motor
• 1550 RPM
• 115V operation

Product Highlights

This motor offers reliable performance with its sleeve bearings, counterclockwise shaft end, and thermally protected overload.

Product Information

Standard Information

• Brand: Fasco
• MPN: D637
• Category: OEM Replacement Motor

Technical Specifications

• Motor Type: Shaded Pole
• Horsepower: 1/75 HP
• Rotations Per Minute: 1550 RPM
• Voltage: 115V
• Electrical Phase: Single
• Enclosure: Totally Enclosed Air Over (TEAO)
• Amperage: 0.50
• Rotation: Counterclockwise Shaft End (CCWSE)
• Bearing Type: Sleeve Bearings
• Shaft Diameter: 0.250 inches
• Shaft Extension: 1.1 inches
• Material: Steel
• Protection: Thermally Protected
• Mounting: Extended Studs
• Insulation Class: B
• Ambient Temperature: 40 degrees Celsius
• Frequency: 60 Hz
• Diameter: 3.3 inches
• Length: 8 inches
• Width: 3.38 inches
• Height: 3.38 inches
• Weight: 2.23 lbs
