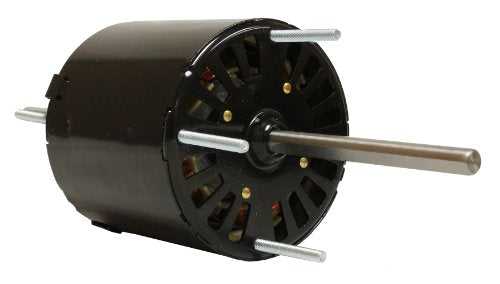

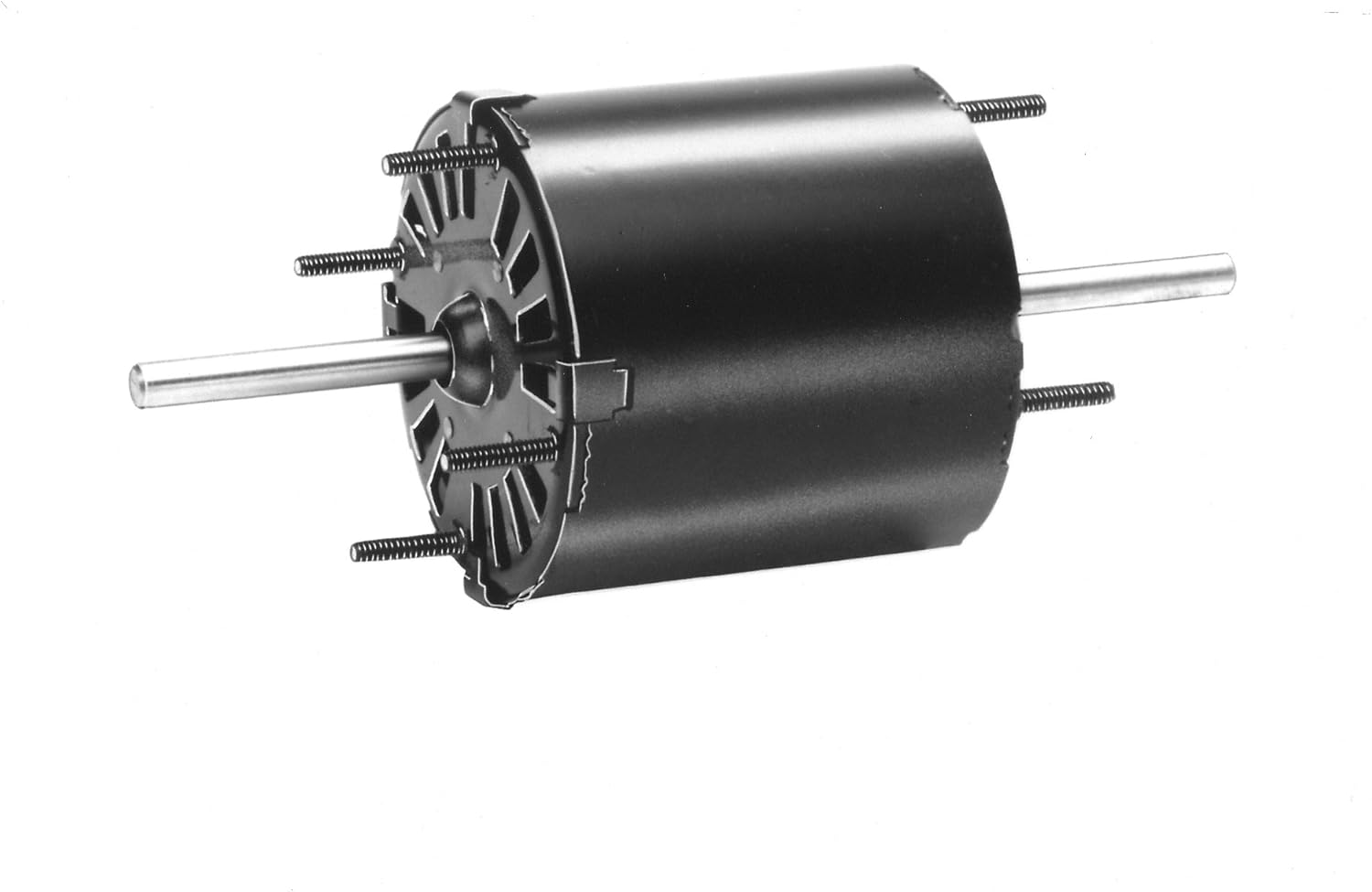

Fasco D636 HVAC 3.3 Inch Motor 1/25 HP 230V 1500 RPM CCW LE

Product Description

The Fasco D636 is a versatile HVAC motor ideal for various applications. This motor is designed to ensure efficient operation and durability, providing a reliable solution for HVAC systems. Manufactured by Fasco, the D636 motor offers a 3.3-inch frame diameter and operates at 1/25 HP. It runs at 1500 RPM with a voltage of 230V.

• 3.3-inch frame diameter
• 1/25 HP
• 1500 RPM

Product Highlights

This motor features a shaded pole design and is thermally protected. It includes a flat shaft type and reversible rotation capability, making it suitable for multiple settings.

Product Information

Standard Information

• Brand: Fasco
• Model: D636

Technical Specifications

• Speed: 1500 RPM
• Voltage: 230 Volts
• Certification: IEC/NEMA
• Horsepower: 1/25 HP
• Shaft Type: Flat
• Motor Enclosure: Open Air Over
• Phase: Single
• Frame Diameter: 3.3 inches
• Bearings: Sleeve
• Amperage: 0.9
• Rotation: Reversible
• Shaft Dimension: 0.313 inches
• Mounting: Extended Studs
• Insulation Class: B
• Ambient Temperature: 40°C
