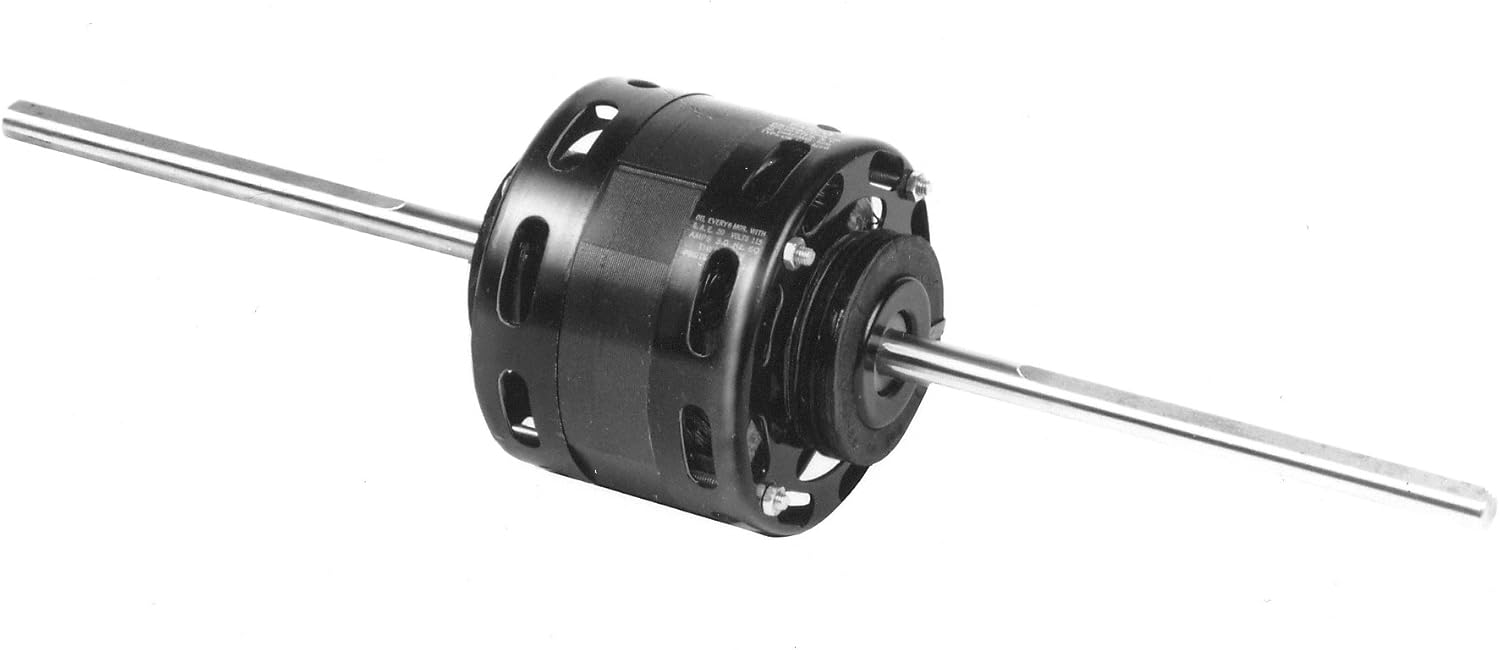

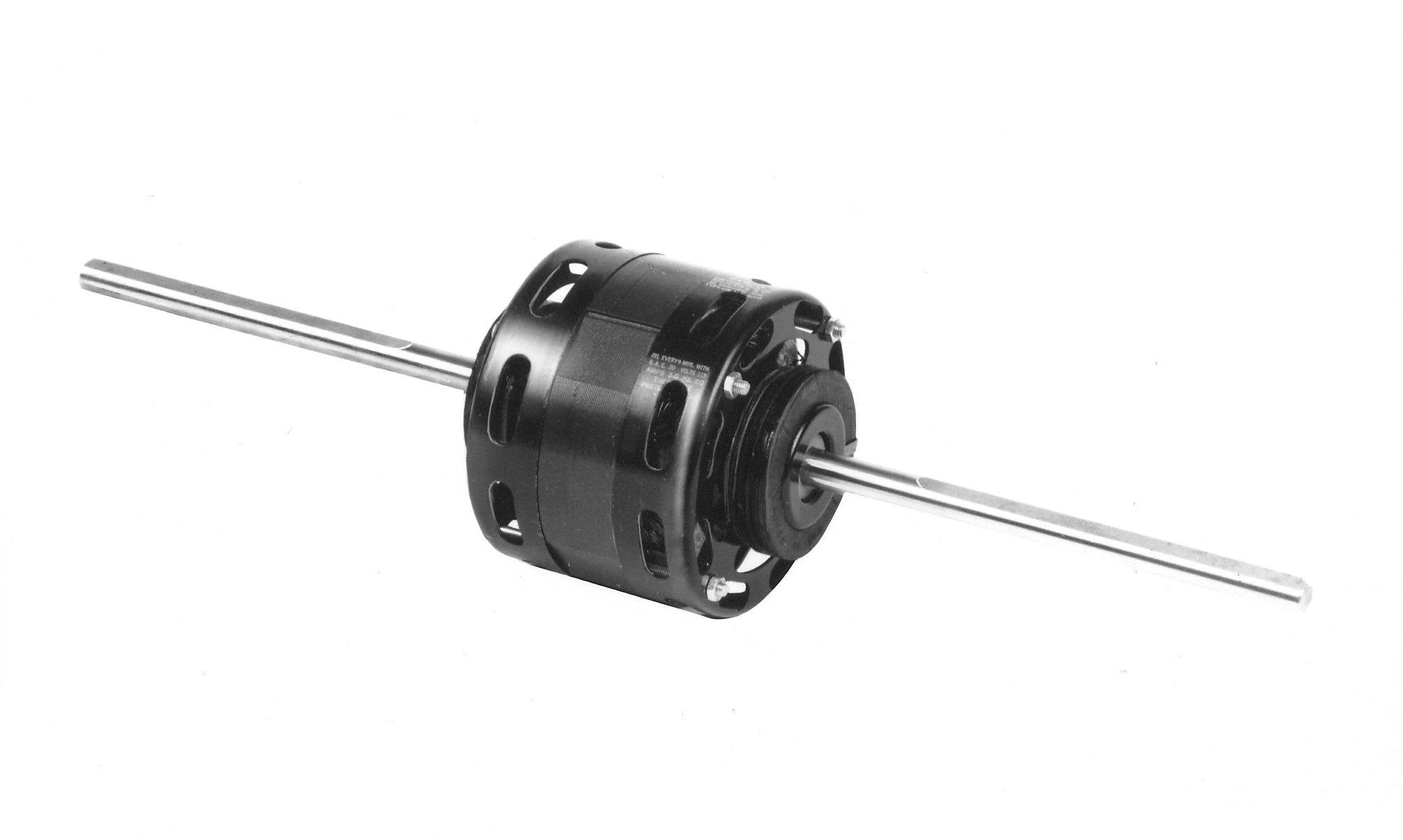

Fasco D635 1/10HP 1550RPM 4.4 Diameter 230 Volts Electric Motor

Product Description

The Fasco D635 motor is built for use in fan coil air-conditioning and heating units. This versatile motor features a power rating of 1/10HP with three-speed settings and operates at 1550RPMs. Its 4.4-inch diameter and 230 volts make it an ideal replacement motor.

• Thermally protected
• Interchangeable with most fan coil units
• Double shaft rotation

Product Highlights

An interchangeable motor compatible with a wide range of air-conditioning and heating units. Features thermal protection and a double shaft for versatile applications.

Product Information

Standard Information

• Brand: Fasco
• Model: D635
• Weight: 12 Pounds
• Shipped From: CSH Electric Motor Supply
• Sold By: CSH Electric Motor Supply

Technical Specifications

• Diameter: 4.4 inches
• Horsepower: 1/10HP
• Speed: 1550RPM
• Voltage: 230 Volts
• Amperage: 1.8-1.3-1.0 amps
• Type: Shaded Pole
• Bearings Type: Sleeve
• Mounting Type: Resilient Rings
• Shaft Type: Flat
• Shaft Extension: 10 inches
• Insulation Class: B
• Ambient Temperature: Up to 40°C
• Enclosure: Open Air Over
• Rotation: Reversible
