Fasco D624 Shaded Pole Totally Enclosed Motor 230 Volts 3.3 Inches

Product Description

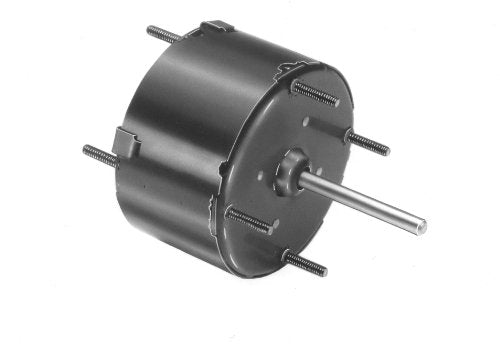

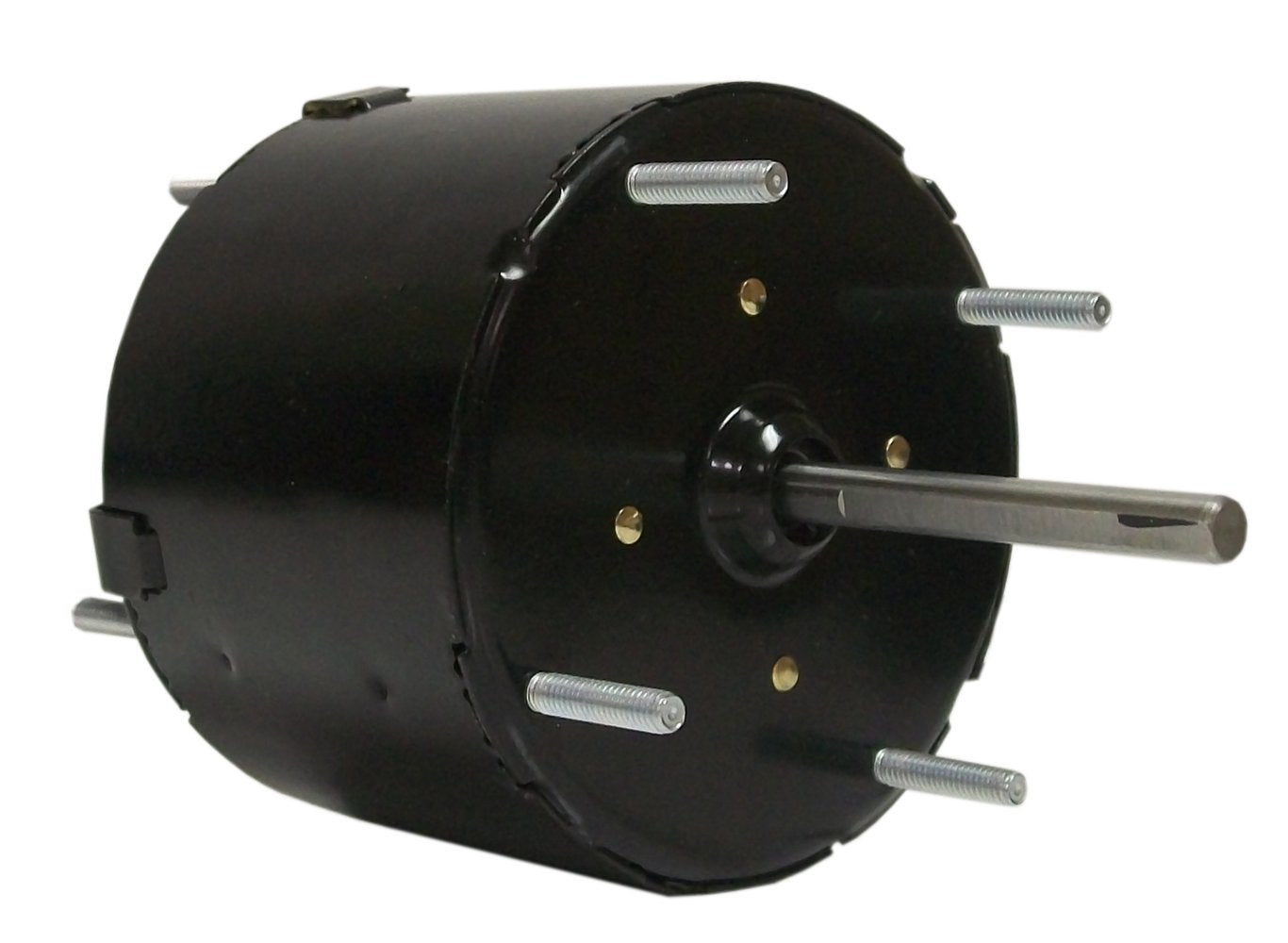

The Fasco D624 is a shaded pole motor designed for HVAC and refrigeration applications. It operates at two hundred thirty volts and achieves a rated speed of one thousand five hundred RPM. This motor is single-phase and includes automatic overload protection. It features a flat shaft design measuring one-quarter inch in diameter and rotates clockwise when viewed from the shaft end.

• Shaded pole design for improved efficiency
• Totally enclosed to protect against dust and moisture
• Automatic overload protection for increased safety

Product Highlights

This motor is ideal for direct drive fan and blower applications in HVAC systems, providing reliable operation under continuous duty conditions.

Product Information

Standard Information

• Brand: Fasco
• Manufacturer Part Number: D624

Technical Specifications

• Hertz: 60 Hz
• Phase: Single
• Voltage: 230 V
• Rated RPM: 1500
• Horsepower: 1/50 HP
• Motor Type: Shaded Pole
• Enclosure Type: Totally Enclosed
• Full Load Amps: 3.5 FLA
• Shaft Diameter: 1/4 in
• Ambient Temperature: 40°C
• Material: Steel
• Country of Origin: Mexico
