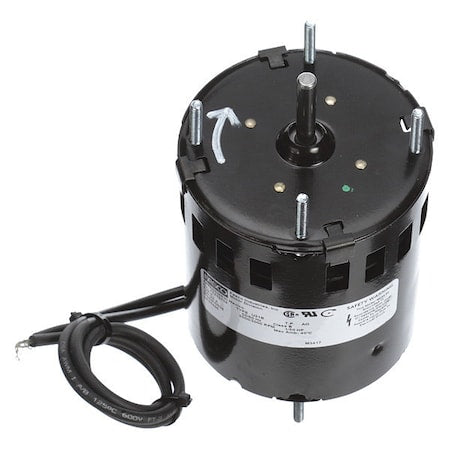

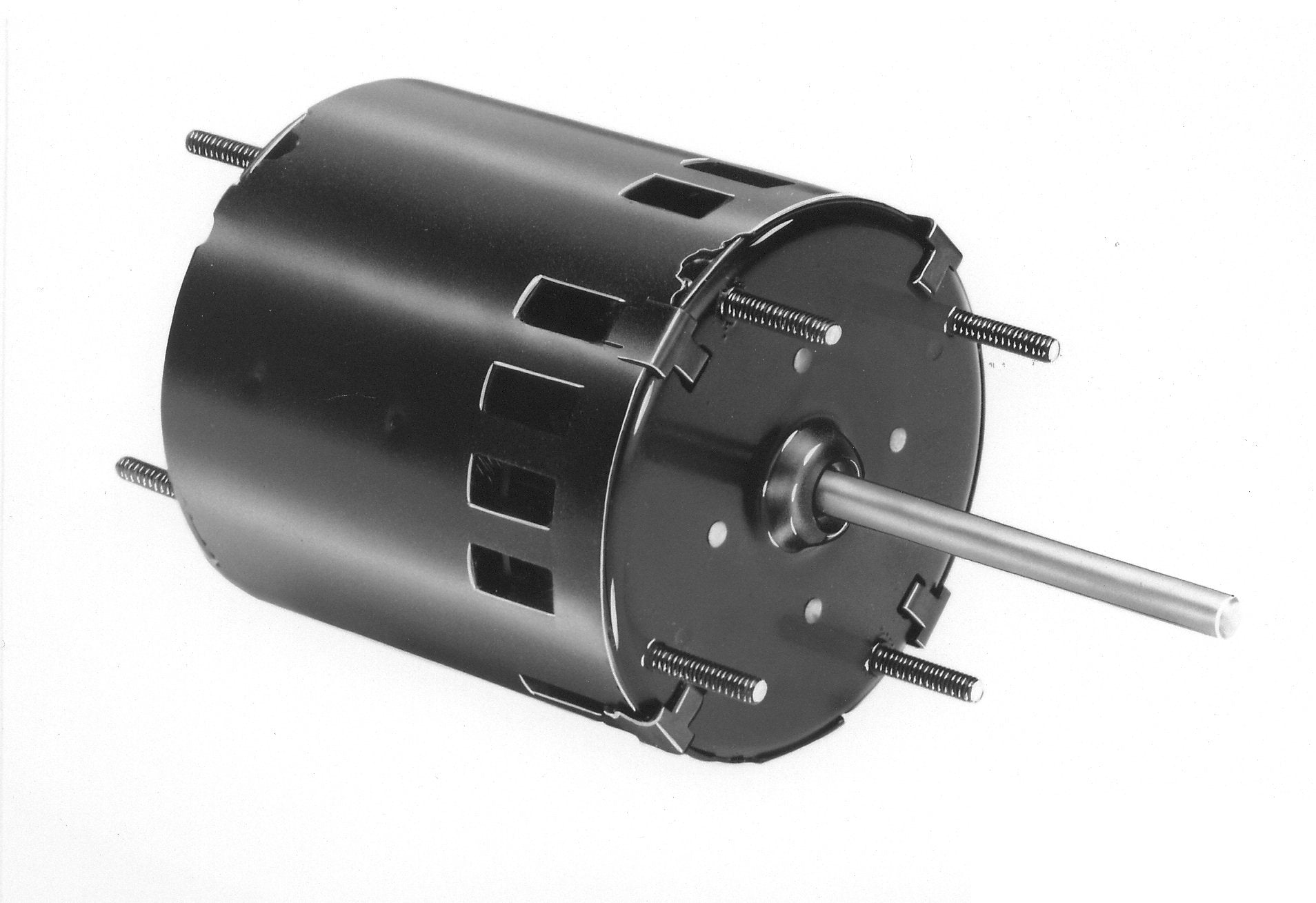

Fasco D608 3.3 inches Frame Open Ventilated Shaded Pole General Purpose Motor 1/50HP

Product Description

The Fasco D608 is a shaded pole open ventilated general purpose motor with sleeve bearing. This motor is thermally protected and features clockwise shaft end rotation. It is CSA certified and UL recognized. With a 1/50 horsepower and a 230V voltage rating, it delivers a speed of 3000rpm and 0.6 amps. Ideal for HVAC/R applications.

• Open ventilated shaded pole general purpose motor with sleeve bearing
• Thermally protected
• Clockwise shaft end rotation

Product Highlights

The Fasco D608 is a 1/50HP, 230V motor with a speed of 3000rpm, suitable for various general purpose applications.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D608
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• Manufacturer: Fasco Motors
• Motor Length: 3-3/4"
• Voltage: 230V
• Horsepower: 1/50 HP
• Speed: 3000 rpm
• Amps: 0.6 amps
• Motor Design: Shaded Pole
• Motor Shaft Rotation: CWSE
• Enclosure: Open Dripproof
• Motor Mounting Type: Stud
• Shaft Diameter: 0.250 in
• Shaft Length: 1-5/16 In.
• Number of Shafts: 1
• Motor Thermal Protection: Auto
• Nameplate RPM: 2500/3000
• Frame: 3.3
• Motor Bearings: Sleeve
• Motor Service Factor: 1.00
• Frequency: 60/50 Hz
• Body Diameter: 3.3 In.
• Ins. Class: B
• Max. Ambient Temp.: 40 Degrees C
• Overall Length: 5.12 in
• Shaft Type: Flat
• Application: HVAC/R
• Hz: 60 Hz
• Duty: Continuous
• Phase: Single
• Mounting: Stud
• RPM Range: 1,801-3,000
• Stud Size: #8-32
• RPM @ 50Hz: 3,000 RPM
• Lead Length: 12 in
• No. of Speeds: 1
• Full Load Amps: 0.64/0.53
• Mounting Holes: (8) #8-32
• Bolt Circle Dia.: 2 7/8 in
• Mounting Pattern: 2-7/8 x 2-7/8
• Length Less Shaft: 4 1/4 in
• Motor Application: HVAC/R
• Capacitor Required: No
• Motor Shaft Design: Flat
• Motor Frame Material: Steel
• Motor Mounting Position: All Angle
• Motor Sub Application: Direct Drive Fan/Blower
• Mounting Stud Pattern: 2 7/8 in x 2 7/8 in
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
• Motor Enclosure Design: Open Air-Over
• Mounting Stud Location: 4/Both Ends
• Stud/Base Mtg. Pattern: 2-7/8 in x 2-7/8 in
• Number of Speeds: 1
• Output HP: 1/50 Hp
• Output KW: 0.01 kW
• Thermal Protection: Thermally Protected
• Efficiency: 22 %
• Ambient Temperature: 40 °C
• Current: .64/.53 A
• Insulation Class: B
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 2
• Rotation: Clockwise Shaft End
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Frame Length: 3.50 in
• Shaft Extension: 1.30 in
