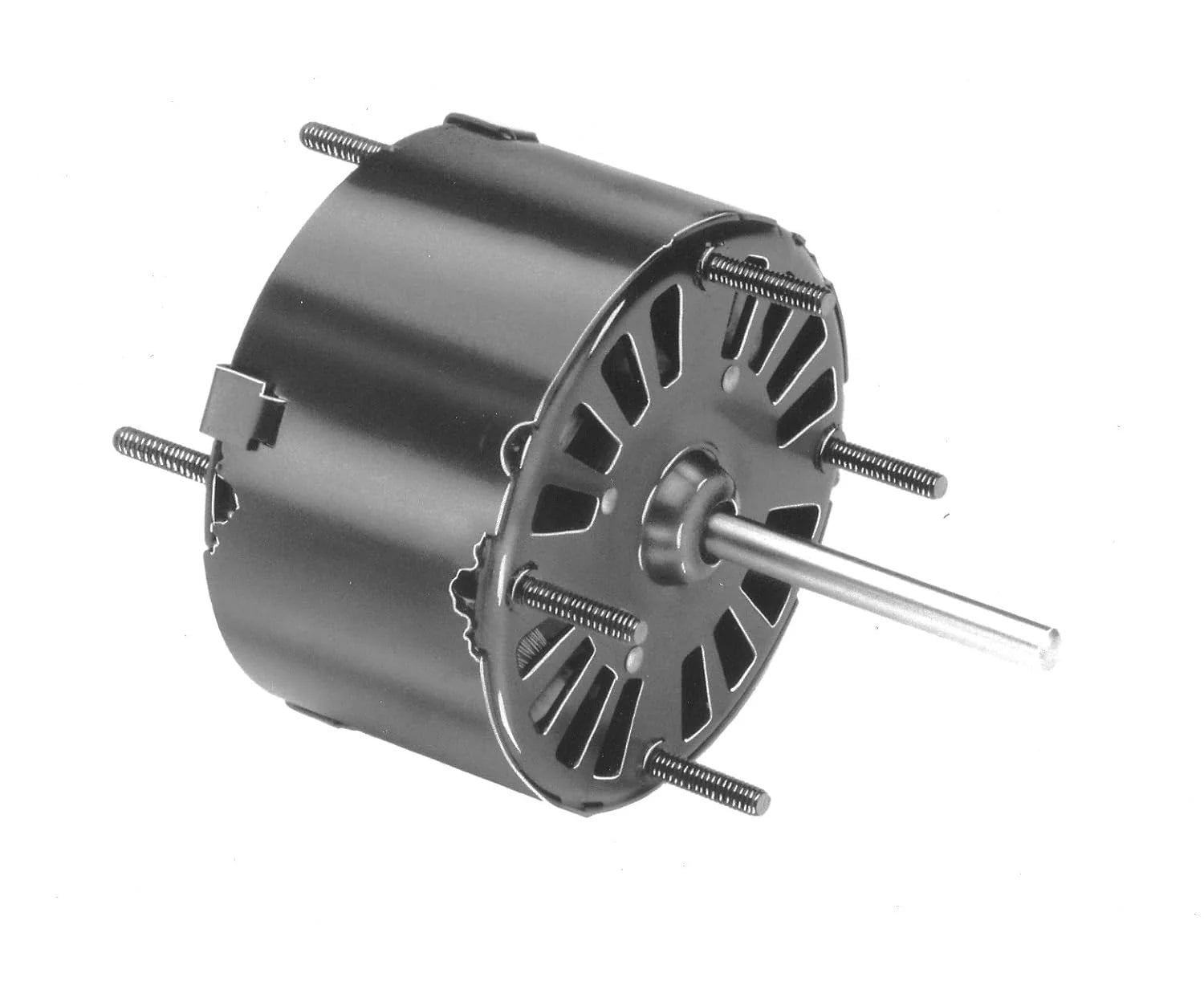

Fasco D603 Shaded Pole General Purpose Motor 1/50 HP 1500 RPM

Product Description

The Fasco D603 is a shaded pole general-purpose motor. It operates at one-fiftieth horsepower and has a speed of one thousand five hundred revolutions per minute. This motor is designed for a voltage of one hundred fifteen volts and uses 0.9 amps. The motor includes a sleeve bearing and is suitable for clockwise rotation.

• Power: 1/50 HP
• Speed: 1500 RPM
• Voltage: 115 Volts

Product Highlights

This motor is a reliable choice for various applications. It has a compact frame diameter of three point three inches, making it easy to fit in tight spaces. The open ventilated design allows for effective cooling during operation.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• MPN: D603
• Shaft Diameter: 0.25 inches

Technical Specifications

• Horsepower: 1/50 HP
• Amperage: 0.9 Amps
• RPM: 1500 RPM
• Voltage: 115 Volts
• Insulation Class: B
• Mounting Type: Extended Studs
• Rotation: Clockwise Shaft End
• Overload Protection: Thermally Protected
• Usage: General Purpose
