Fasco D5489 5.6-Inch Diameter PSC Motor 1/3-1/4 HP 208-230 Volts

Product Description

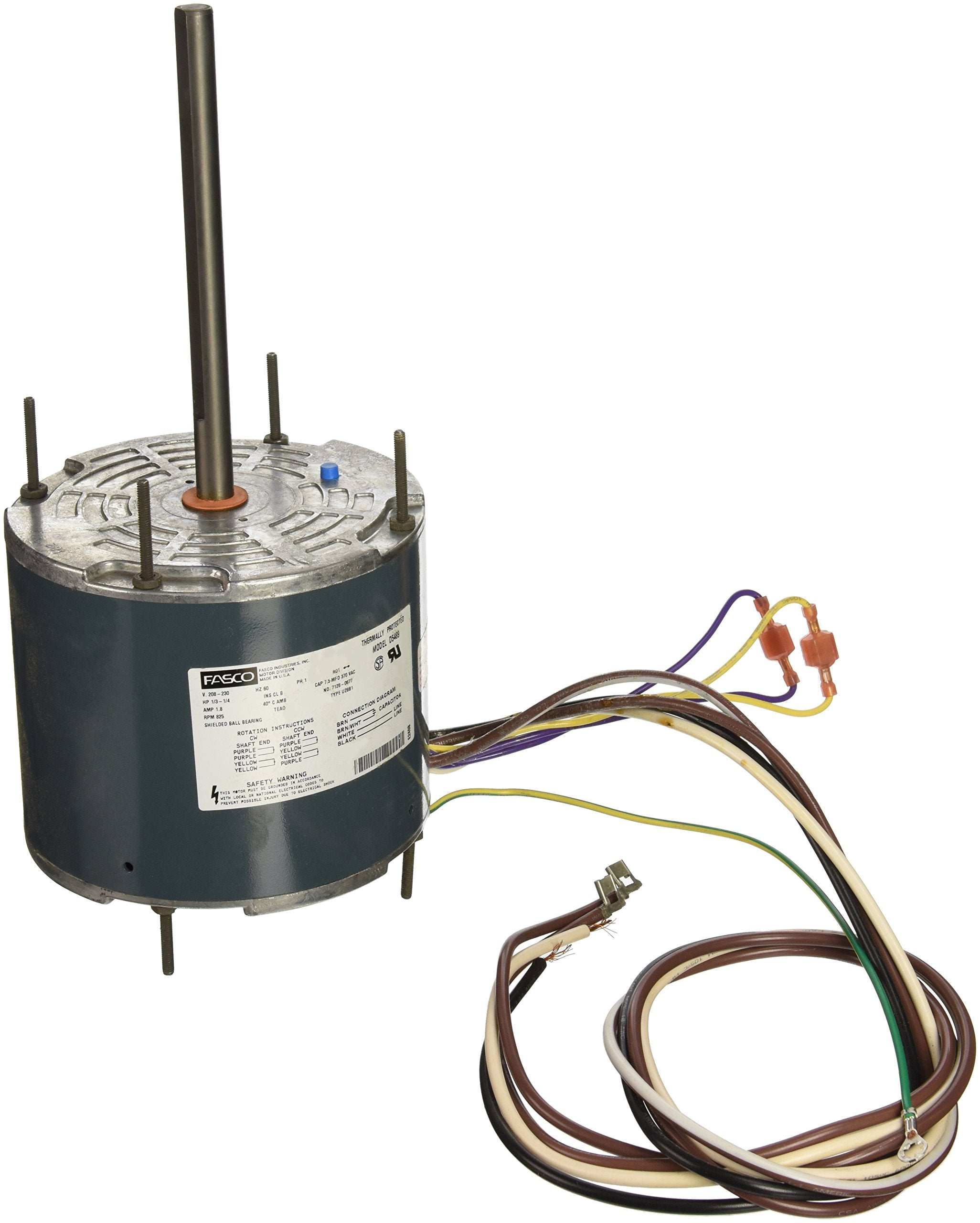

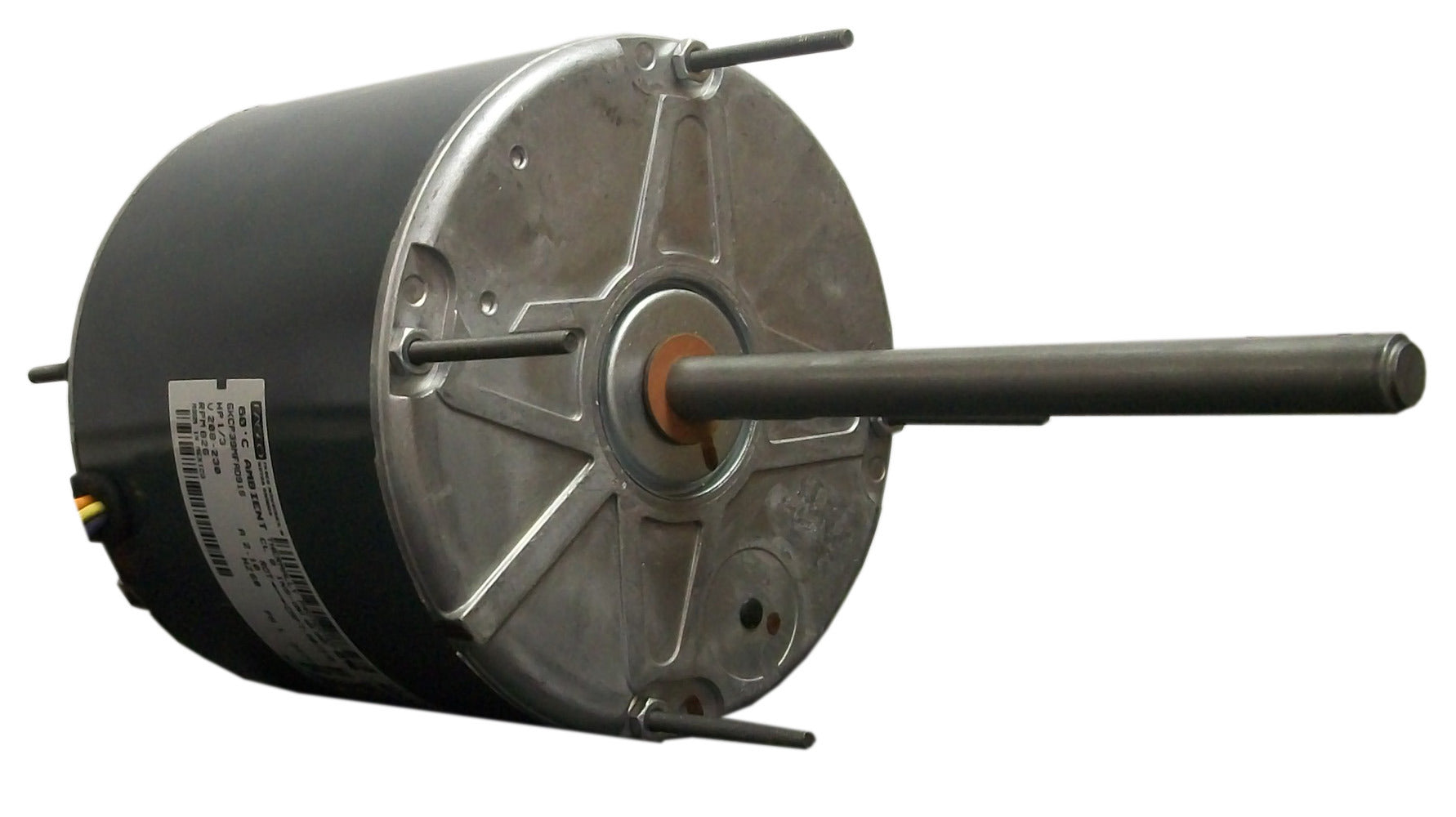

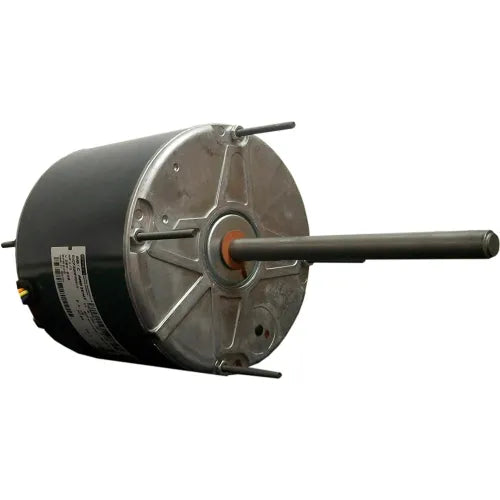

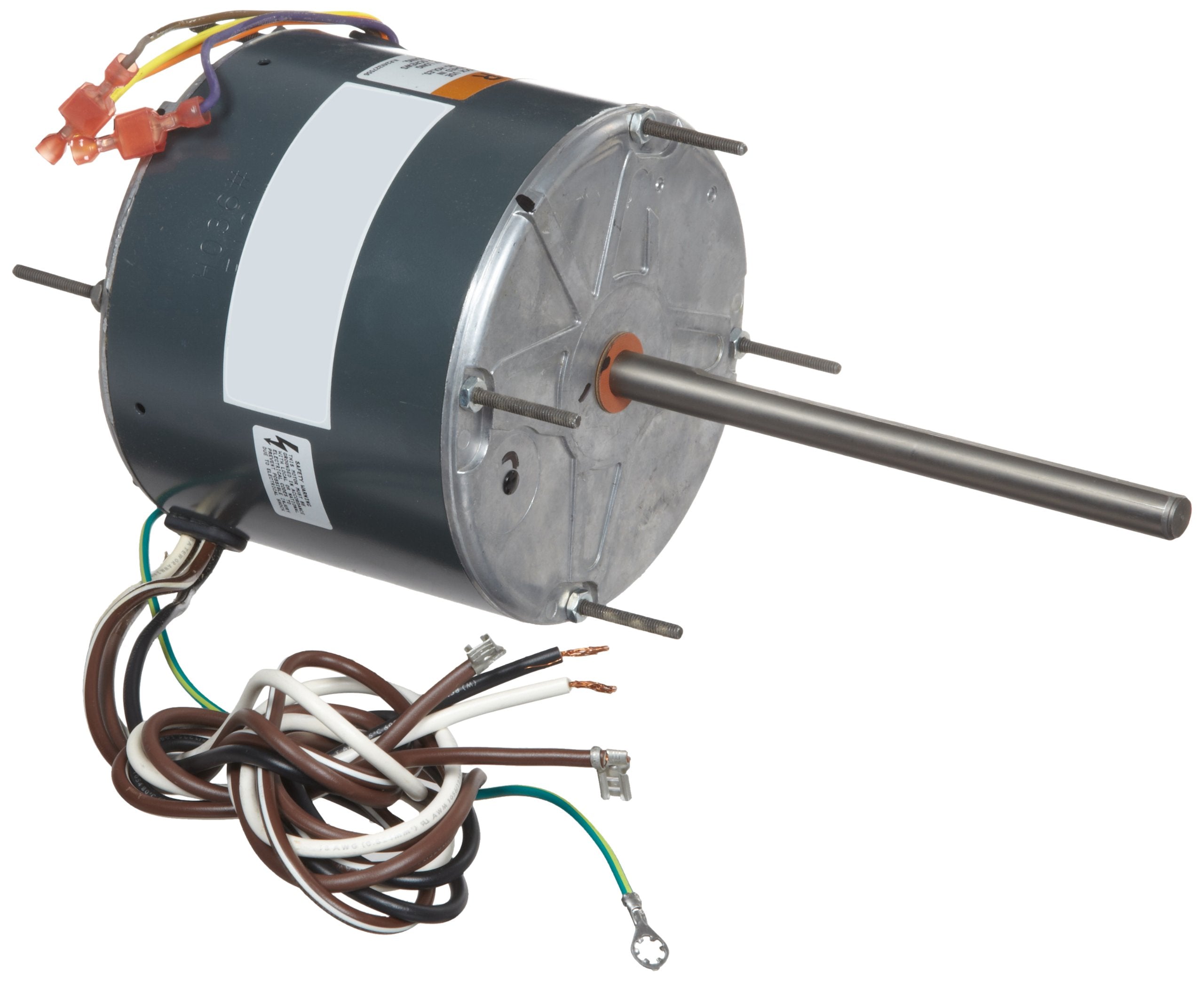

The FASCO D5489 is a 5.6-inch diameter PSC motor designed to operate at 1/3-1/4 horsepower. This motor runs on 208-230 volts and reaches a speed of 825 RPM. It features a single speed, a current rating of 1.8 amps, and is built for REV rotation with ball bearing construction. It is well-suited for condenser fan applications and can easily replace existing motors.

• 5.6-Inch diameter for efficient airflow
• Durable ball bearing design for longevity
• Ideal for various HVAC applications

Product Highlights

This motor is ideal for trade professionals needing reliable performance in HVAC systems, ensuring consistent airflow in heating and cooling applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D5489

Technical Specifications

• Speed: 825 RPM
• Voltage: 208-230 Volts
• Horsepower: 1/3-1/4 HP
• Amperage: 1.8 Amps
• Frame: 48
• Phase: 1
• Rotation: CCW
• Bearing Type: Ball
• Enclosure Type: Totally Enclosed
• Number of Speeds: 1
• Thermal Protection: Automatic
• Capacitor Required: 5M 370V
• Shaft Dimension: 1/2-Inch x 6-5/8-Inch
• Material: Rolled Steel
• Insulation Class: B
• Ambient Temperature: 40°C
