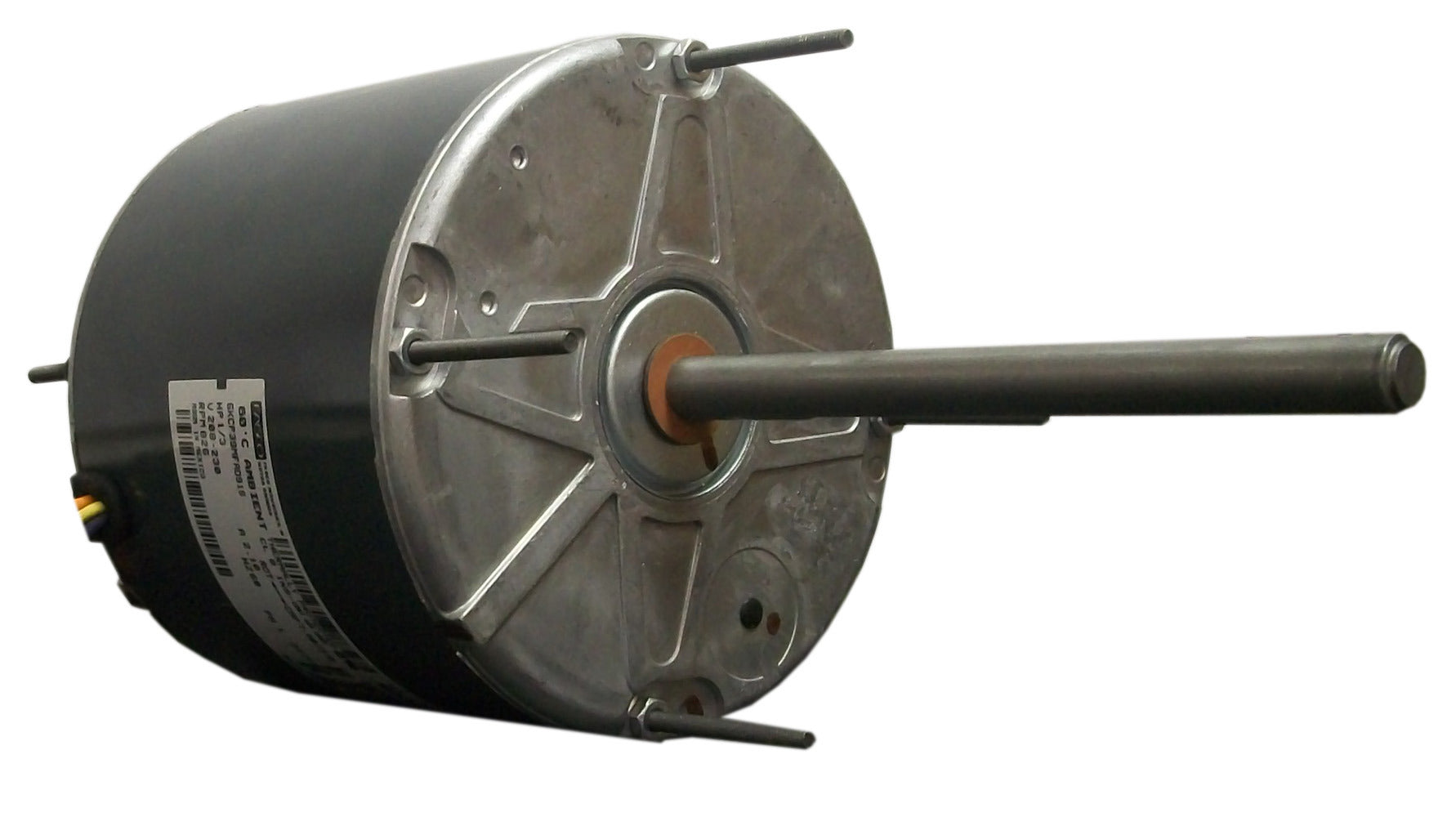

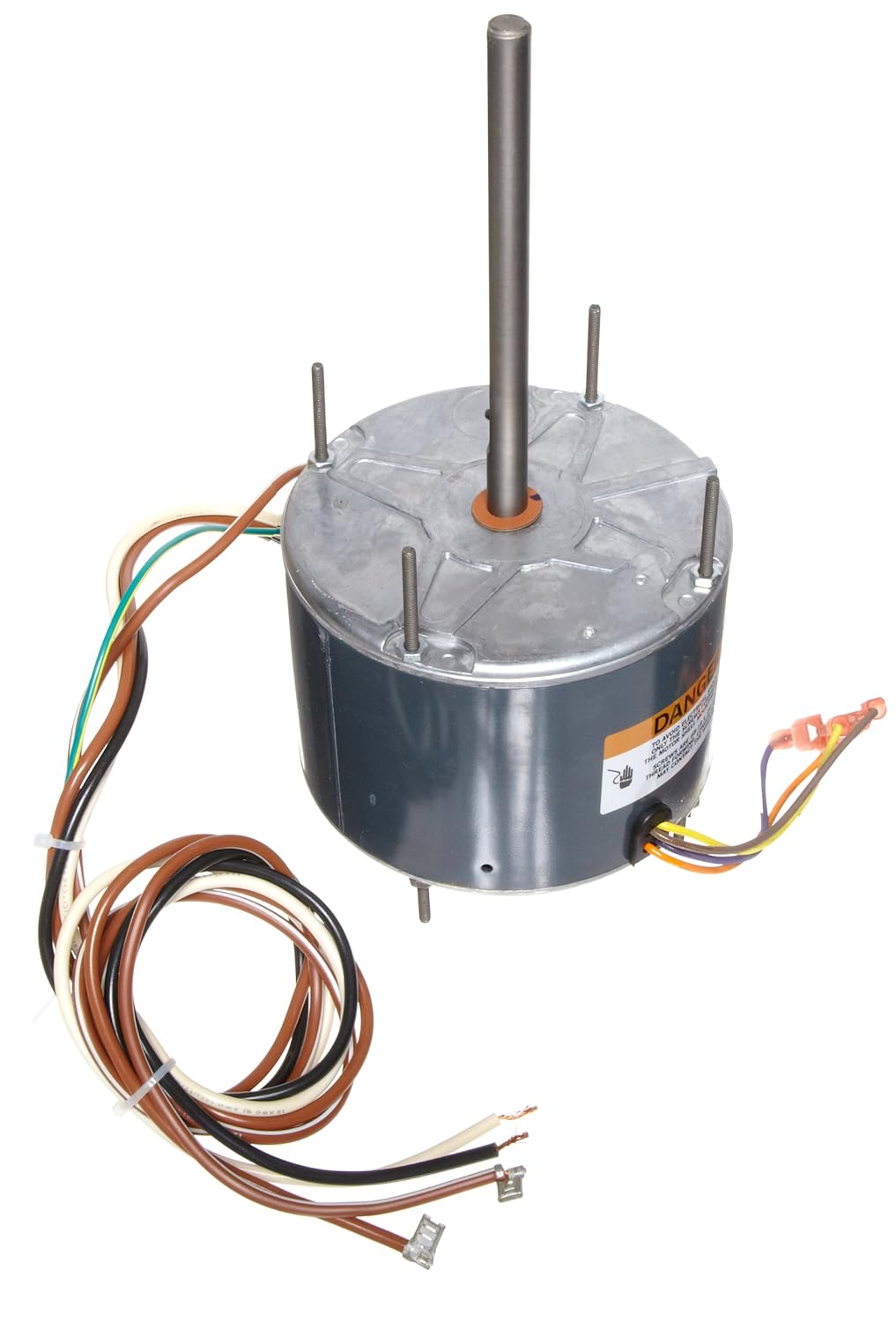

FASCO D5488 PSC Motor 1/6-1/8 HP 5.6 Inch Diameter

Product Description

The Fasco D5488 5.6-Inch Diameter PSC Motor is a reliable motor with a power range of 1/6-1/8 HP. It operates efficiently at 208-230 Volts and achieves a speed of 825 RPM. Designed specifically for condenser fan applications, this motor includes a reversible rotation and is built with ball bearing construction, ensuring durability.

• Diameter of 5.6 inches
• Permanent Split Capacitor design
• Totally enclosed for protection

Product Highlights

This motor is suitable for HVAC applications and provides consistent performance and durability under various conditions.

Product Information

Standard Information

• Brand: FASCO
• MPN: D5488

Technical Specifications

• Speed: 825 RPM
• Voltage: 208-230 Volts
• Frame: 48Z
• Hertz: 60 Hz
• Phase: 1
• Rotation: Reversible
• Horsepower: 1/6-1/8 HP
• Motor Type: Permanent Split Capacitor
• Bearing Type: Ball Bearing
• Enclosure Type: Totally Enclosed Air Over
• Full Load Amps: 2.1 FLA
• Number of Speeds: 1
• Mounting Location: Stud
• Thermal Protection: Automatic
• Capacitor Required: 5M 370V
• Diameter: 5.6 inches
• Mounting: Extended Studs
• Shaft Type: Double Flat
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6.5 inches
• Frequency: 60
• Insulation Class: B
• Ambient Temperature: 40°C
• Service Factor: 1.0
• Frame Length: 3.57 inches
• C Dimension: 10.81 inches
