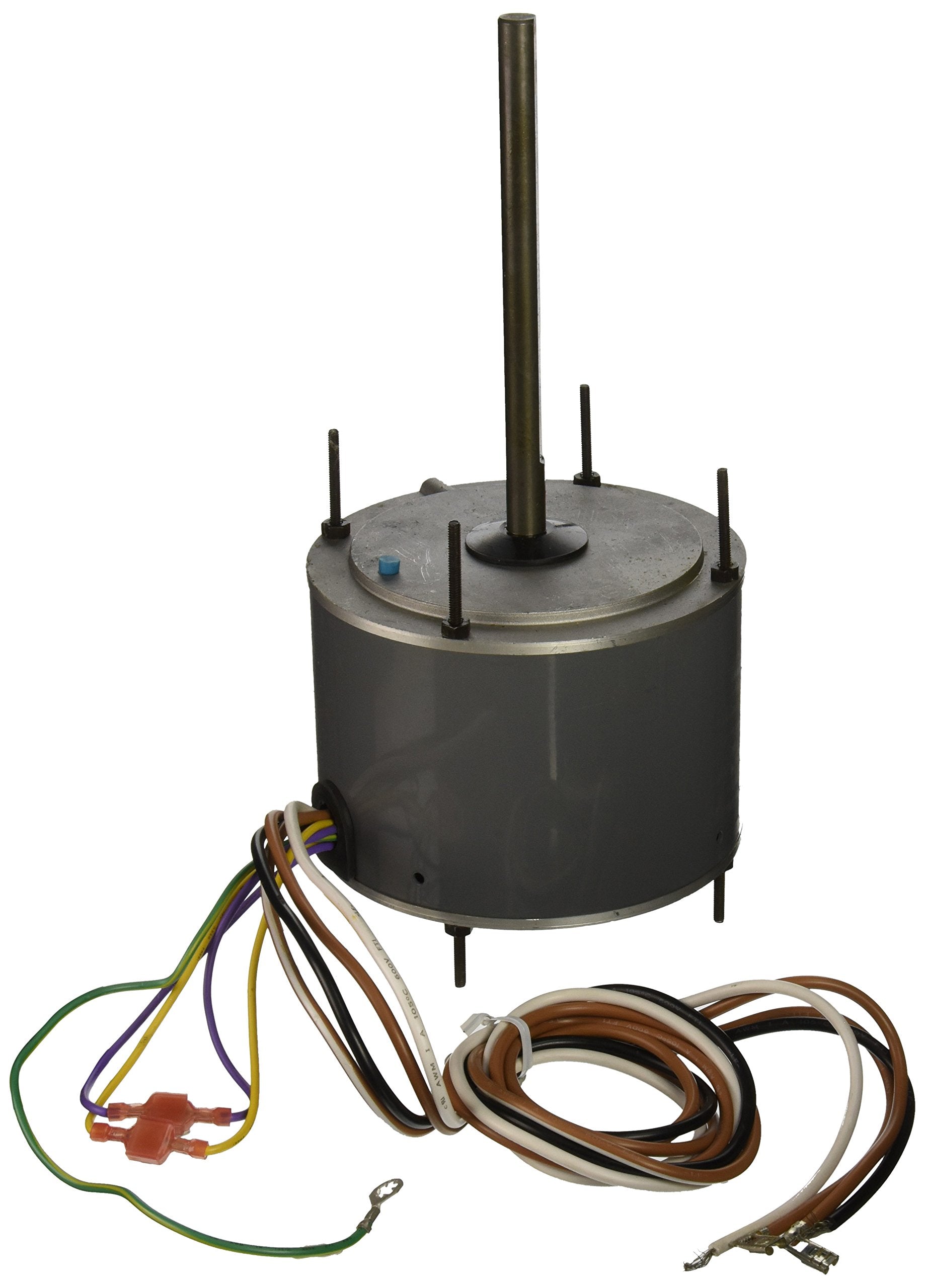

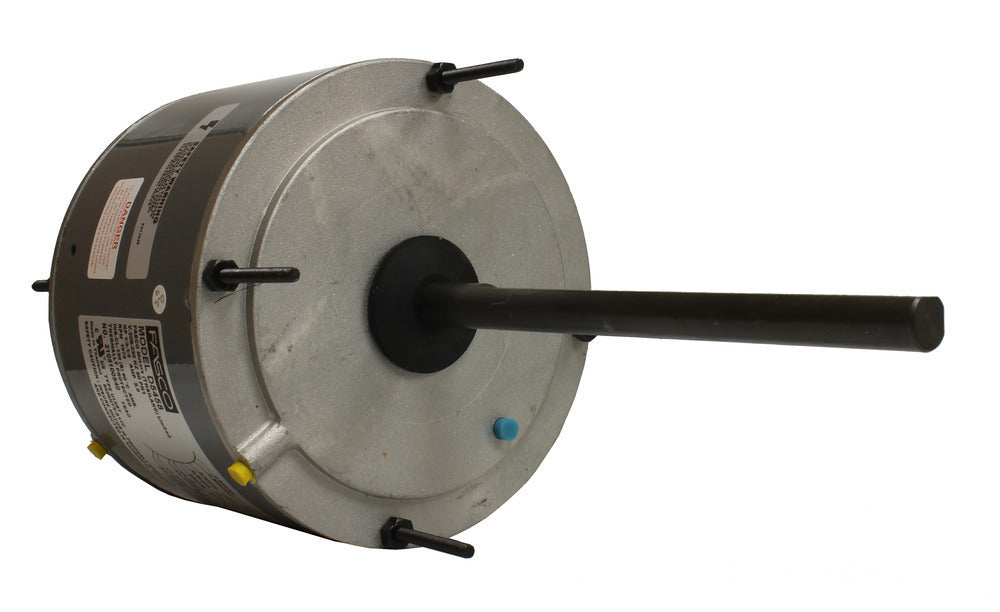

Fasco D5458 Condenser Fan Motor 208-230V 1/3-1/4-1/5 HP 1075 RPM

Product Description

The Fasco D5458 Condenser Fan Motor is a reliable OEM authorized part, suitable for various Fasco models. With a power rating of 1/3 to 1/5 HP, this motor operates at 208-230 volts and is designed to run at 1075 RPM. Manufactured in the United States, this motor is an essential component for HVAC applications.

• This is an O.E.M. authorized part
• Fits various Fasco models
• OEM Part Number D5458

Product Highlights

This condenser fan motor features a permanent split capacitor, reversible rotation, and an automatic overload protector. It is encased in totally enclosed air over design, ensuring protection against dust and other particles. The motor's shaft is double flat and made of rolled steel for durable performance.

Product Information

Standard Information

• Brand: Fasco
• MPN: D5458

Technical Specifications

• Electrical Type: Permanent Split Capacitor
• HP: 1/3-1/4-1/5
• RPM: 1075
• Frame: 48Z
• Diameter: 5.6 inches
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Voltage: 208-230
• Rotation: Reversible
• Overload: Automatic
• Material: Rolled Steel
• Mounting: Extended Studs
• Amperage: 2.0
• Shaft Type: Double Flat
• KW: 0.25
• Shaft Diameter: 0.5 inches
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 6.7 inches
• Insulation Class: B
• Ambient Temperature: 60°C
• Mounting Holes: In Shell
• Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied)
