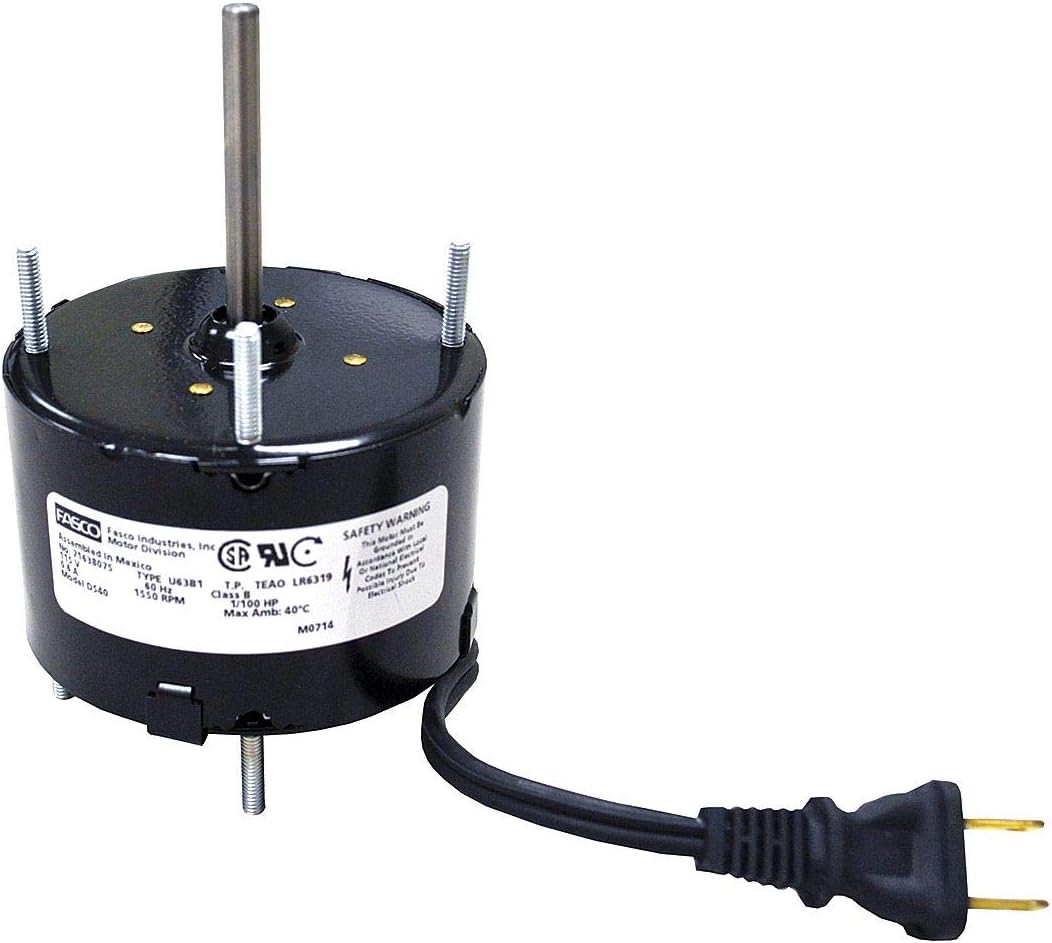

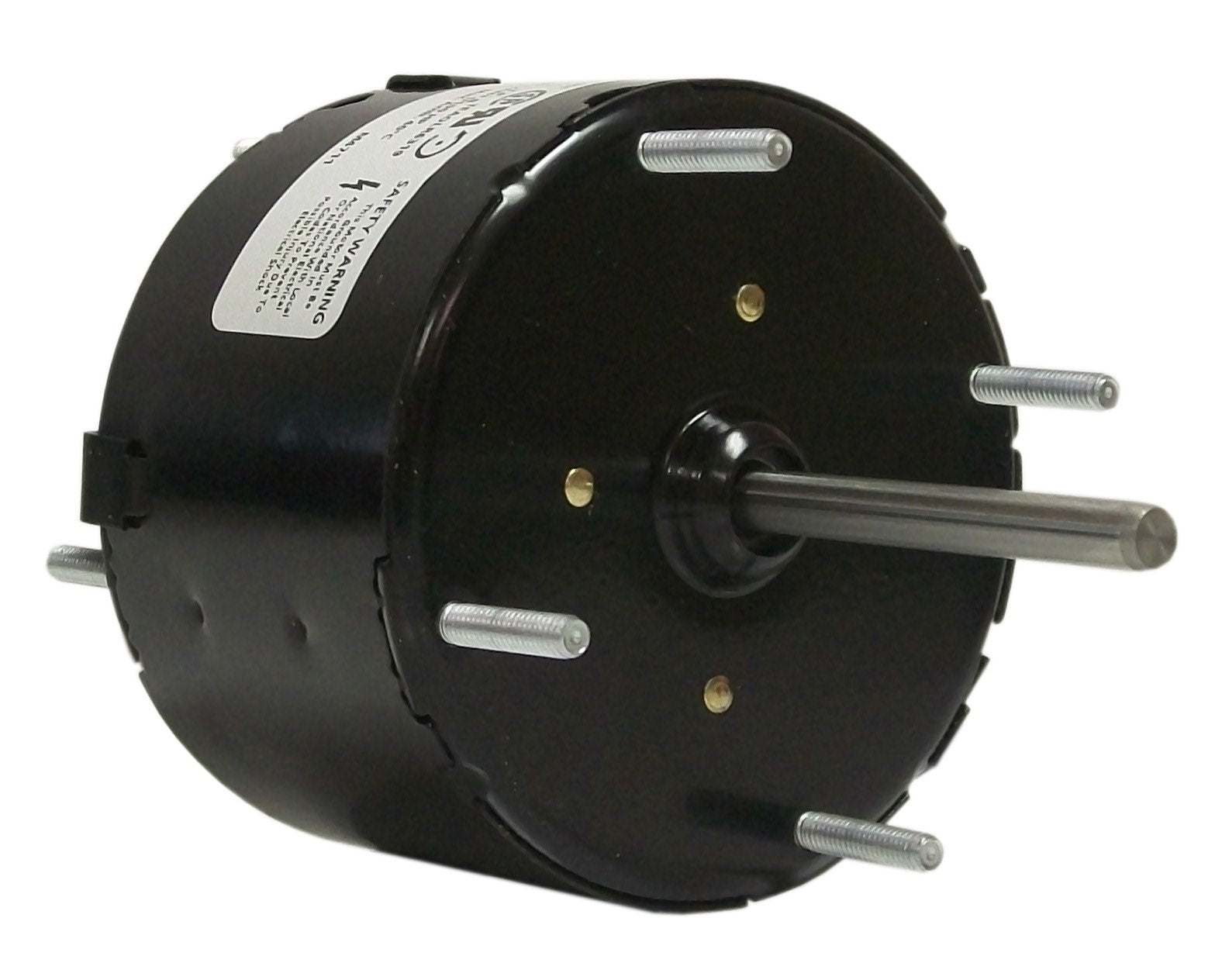

Fasco D540 Motor 1/100 HP 1550 RPM 115 Volts Replacement Parts

Product Description

The Fasco D540 Motor is a reliable component widely used for various applications. With its 1/100 horsepower and 1550 RPM, this motor is built for performance. It operates at 115 volts and offers consistent power for your needs.

• 1/100 Horsepower
• 1550 RPM
• 115 Volts

Product Highlights

The Fasco D540 motor is designed for efficiency and durability. It features a shaded pole motor type with totally enclosed air-over design, ensuring optimal performance in demanding environments. The motor is thermally protected and has a clockwise shaft end rotation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D540

Technical Specifications

• Horsepower: 1/100
• Speed: 1550 RPM
• Voltage: 115 Volts
• Current: 0.6 Amps
• Enclosure: Totally Enclosed Air Over
• Rotation: Clockwise Shaft End
• Material: Steel
• Bearings: Sleeve
• Phase: Single
• Shaft Diameter: 0.25 inches
• Shaft Extension: 2.3 inches
• Insulation Class: B
• Mounting Type: Extended Studs
• Ambient Temperature: 40°C
• Certification: CSA, UL Recognized
