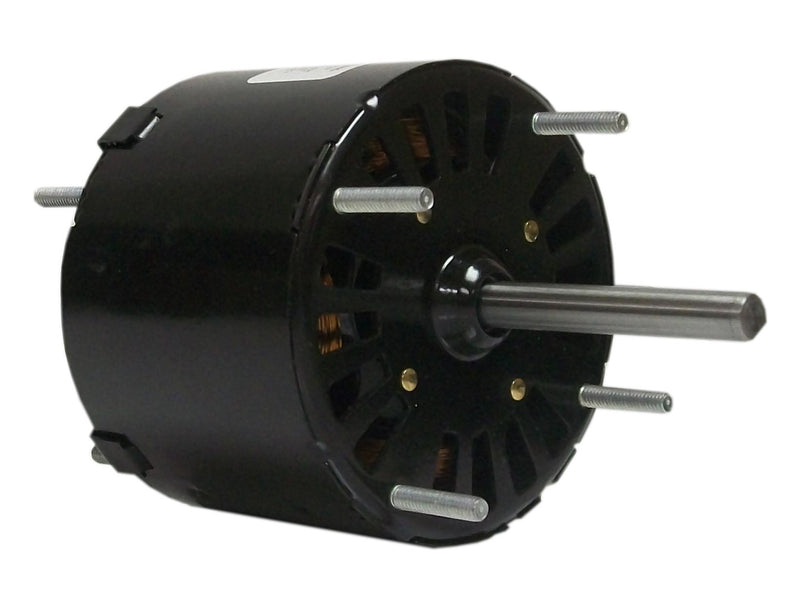

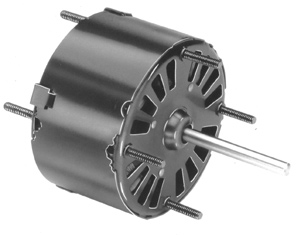

FASCO D532 Fan and Blower Motor 1/30-1/125 HP 1550 RPM

Product Description

The FASCO D532 is a fan and blower motor with a variable power range from one over thirty to one over one hundred twenty-five horsepower. This motor operates at one hundred fifteen volts and has a speed of one thousand five hundred fifty RPM. With a diameter of three point three inches, it is suitable for various air-moving applications.

• General purpose motor for versatile use
• Thermal protection for safe operation
• Features mounting studs for easy installation

Product Highlights

The FASCO D532 motor is designed for fans, HVAC systems, pumps, and compressors. It provides reliable performance and easy installation thanks to its sleeve bearings and extended mounting studs.

Product Information

Standard Information

• Brand: FASCO
• MPN: D532

Technical Specifications

• Phase: 1
• Output HP: 1/30 - 1/125 HP
• Voltage: 115 V
• Speed: 1550 RPM
• Service Factor: 1
• Frame: 3.3 inches
• Enclosure: Open Air Over
• Thermal Protection: Yes
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.40/0.90 A
• Number of Speeds: 2
• Electrical Type: Shaded Pole
• Shaft Diameter: 0.313 inches
• Shaft Length: 1.5 inches
• Overall Length: 4.56 inches
• Frame Material: Steel
