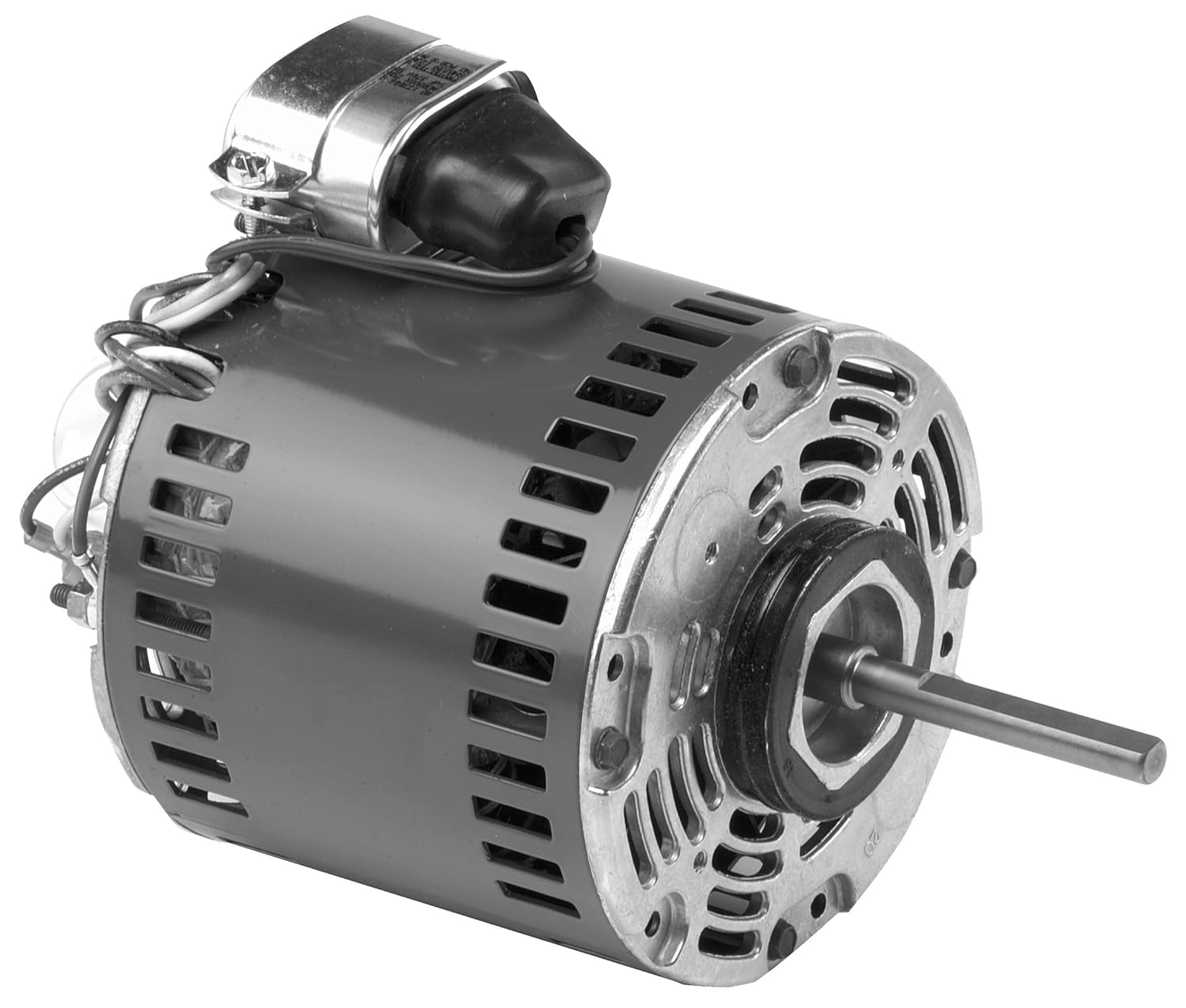

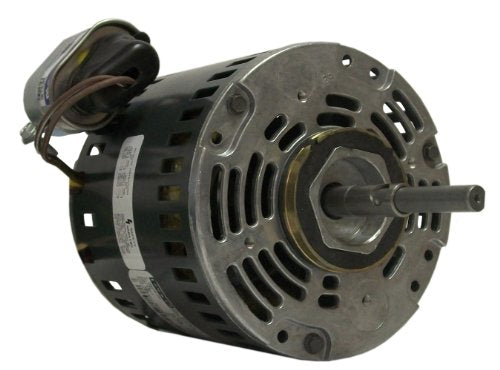

Fasco D497 Condenser Fan Motor 1/10 HP 1050 RPM 115/208-230V

Product Description

The Fasco D497 is a condensser fan motor designed for HVAC applications. With a horsepower rating of 1/10 and a speed of 1050 RPM, it operates efficiently in refrigeration systems. The motor supports dual voltage options of 115 or 208-230 volts and is rated at 2.0 to 1.0 amps. It is equipped with ball bearings for smooth operation and an open air over enclosure.

• Single phase, permanent split capacitor design
• Thermally protected for safety
• 3/8 inches diameter flat shaft

Product Highlights

Ideal for use in condenser fan applications, this motor is suitable for heat pumps and various cooling units. Its sturdy construction and reliable components ensure longevity and consistent performance.

Product Information

Standard Information

• Brand: Fasco
• MPN: D497

Technical Specifications

• Horsepower: 1/10 HP
• Speed: 1050 RPM
• Voltage: 115/208-230 V
• Amperage: 2.0/1.0 A
• Frame Size: 42
• Mounting Type: Resilient Rings
• Enclosure Type: Open Air Over
• Shaft Diameter: 0.375 inches
