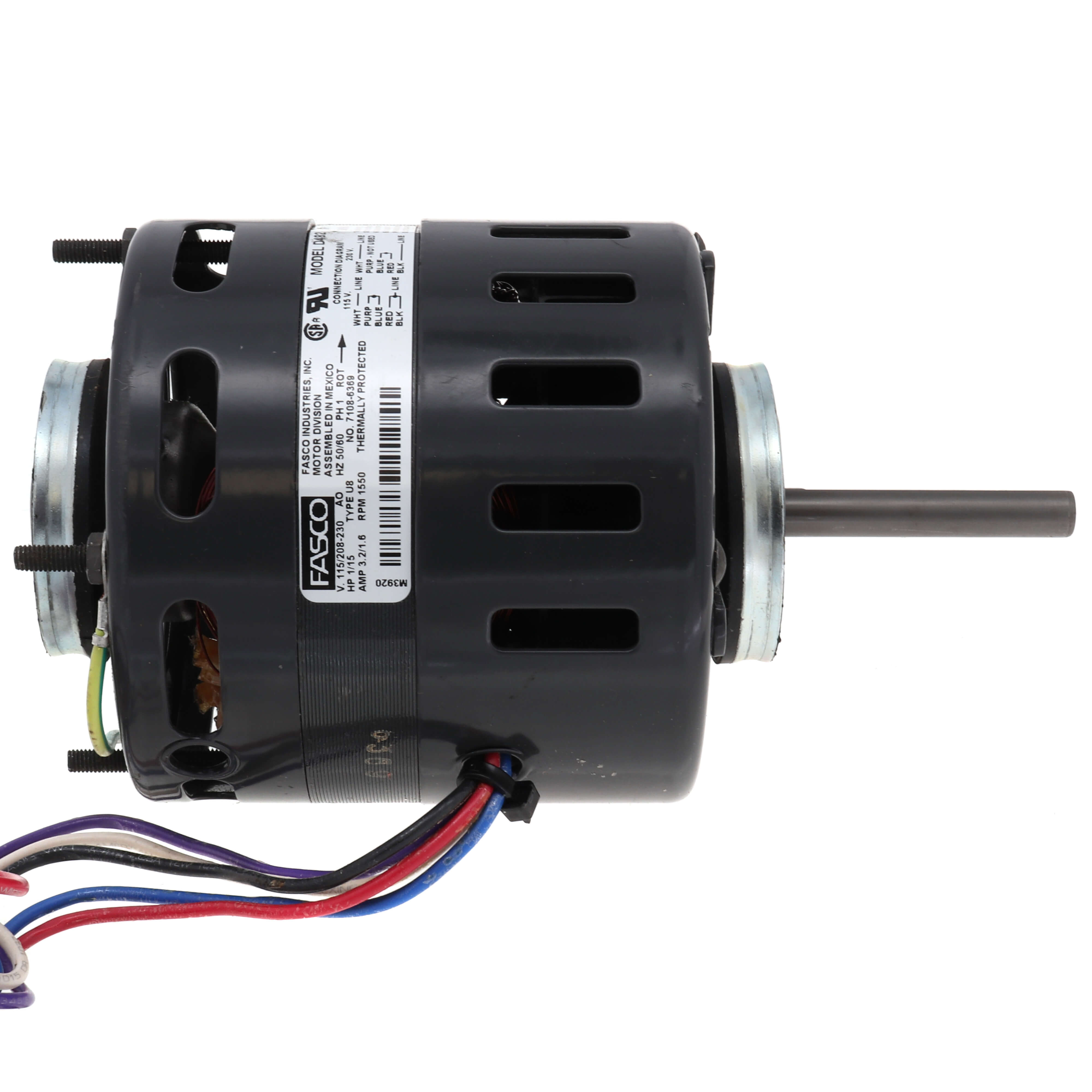

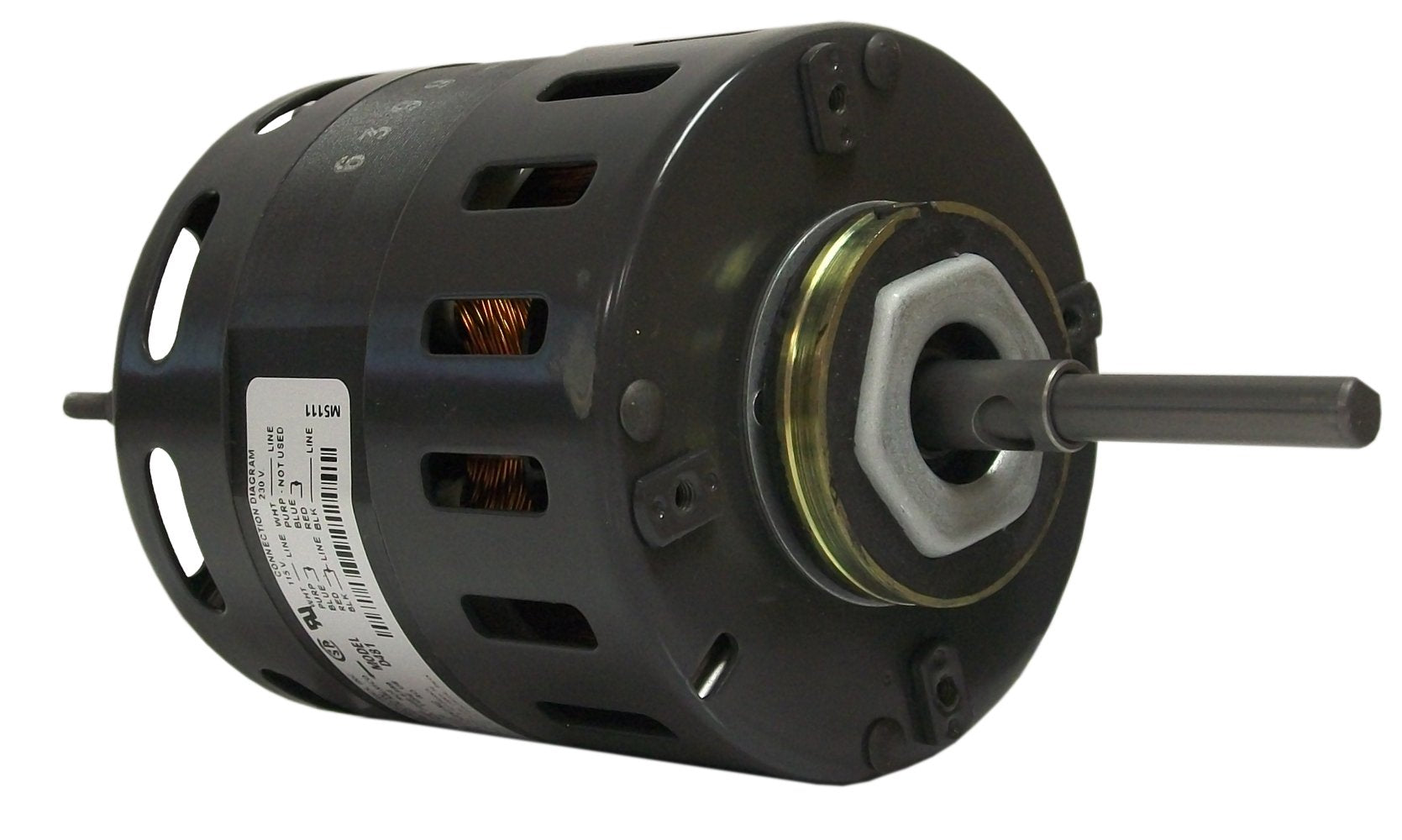

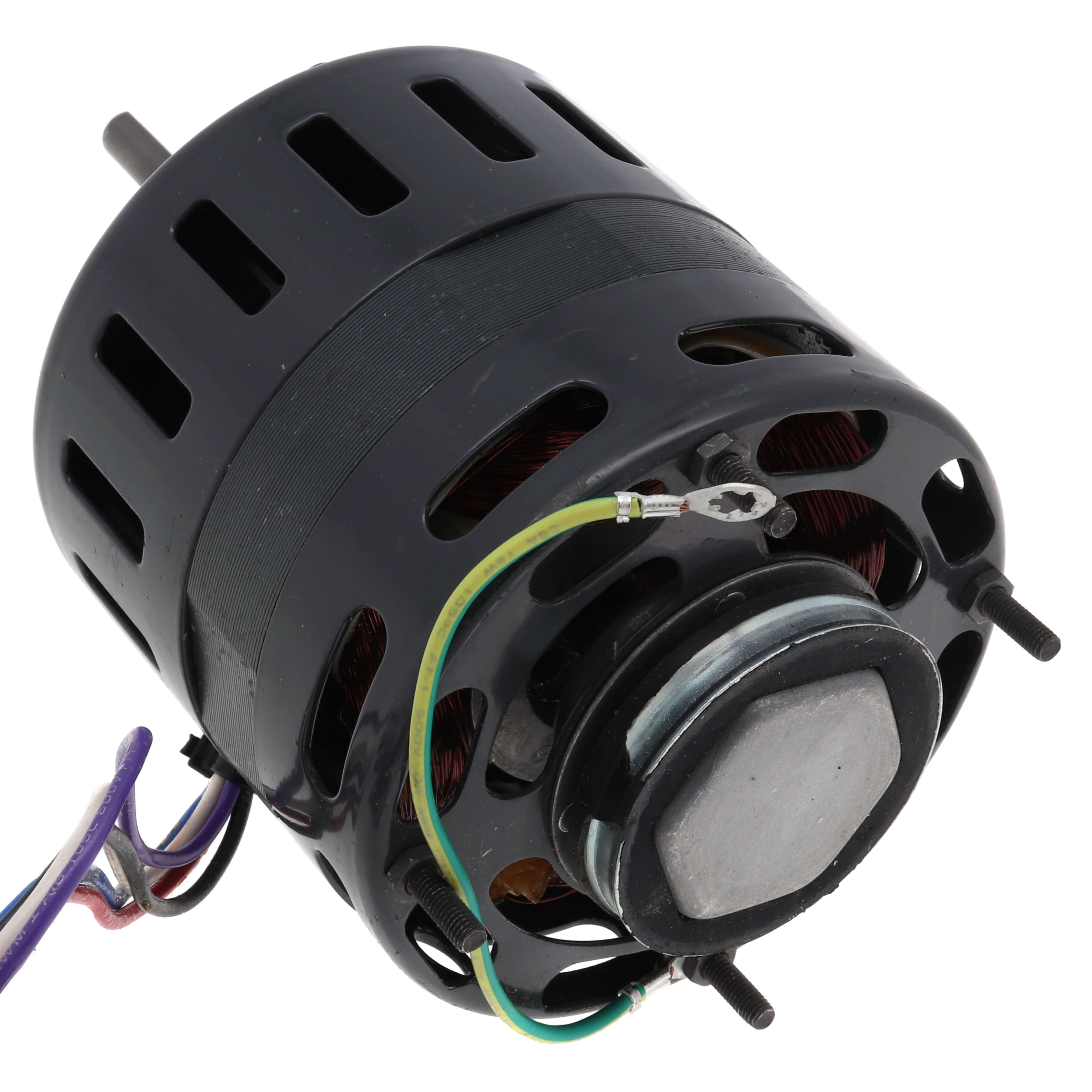

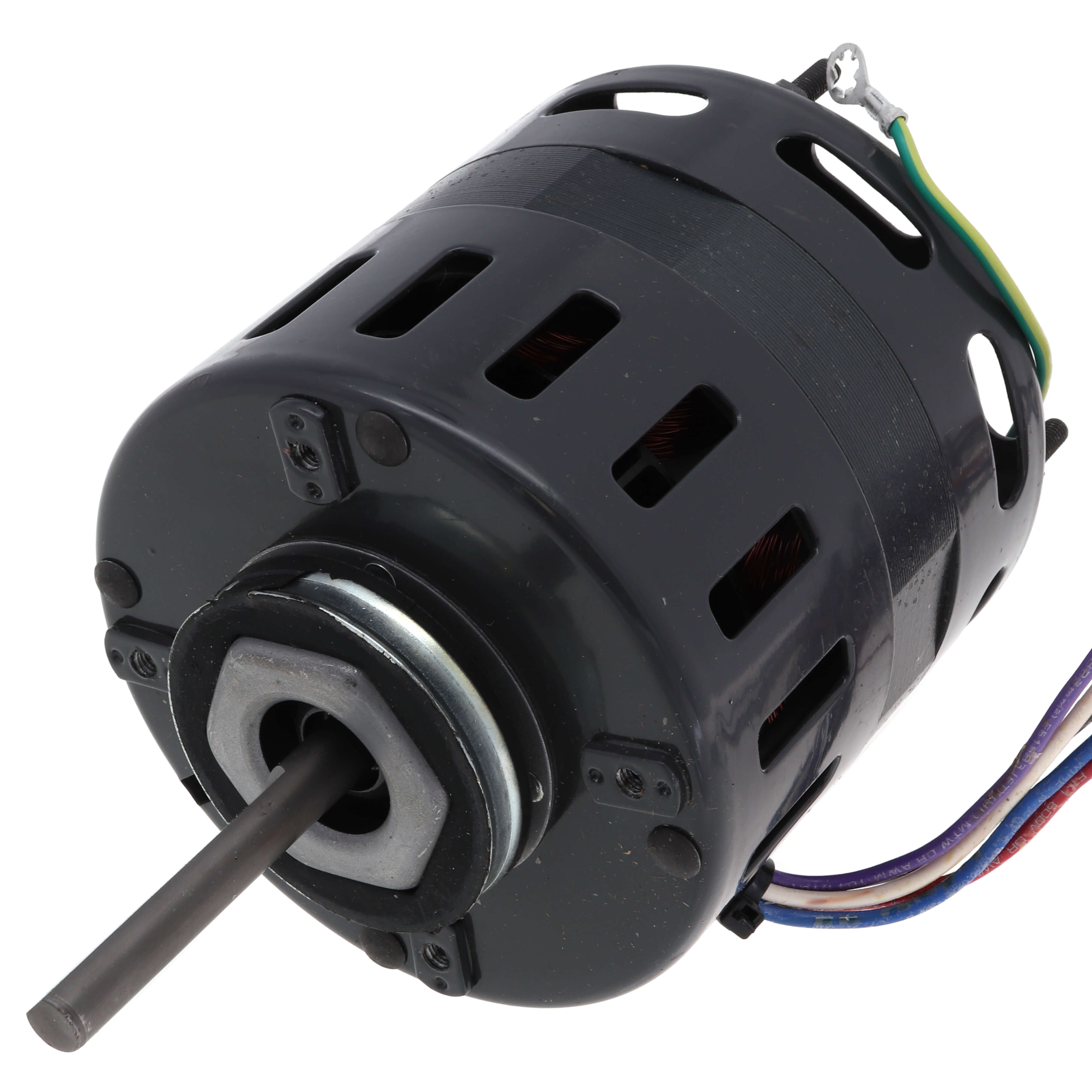

Fasco D482 4.4 inches Frame Open Ventilation Shaded Pole Refrigeration Fan Motor 1/15 HP

Product Description

The Fasco D482 4.4" Frame Open Ventilation Shaded Pole Refrigeration Fan Motor features a sleeve bearing and operates at 1/15 HP and 1550rpm. It is designed for 115/208-230V, 60Hz, with 3.2-1.6 amps and CW rotation. This motor is thermally protected and UL/CSA certified. It has a 3/8" diameter shaft by 3-1/8" length and a 4" motor length.

• Open Ventilation Shaded Pole Refrigeration Fan Motor
• Sleeve Bearing
• Thermally protected

Product Highlights

The Fasco D482 is ideal for refrigeration fan applications requiring open ventilation and reliable performance.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D482
• Country of Origin: Mexico

Technical Specifications

• Frame: 4.4"
• Application: Open Ventilation Shaded Pole Refrigeration Fan Motor
• Bearing: Sleeve
• Horsepower: 1/15 HP
• RPM: 1550rpm
• Voltage: 115/208-230V
• Frequency: 60Hz
• Amps: 3.2-1.6 amps
• Rotation: CW
• Certification: Csa/Ul
• Shaft Diameter: 3/8"
• Shaft Length: 3-1/8"
• Motor Length: 4"
• Electrical Type: Shaded Pole
• Enclosure: Open Air Over
• Phase: Single Phase
• Mounting: Resilient Ring - Extended Studs
• Shaft Type: Flat
• Ambient Temperature: 40°C
• Insulation Class: A
• Number of Speeds: 1
• Motor Type: Shaded Pole
• Thermal Protection: Automatic
• Motor Diameter: 4.4"
• Motor Shell Length: 4"
• Full Load Amps: 3.2/1.6A
• Motor Bearings: Sleeve
• Overall Length: 7.94"
• Motor Application: OEM Replacement
• Motor Shaft Rotation: Clockwise Shaft End
• Motor Enclosure Design: Open Air-Over
• Poles: 4.0
• Service Factor: 1.0
• KW: 0.05 kW
• Shaft Extension: 3.15 in
• Starting Type: Across The Line
• Duty: Air Over
• Current: 3.2/1.6 A
• UL: Recognized
• CSA: Y
• MPN: D482
• Motor Mounting Type: Resilient Rings - Extended Studs
• Motor Thermal Protection: Automatic
• Standards: UL Recognized, CSA Certified
• Body Dia.: 4.39"
• Stud Size: #10-32
• Motor Service Factor: 1.00
