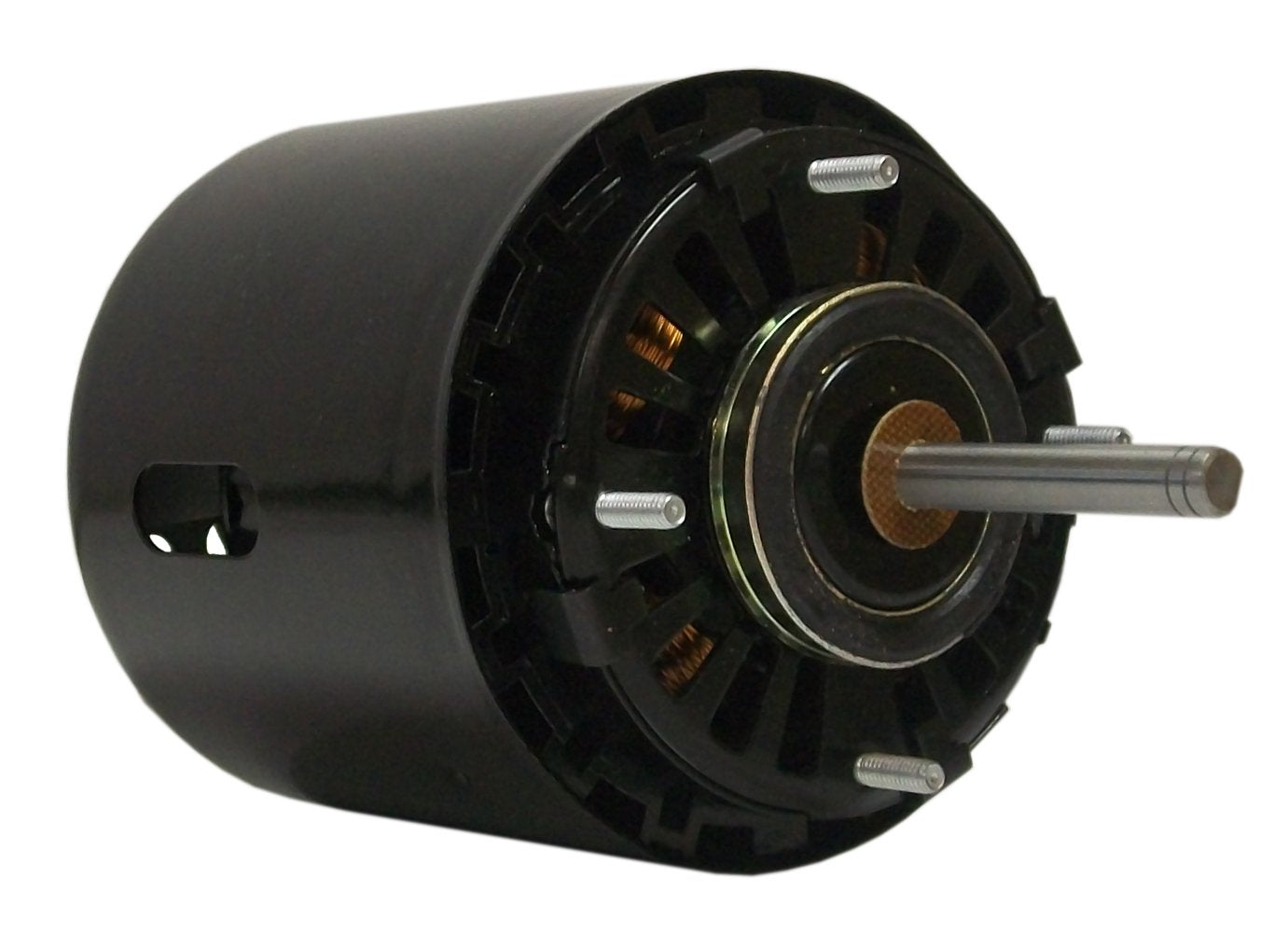

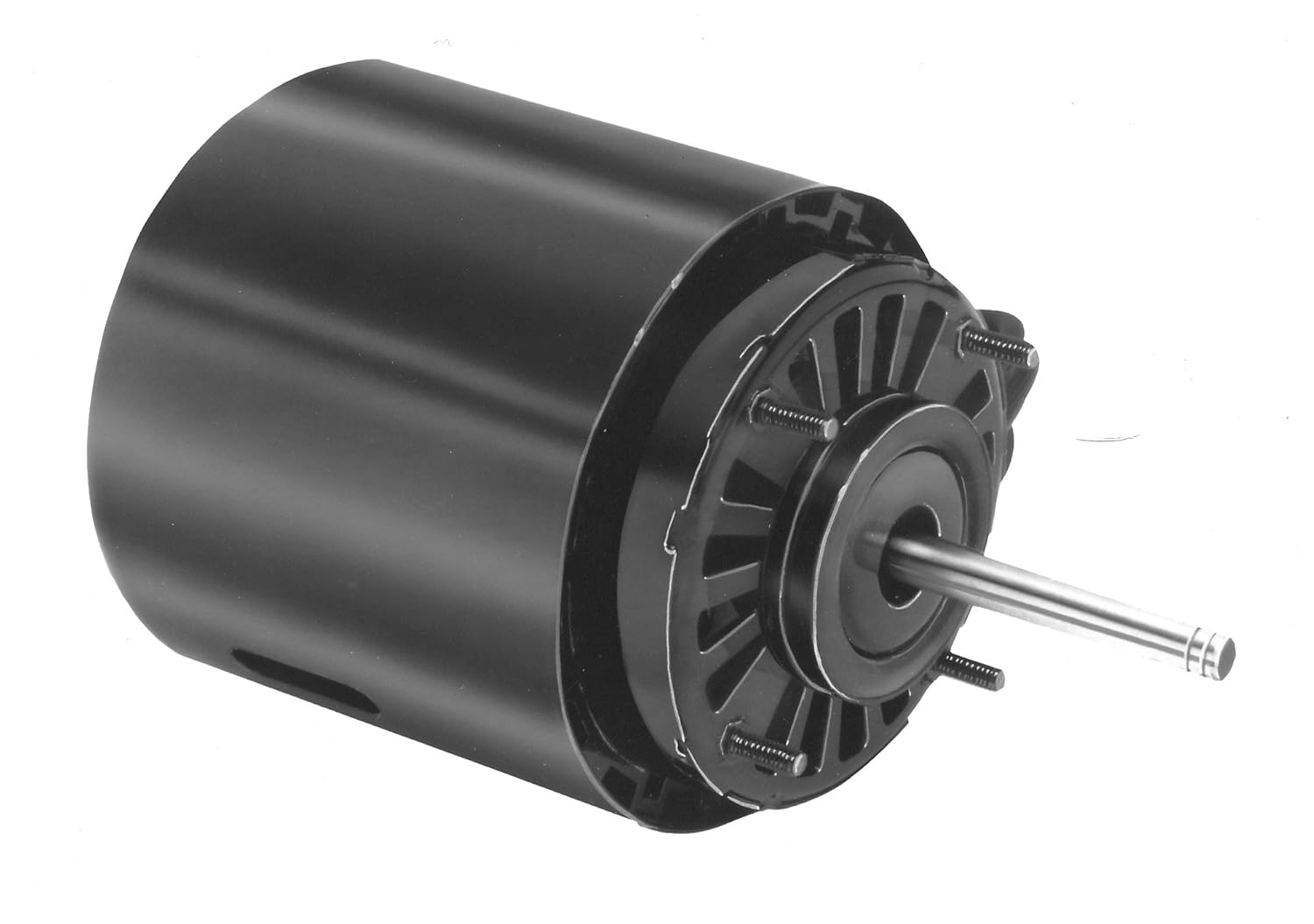

Fasco D477 Refrigeration Fan Motor 1/35HP 1550rpm 208-230V

Product Description

The Fasco D477 Refrigeration Fan Motor is a reliable option for cooling applications in refrigeration systems. Designed with a 3.3-inch frame and powered by a 1/35 HP motor, it delivers consistent performance at 1550 RPM and is compatible with a voltage range of 208 to 230 volts.

• Quiet and efficient cooling
• Easy installation with extended studs
• Thermally protected motor

Product Highlights

This motor features a shaded pole electrical type and a counterclockwise shaft end rotation. The open air over enclosure design ensures adequate cooling, while the sleeve bearings provide smooth operation. Suitable for various refrigeration systems, the Fasco D477 is known for its durability and performance.

Product Information

Standard Information

• Brand: Fasco
• MPN: D477

Technical Specifications

• Horsepower: 1/35 HP
• Speed: 1550 RPM
• Voltage: 208-230 Volts
• Amperage: 0.80 amps
• Shaft Diameter: 0.313 inches
• Shaft Extension: 1.65 inches
• Bearing Type: Sleeve
• Motor Enclosure: Open Air Over
• Phase: Single
• Material: Steel
• Insulation Class: B
• Rotation: Counterclockwise Shaft End
• Mounting Type: Extended Studs
