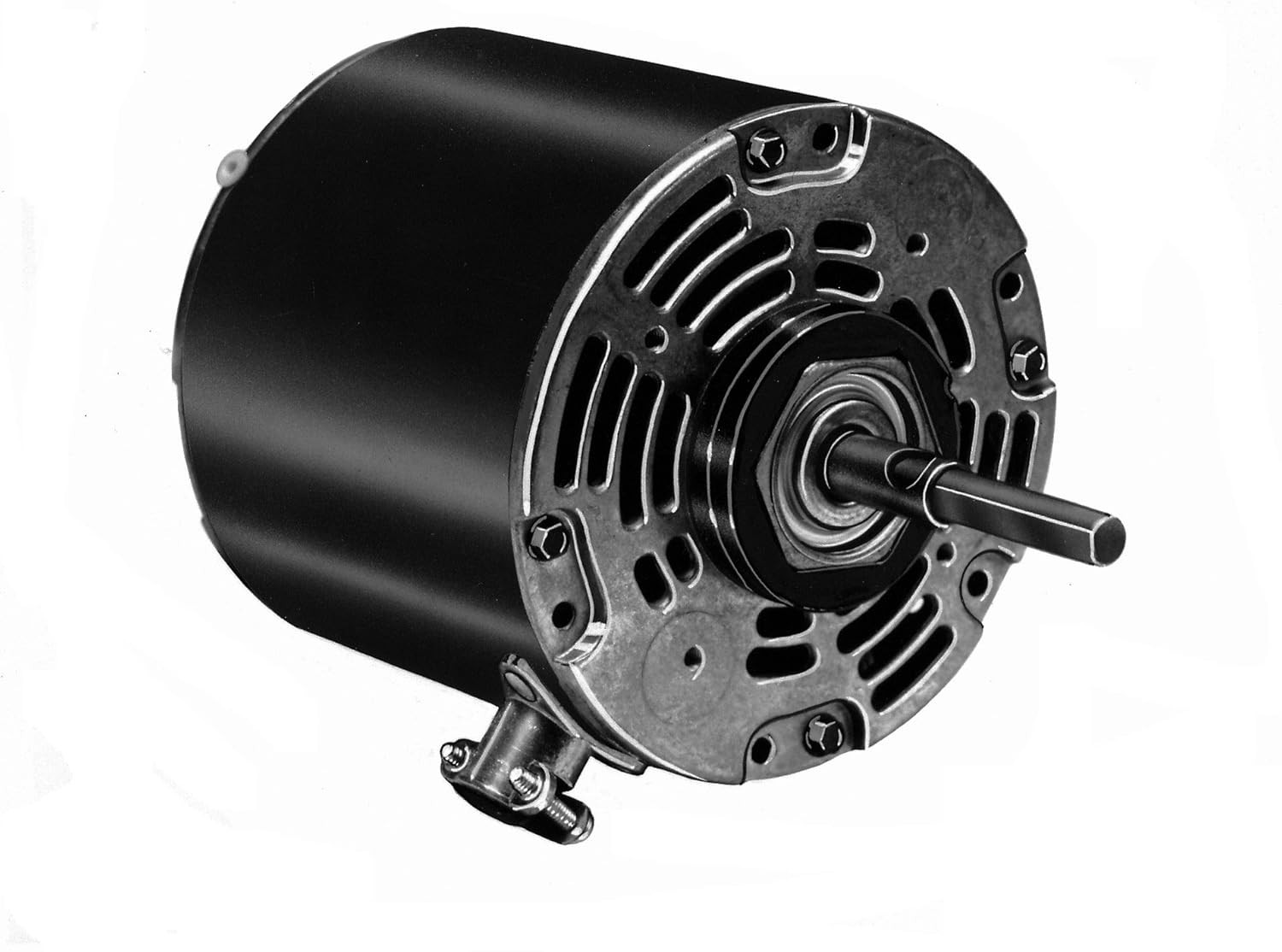

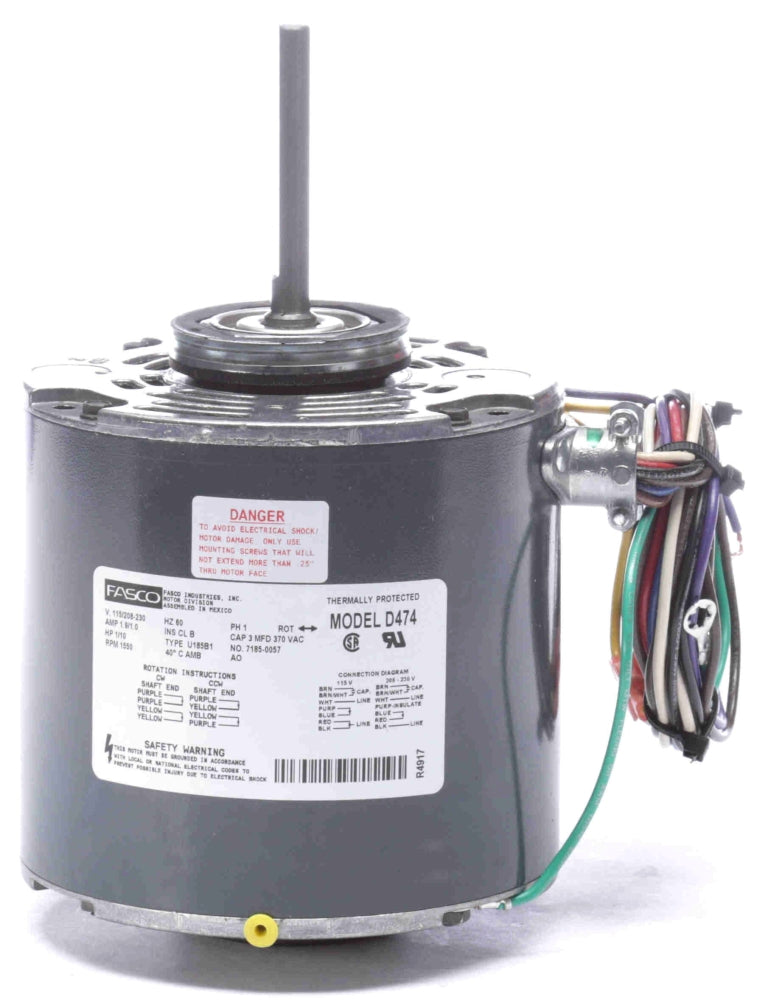

Fasco D474 1/10 HP 1550 RPM Open Ventilated Split Capacitor Refrigeration Fan Motor 4-Pole

Product Description

The Fasco D474 is a 1/10 HP, 1550 RPM refrigeration fan motor. It is an open ventilated, permanent split capacitor motor designed for refrigeration applications.

• 1/10 HP motor
• 1550 RPM speed
• Semi-enclosed and open air-over

Product Highlights

This refrigeration fan motor is ideal for use in condenser fans and heat pumps. It is UL recognized and CSA certified for safety and reliability. The motor features reversible rotation and automatic overload protection.

Product Information

Standard Information

• Power Rating: 1/10 HP
• Voltage Rating: 115/208 to 230 Volt AC 1-Phase

Technical Specifications

• Speed Rating: 1550 RPM
• Enclosure Type: Semi Enclosed, Open Air-Over
• Motor FLA: 1.9/1 Amp
• Reversible: Yes
• Service Factor: 1
• NEMA Frame Size: 42
• Insulation Class: B
• Frame Material: Rolled Steel
• Mounting: Resilient Ring
• Weight: 9 Pound
• Application: Condenser Fan, Heat Pump
• Approval: UL, CSA
• Type: Permanent Split Capacitor
• Shaft Type: Flat
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 4
• Size: 5 Inch Diameter x 8.63 Inch Length
• Frame Length: 4.38 Inch
• Shaft Size: 0.375 Inch Diameter x 3.25 Inch Length (Extension)
• Starting Method: Across the Line
• Ambient Temperature Rating: 40 Deg C
• Includes: 30 Inch Lead
