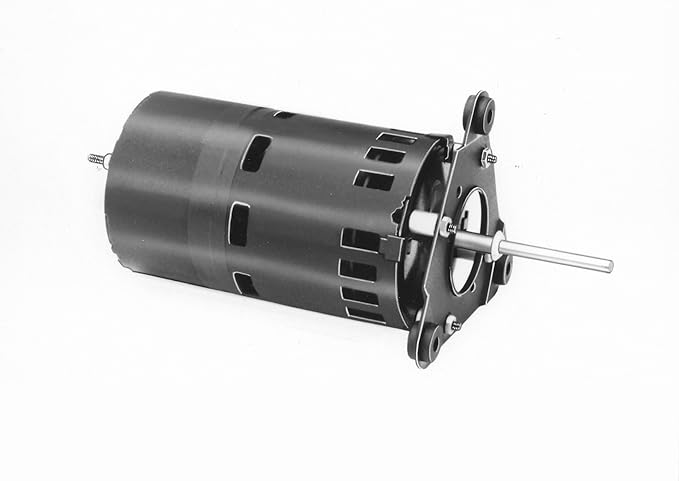

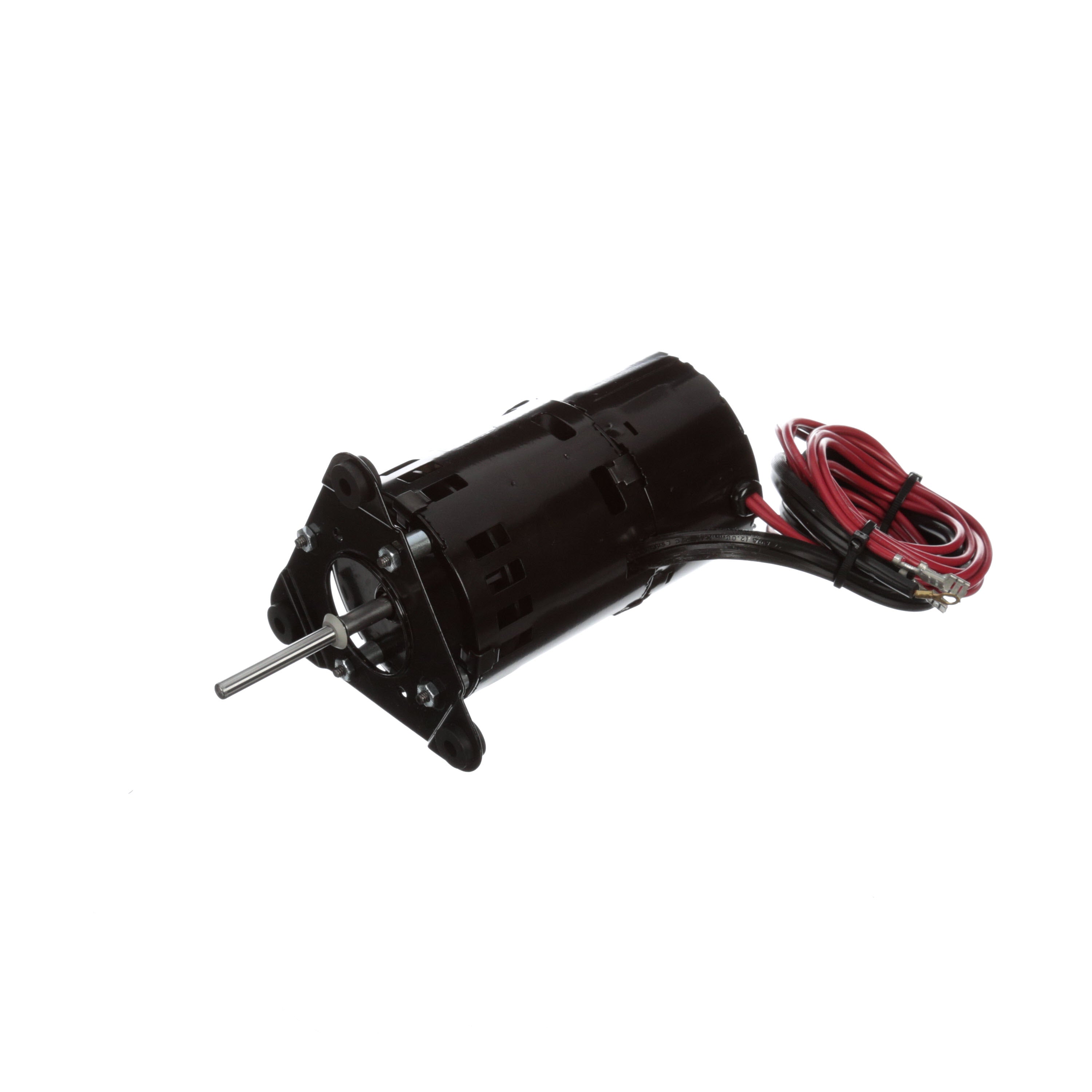

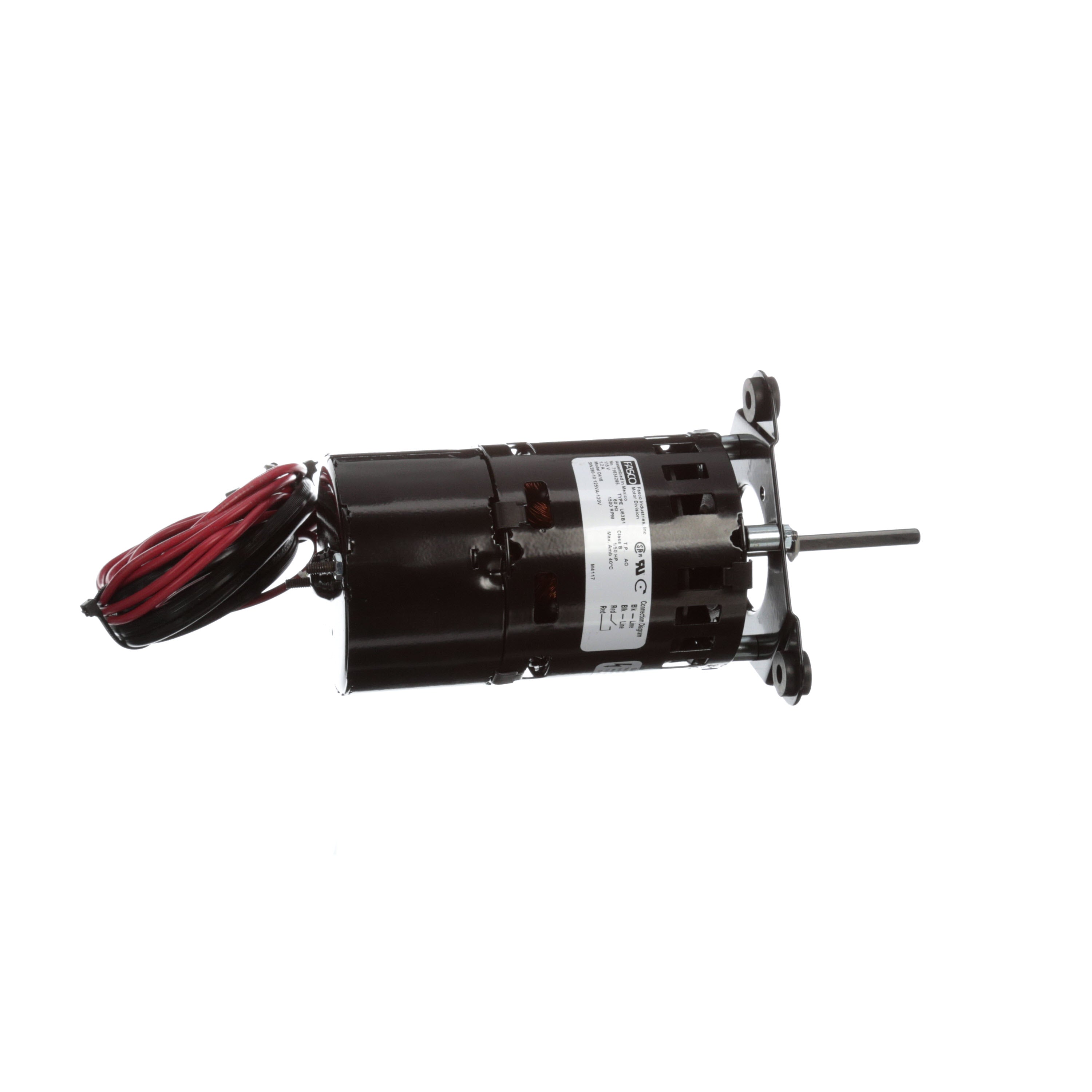

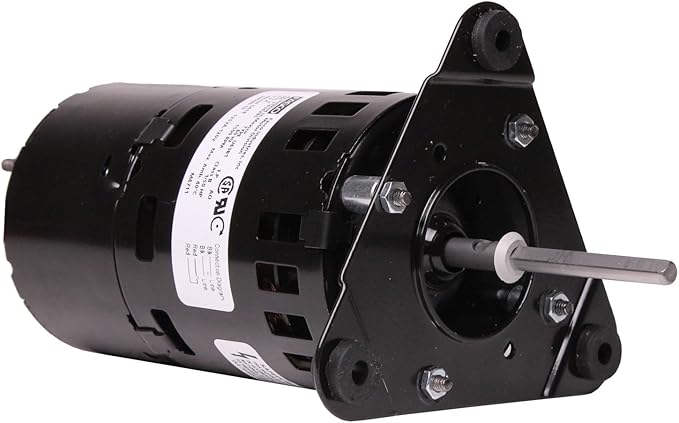

FASCO D418 Draft Inducer Motor 1/50 HP 3.3 IN

Product Description

The FASCO D418 draft inducer motor features a power rating of 1/50 HP and a diameter of 3.3 inches. This motor is designed with thermal protection and features an open shell and enclosed shaft end construction. It is suitable for applications involving flue exhaust and draft booster blowers.

• Thermally protected for safety
• Ball bearing design for durability
• Includes motor-blower mounting plate

Product Highlights

This motor is ideal for HVAC systems where reliable draft assistance is required. It operates in ambient conditions up to forty degrees Celsius and is equipped with Class B insulation.

Product Information

Standard Information

• Brand: FASCO
• MPN: D418

Technical Specifications

• Phase: 1
• Output HP: 1/50 HP
• Output KW: 0.01 kW
• Voltage: 115 V
• Speed: 1500 rpm
• Service Factor: 1
• Frame Size: 3.3 inches
• Enclosure Type: Open Air Over
• Current: 1.20 A
• Insulation Class: B
• UL Recognized: Yes
• CSA Approved: Yes
• CE Certified: No
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Shaft Type: Flat
• Rotation: Clockwise Shaft End
• Overall Length: 8.88 inches
• Shaft Diameter: 0.250 inches
• Shaft Extension: 3.00 inches
