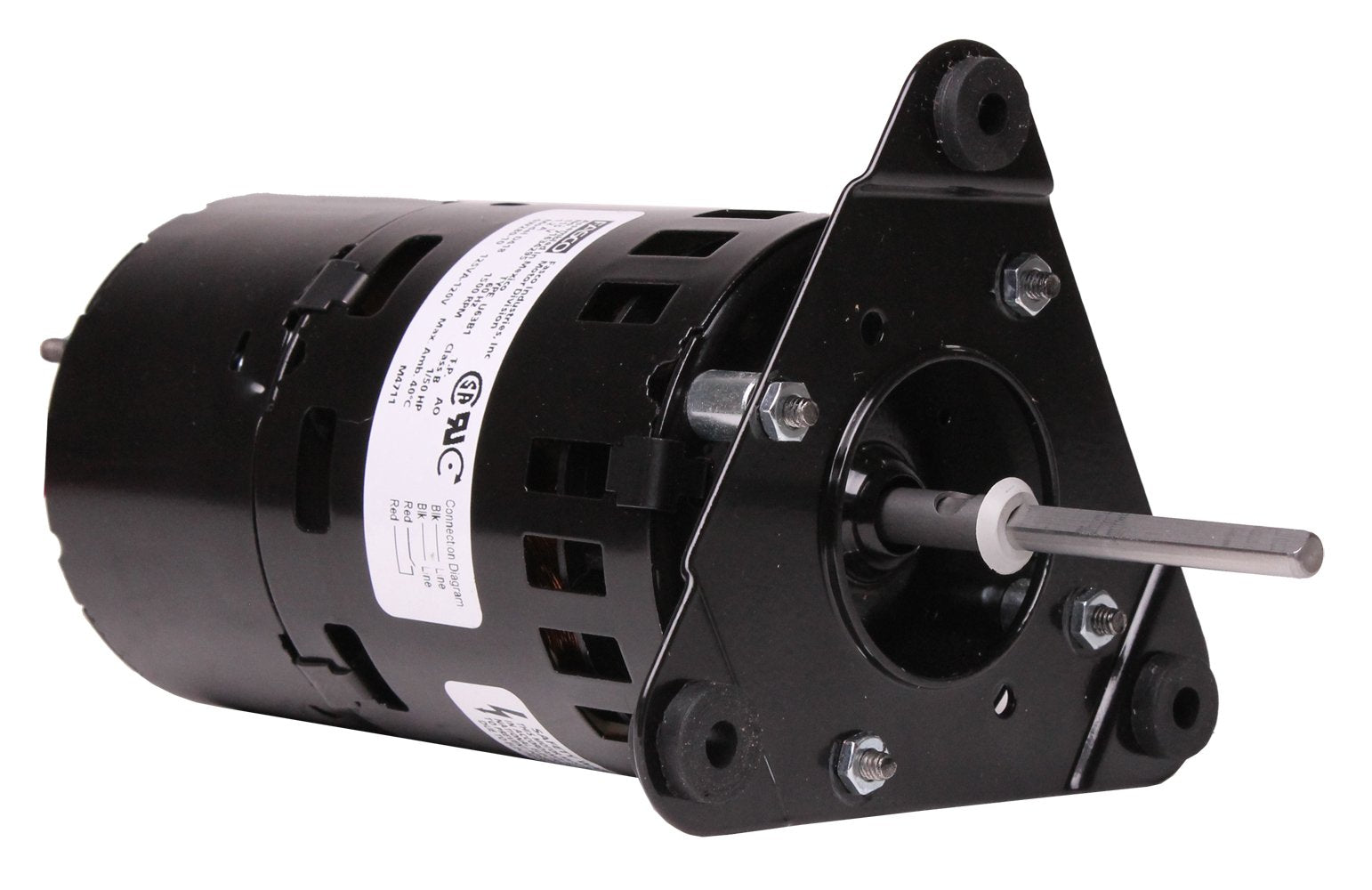

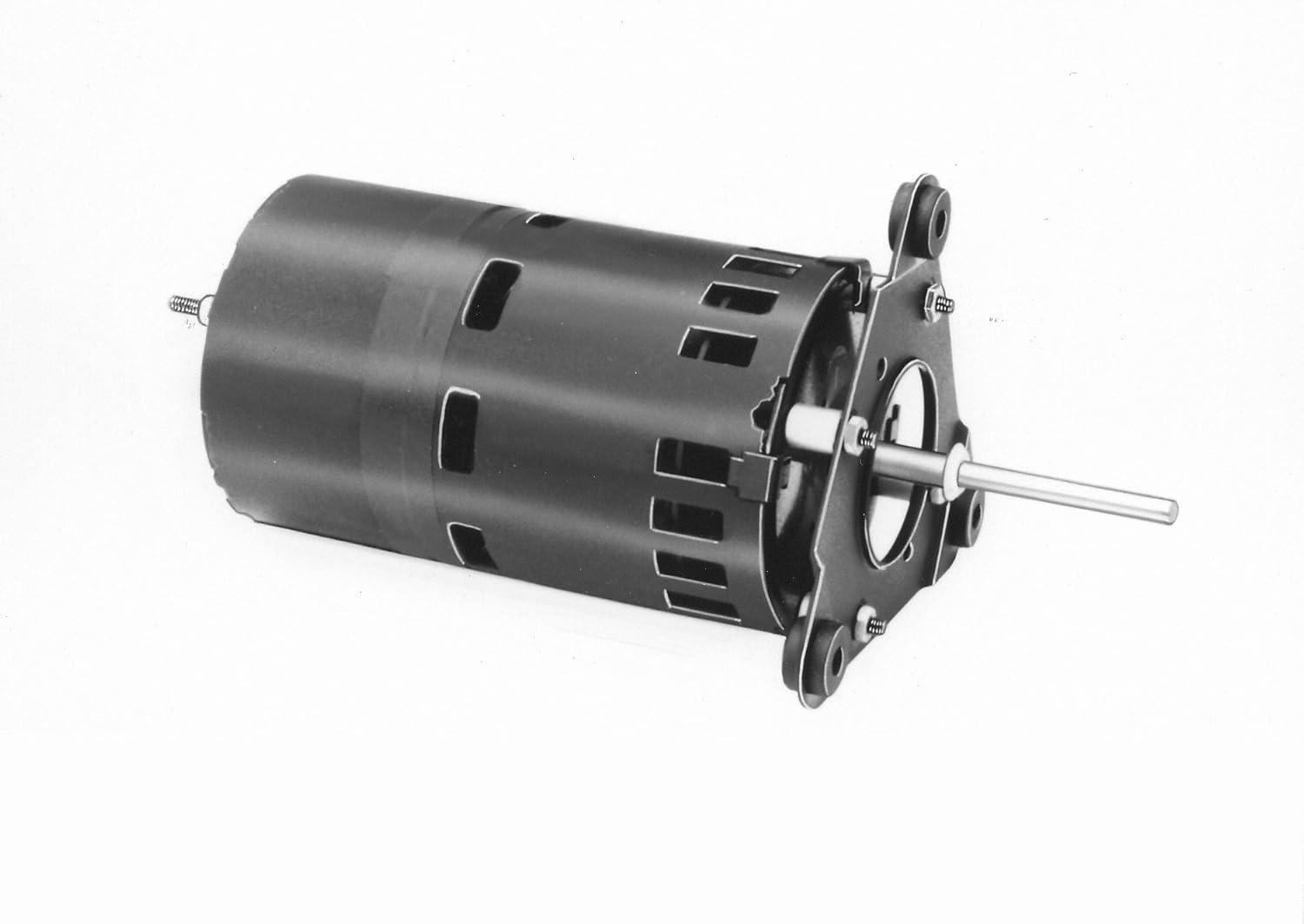

Fasco D418 Draft Inducer Blower Motor 1/50hp 1550RPM CW 3.3 Diameter 115 Volts Replacement D418

Product Description

The Fasco D418 Draft Inducer Blower Motor, identified by MPN D418, is a reliable motor suitable for HVAC applications. It features a 1/50 horsepower motor running at 1550 rotations per minute and is designed for clockwise shaft end rotation. Its stainless steel construction ensures durability, and with a diameter of 3.3 inches and voltage of 115 volts, it meets industry standards for performance and longevity.

• 1/50 horsepower motor
• 1550 RPM
• 115 volts

Product Highlights

This motor is a single-phase, shaded pole motor with an open air over enclosure. It includes ball bearings, ensuring smooth and efficient operation. Designed for an ambient temperature of 40 degrees Celsius, it is thermally protected to prevent overheating.

Product Information

Standard Information

• Manufacturer: Fasco
• Brand: Fasco
• MPN: D418
• Category: Fan Motors

Technical Specifications

• Speed: 1550 RPM
• Voltage: 115 volts
• Material: Stainless Steel
• Amperage: 1.2 amps
• Horsepower: 1/50 HP
• Diameter: 3.3 inches
• Phase: Single
• Rotation: Clockwise Shaft End
• Ambient Temperature: 40 degrees Celsius
• Insulation Class: B
