Fasco D403 General Purpose Motor 1/60 HP 3.3 inches Diameter

Product Description

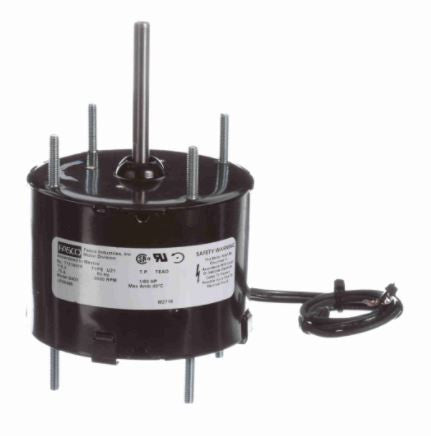

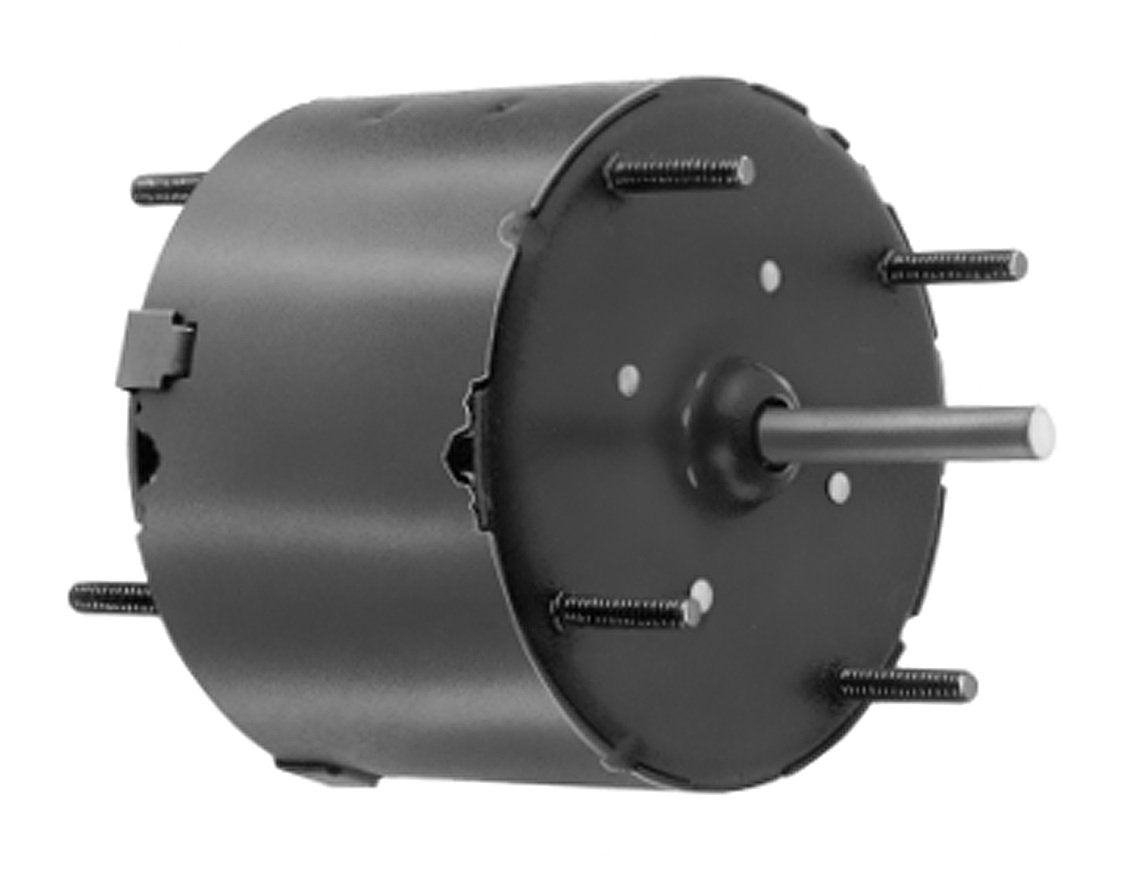

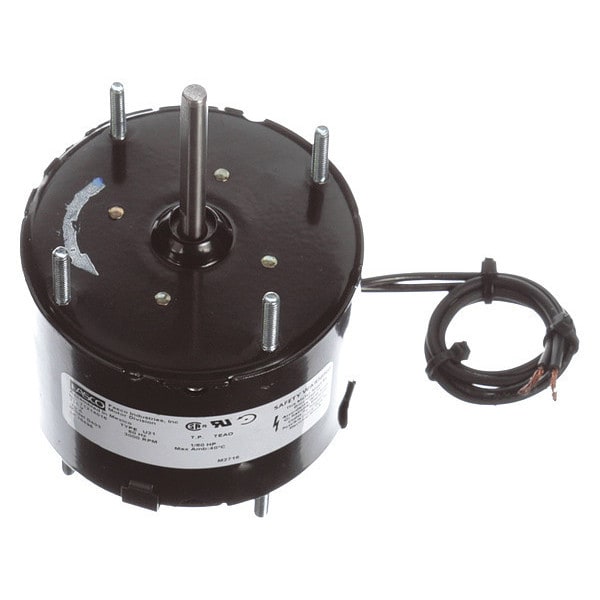

The FASCO D403 is a 3.3" frame, totally enclosed, shaded pole general purpose motor. This 1/60 HP motor operates at 115V and 60Hz, with a speed of 3000 RPM and 0.75 amps. It features counterclockwise rotation and a sleeve bearing. Ideal for HVAC applications, this motor is thermally protected and designed for air over applications.

• General Purpose Motor
• 3.3" Diameter
• Thermally Protected
• Totally Enclosed Air Over

Product Highlights

The FASCO D403 is suitable for various general purpose applications. It is a reliable and efficient motor with a compact design.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D403
• Country of Origin: Mexico

Technical Specifications

• Speed: 3000 RPM
• Voltage: 115 V
• Model Name: d403
• Phase: 1
• Output HP: 1/60 Hp
• Output KW: 0.01 kW
• Frame: 3.3
• Enclosure: Totally Enclosed
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.75 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 2
• Rotation: Counterclockwise Shaft End
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 4.94 in
• Frame Length: 2.14 in
• Shaft Diameter: 0.250 in
• Shaft Extension: 2.30 in
• Bearing: Sleeve Bearing
• A Dimension: 2-3/8 "
• Catalog#: D403
• Manufacturer: Fasco
• Bearings: Sleeve
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Motor Diameter: 3.3"
• Motor Shell Length: 2-3/8"
• Product Type: Shaded Pole
• Shaft Length: 2-1/4"
• Hertz: 60 Hz
• Horsepower: 1/60 HP
• Motor Type: Shaded Pole
• Full Load Amps: 0.75 A
• Manufacturers Part Number: D403
• Rated RPM: 3000
• RPM Range: 3001-3600 rpm
• Brand: Fasco
• Certifications: UL and CSA
• Length Less Shaft: 7/1/8 in
• Nameplate RPM: 3,000
• Motor Enclosure Design: Totally Enclosed
• Item: Direct Drive Blower Motor
• Application: HVAC/R
• Motor Shaft Design: Flat
• Motor Application: HVAC/R
• Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
• Max. Ambient Temp.: 40 Degrees C
• Continuous: Continuous
• Number of Shafts: 1
• Mounting Pattern: 2-7/8 x 2-7/8
• Standards: CSA Certified, UL Recognized
• Motor Service Factor: 1
• Motor Shaft Rotation: CCWSE
• Stud/Base Mtg. Pattern: 2-7/8 in x 2-7/8 in
• Motor Sub Application: Direct Drive Fan/Blower
• Motor Mounting Type: Ring/Stud
• Motor Bearings: Sleeve
• Capacitor Required: No
• Motor Mounting Position: All Angle
• Usable @ 208V: No
• Weight: 2 lb
• Mounting Holes: (8) #8-32
• Usable @ 200V: No
• Mounting Stud Pattern: 2 7/8 in x 2 7/8 in
• Motor Frame Material: Steel
• Stud Size: #8-32
• Bolt Circle Dia.: 2 7/8 in
• Lead Length: 11 in
