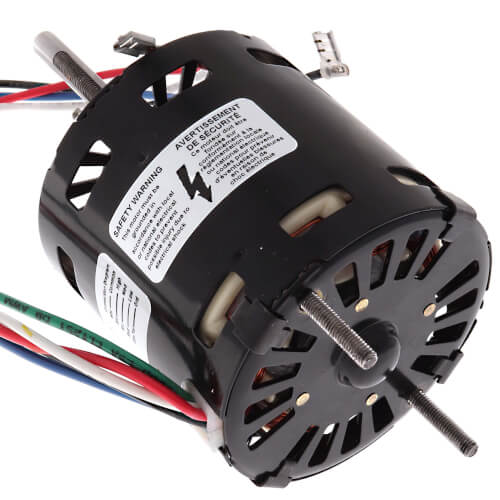

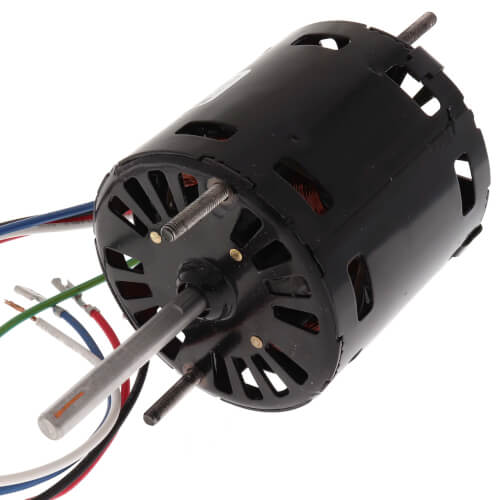

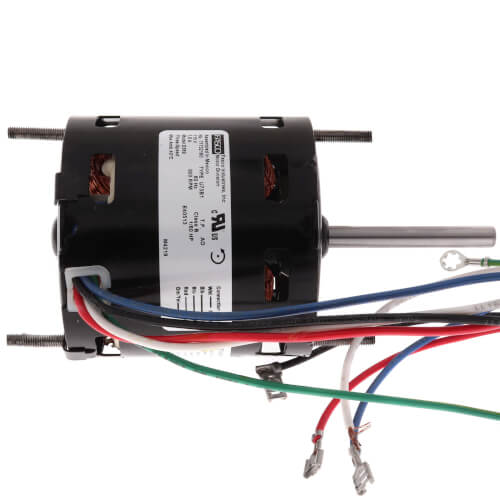

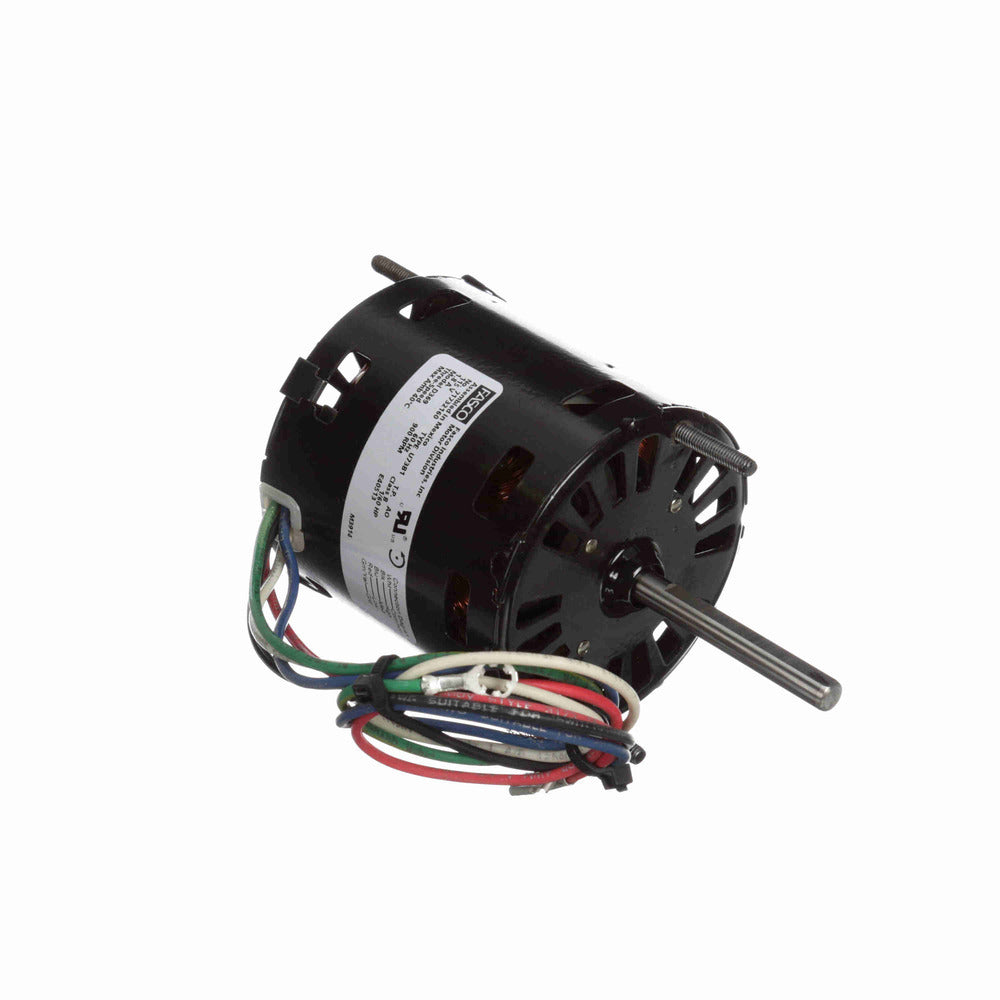

Fasco D369 Ventilation Motor 115V 900 RPM

Product Description

The Fasco D369 Ventilation Motor is a reliable and efficient motor designed for HVAC applications. With a 1/50 HP rating and operating at 115V with 900 RPM, this motor is perfect for fans, blowers, and various ventilation equipment.

• 1/50 HP Shaded Pole Motor
• Three-speed operation
• Thermally protected

Product Highlights

The Fasco D369 motor features a counterclockwise shaft end rotation and sleeve bearings for smooth performance. It is thermally protected and designed for use in fans, blowers, and other HVAC applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D369

Technical Specifications

• Electrical Type: Shaded Pole
• HP: 1/50
• RPM: 900
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Voltage: 115
• Rotation: Counterclockwise Shaft End
• Material: Steel
• Mounting: Extended Studs
• Amperage: 1.80
• Shaft Type: Flat
• Shaft Diameter: 0.313 inches
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 2.5 inches
• Overload Protection: Thermally Protected
• Duty: Air Over
• Frequency: 60 Hz
• Ambient Temperature: 40 degrees C
• Insulation Class: B
• Poles: 8
• Service Factor: 1
• Number of Speeds: 1
