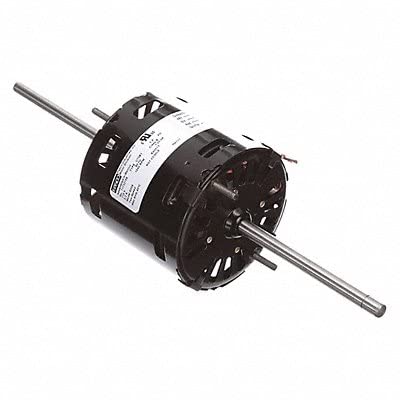

Fasco D359 Motor 1/20 HP OEM Replacement Motor

Product Description

The Fasco D359 Motor is a 1/20 HP shaded pole motor with 1550 RPM. It operates on 115V and is equipped with a thermally protected mechanism. This motor is designed for OEM replacement applications, particularly for Carrier/BDP systems, replacing the F33HXDDK-1548 model.

• 1/20 HP shaded pole motor
• 1550 RPM, 115V
• OEM replacement for Carrier/BDP

Product Highlights

Perfect for condenser fans, this motor features a steel frame, open air-over enclosure, and counterclockwise lead end rotation. It includes sleeve bearings and extended studs for easy mounting.

Product Information

Standard Information

• Brand: Fasco
• MPN: D359
• Manufacturer: Fasco

Technical Specifications

• Electrical Type: Shaded Pole
• Horsepower: 1/20 HP
• Speed: 1550 RPM
• Voltage: 115V
• Amperage: 2.2A
• Frame: 3.3 inches
• Enclosure: Open Air-Over
• Phase: Single
• Rotation: Counterclockwise Lead End
• Material: Steel
• Mounting: Extended Studs
• Shaft Type: Flat
• Shaft Diameter: 0.313 inches
• Shaft Length: 4 inches
• Insulation Class: B
• Max Ambient Temperature: 40 Degrees C
• Service Factor: 1.00
• Motor Design: Shaded Pole
• Overall Length: 11.27 inches
• Weight: 4.11 lb
• Country of Origin: Mexico
