FASCO D354A 3-Speed Fan Coil Motor 1/6-1/10-1/20 HP

Product Description

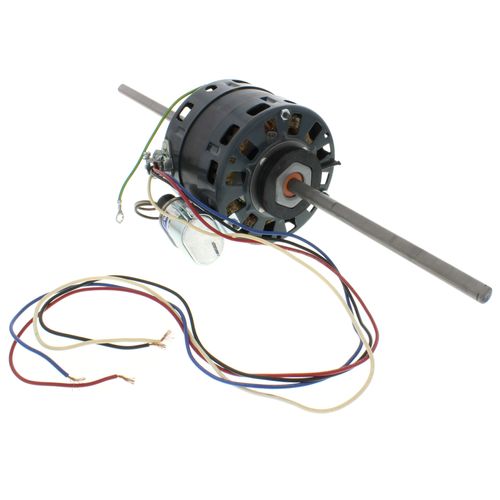

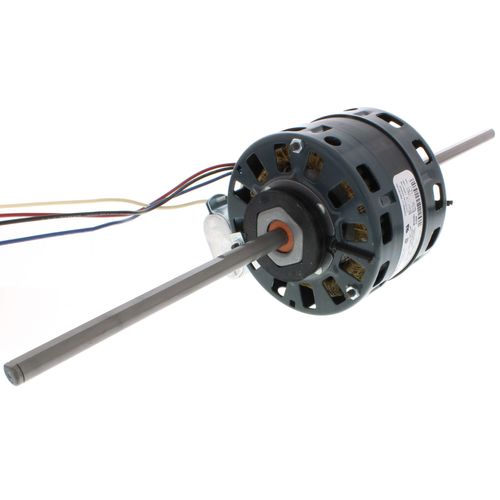

The FASCO D354A is a fan coil motor designed for air-conditioning and heating systems. This permanent split capacitor motor operates with three speed settings and supports efficient performance in various applications. It features a five-inch diameter and complies with the 42 frame standard. The motor's design includes class B insulation and automatic thermal protection to ensure reliable operation.

• Three speed settings for versatile applications
• Thermal protection for safe operation
• Includes a half-inch diameter double shaft

Product Highlights

This FASCO motor is ideal for use in fan coil units within hotels, offices, and hospitals, providing reliable airflow for temperature control.

Product Information

Standard Information

• Brand: FASCO
• MPN: D354A

Technical Specifications

• Poles: 6
• Insulation Class: B
• Phase: 1
• Rotation: CCWLE
• Overload Protection: Automatic
• Voltage: 115V
• RPM: 1050
• Mount: Resilient Rings
• Type: Permanent Split Capacitor
• Duty: Continuous
• Frequency: 60 Hz
• Max Ambient Temp (°F): 104°F
• Bearings: Sleeve
• Enclosure Type: Open Air Over
• Frame Size: 42
• Approvals: UL
• Service Factor: 1.0
• Thermal Protection: Yes
• Ambient Temperature: 40 °C
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Shaft Type: Flat
• Frame Length: 4.33 inches
• Shaft Diameter: 0.500 inches
• Agency Certification: UR/CSA
• Efficiency: 65%
• Enclosure: OPEN
• Hz: 60
• NEMA Frame: 42
• Speeds: 3
• Volts: 115
• Manufacturer: Fasco
• Part Number: D354A
