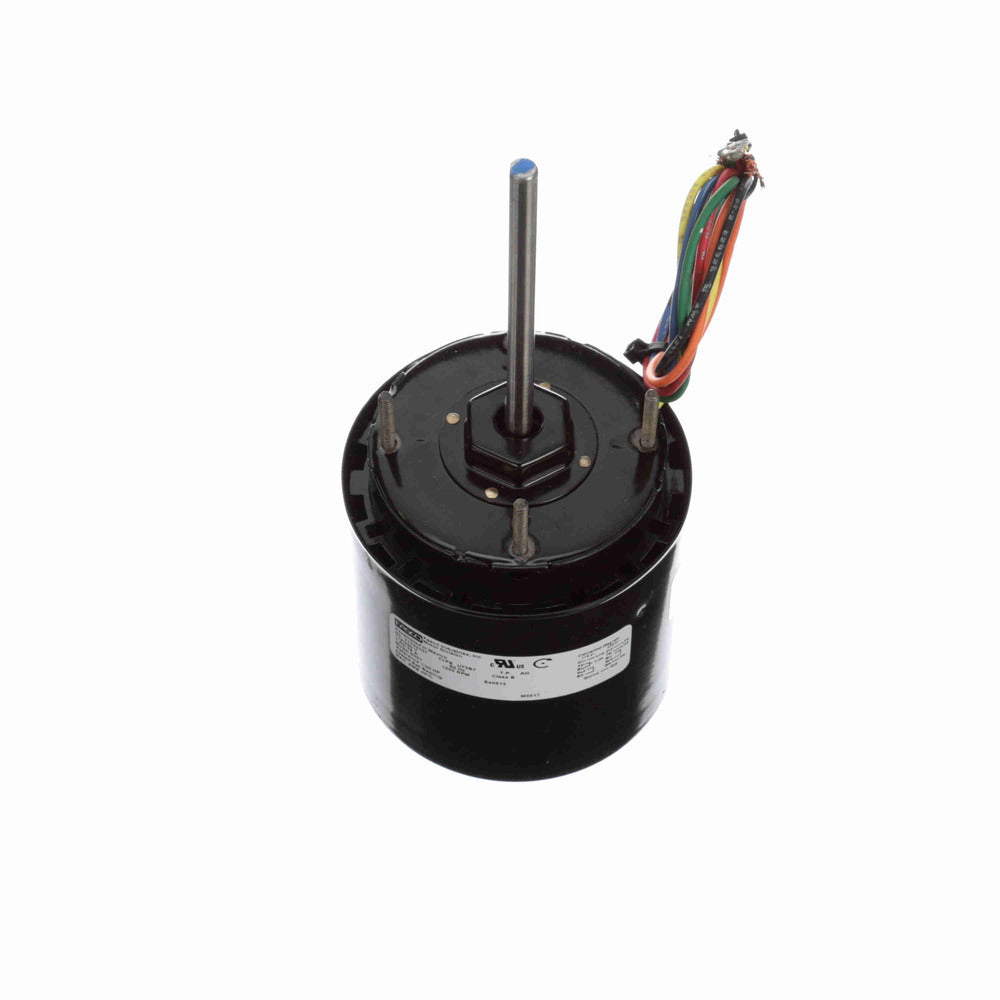

Fasco D351 Ventilation Motor 115/230V 1/20 HP 1550 RPM CWSE Thermally Protected

Product Description

The Fasco D351 Ventilation Motor is a reliable choice for various HVAC applications. This motor features a 1/20 HP capacity and runs at 1550 RPM. It operates on 115/230 volts with a current rating of 1.52/0.76 amps. The motor is thermally protected and has a clockwise shaft end rotation.

• 1/20 HP
• 1550 RPM
• Totally Enclosed Fan Cooled
• Thermally Protected

Product Highlights

Ideal for HVAC and refrigeration systems, the Fasco D351 motor is designed with shaded pole technology for efficient operation. Its totally enclosed fan cooled (TEFC) enclosure ensures safe operation in various environments.

Product Information

Standard Information

• Brand: Fasco
• MPN: D351
• Type: Ventilation Motor
• Voltage: 115/230V

Technical Specifications

• HP: 1/20
• RPM: 1550
• Current: 1.52/0.76 Amps
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Single
• Rotation: Clockwise Shaft End
• Insulation Class: B
• Bearings: Ball
• Shaft Diameter: 0.312 inches
• Shaft Extension: 4.5 inches
• Material: Steel
• Mounting: Extended Studs
• Ambient Temperature: 40°C
