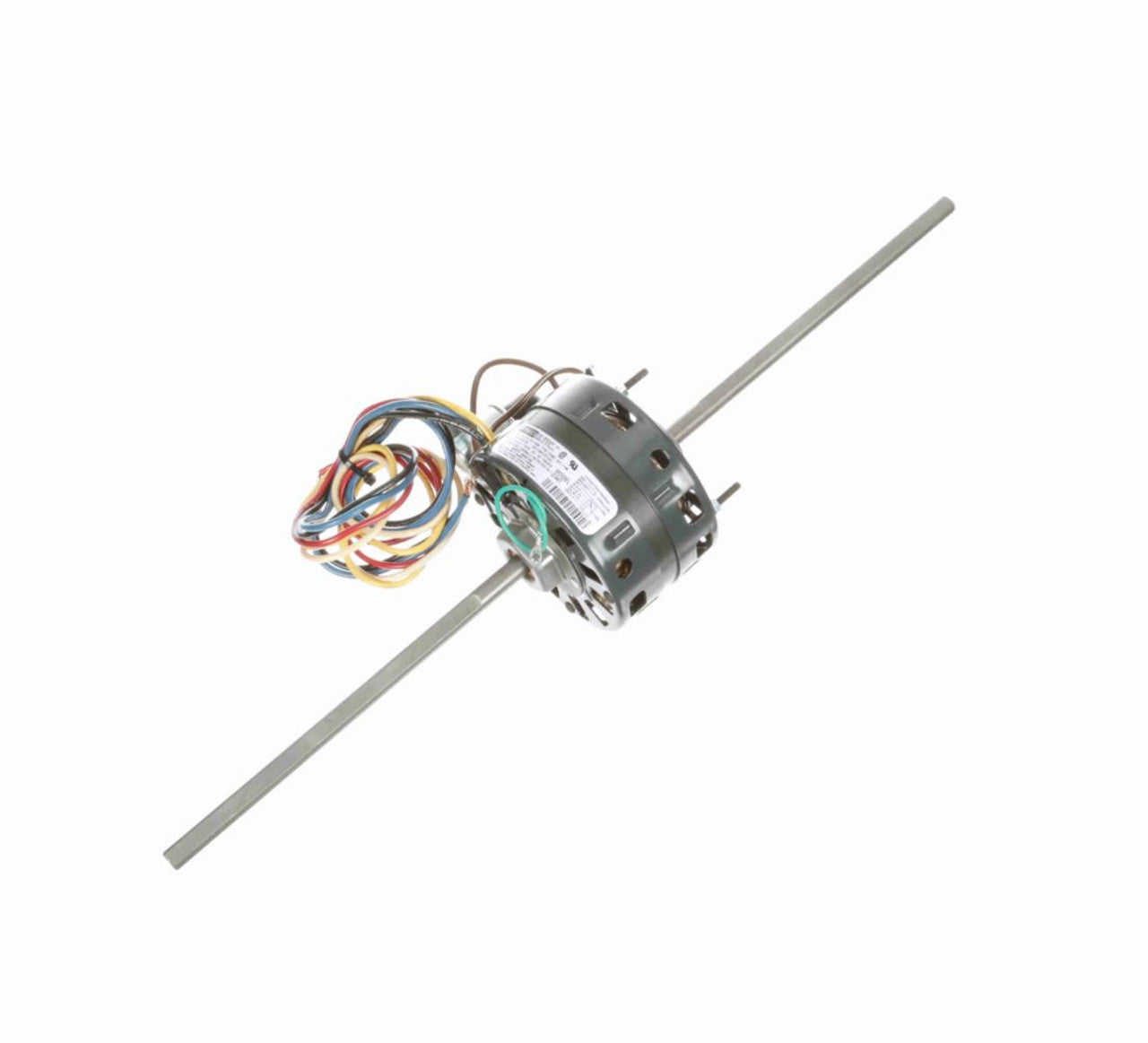

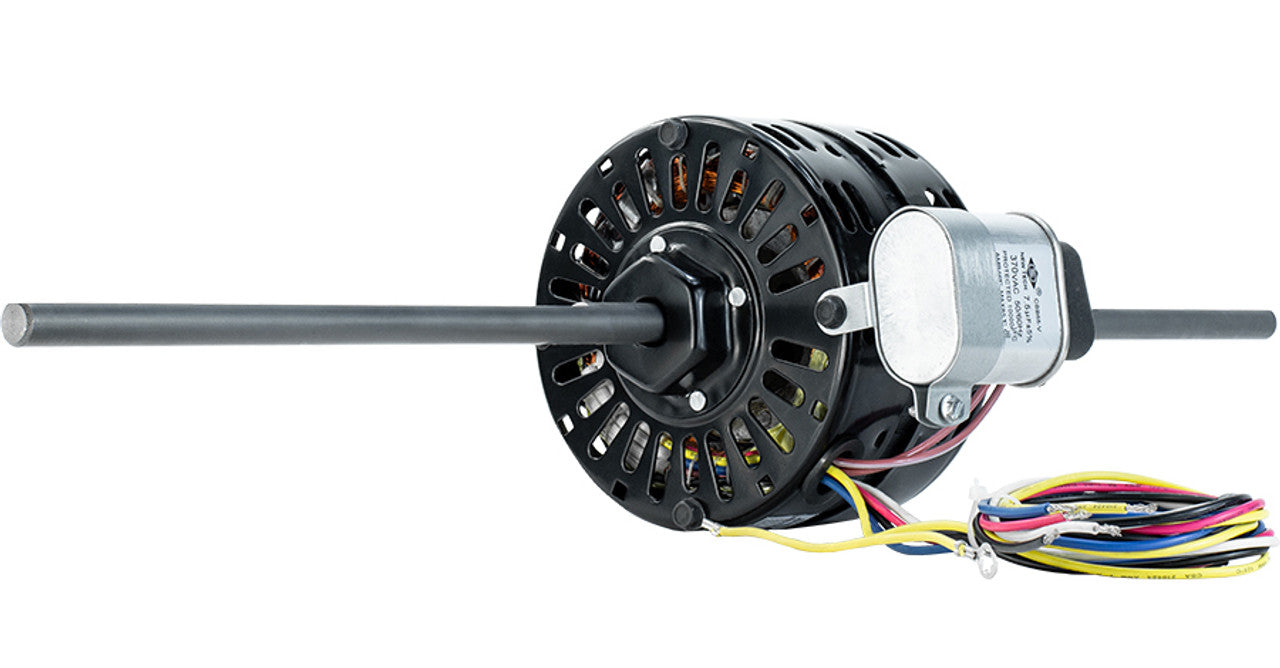

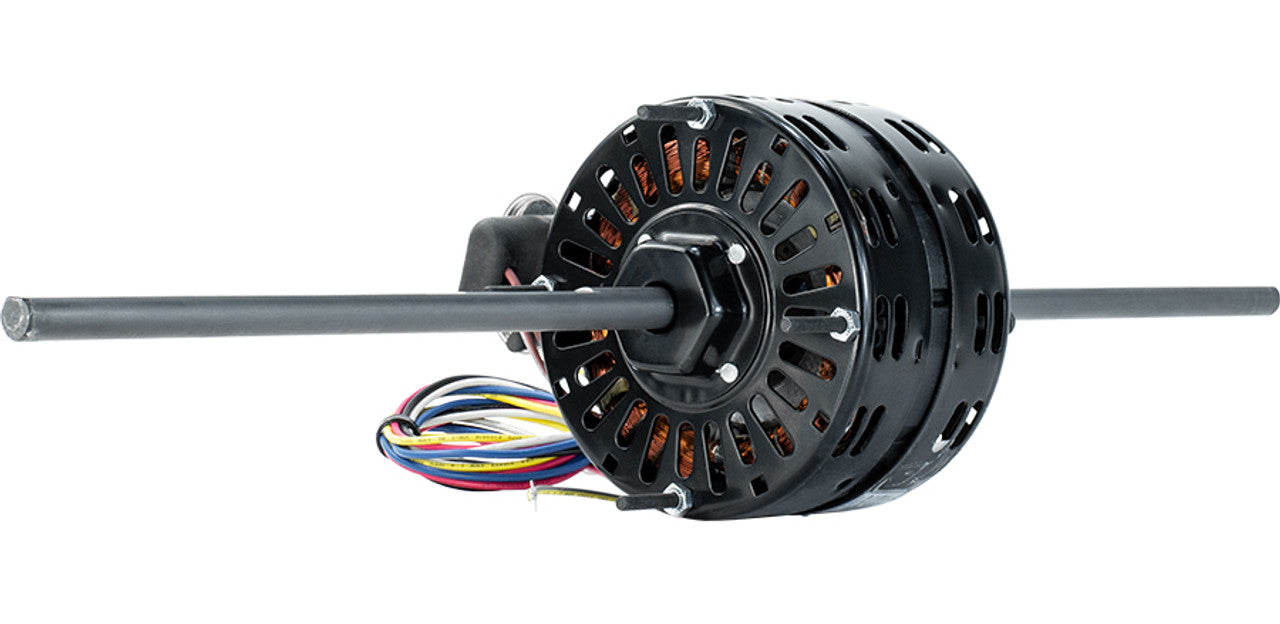

Fasco D347A Direct Drive Blower Motor 115V 1/8 to 1/20 hp

Product Description

The Fasco D347A is a direct drive blower motor tailored for applications including fan coils, air conditioning, and heating units. It operates at one hundred fifteen volts with a speed of one thousand five hundred fifty RPM. Designed with a double shaft that features a flat end, it also employs a permanent split capacitor for improved efficiency.

• Designed for fan coil and air conditioning units.
• Equipped with automatic thermal protection.
• Available in multiple speed variations.

Product Highlights

This motor is compatible with various HVAC systems, providing reliable performance for cooling and heating demands.

Product Information

Standard Information

• Brand: Fasco
• Manufacturer Part Number: D347A

Technical Specifications

• Horsepower: 1/8 to 1/20 hp
• Output HP: 1/8, 1/10, 1/15, 1/20 hp
• Input Voltage: 115 V
• Frequency: 60 Hz
• Input Current: 2.3/1.6/1.2/0.7 A
• Speed: 1550 RPM
• Number of Speeds: 4
• Phase: 1
• Enclosure Type: Open Air Over
• Shaft Diameter: 0.5 inches
• Shaft Extension: 10.50 inches
• Rotation: Clockwise Lead End
• Frame Type: 42
• Duty: Continuous
• Thermal Protection: Automatic
• Insulation Class: B
• Ambient Temperature: 40 °C
• Frame Material: Rolled Steel
