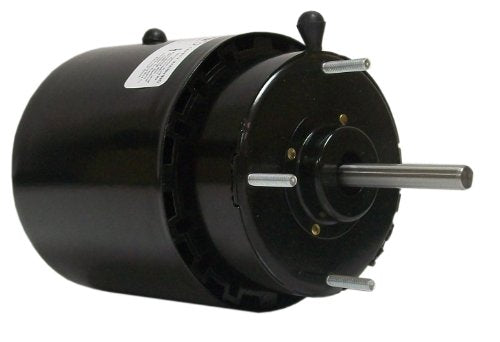

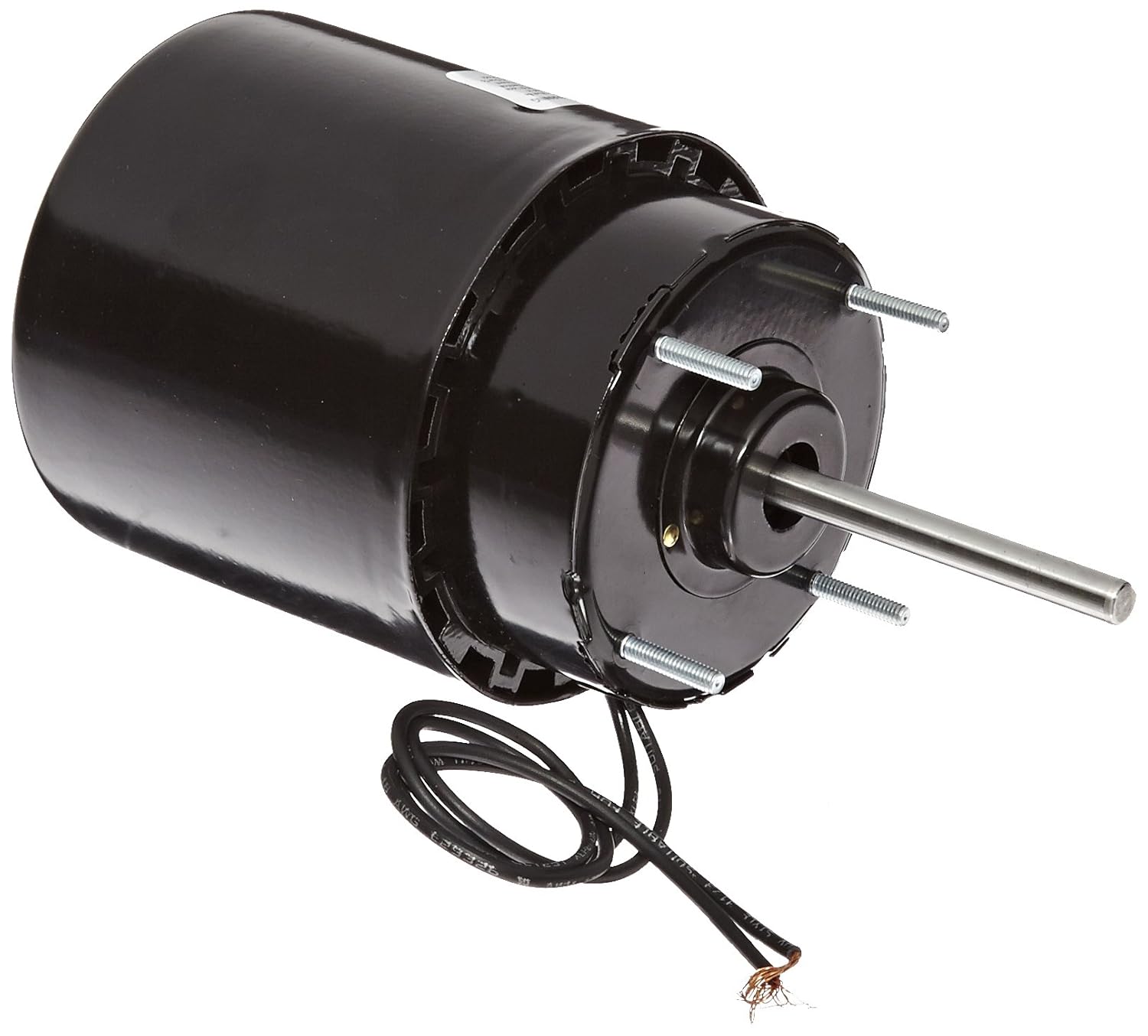

Fasco D334 3.3 Frame Totally Enclosed Shaded Pole Self Cooled Motor with Ball Bearing, 1/15HP, 1500rpm, 230V, 60Hz, 1.4 amps

Product Description

The Fasco D334 Totally Enclosed Shaded Pole Self Cooled Motor is designed for various industrial applications. It features a 3.3-inch frame diameter, providing reliable performance in compact spaces. Operating at 1500 RPM, this motor delivers efficient performance with a power rating of 1/15 HP and requires 230 volts to function. The motor is equipped with ball bearings for smooth operation and durability.

• 3.3-inch frame diameter
• 1/15 HP power rating
• 1500 RPM speed

Product Highlights

This motor uses a shaded pole design and is self-cooled, making it ideal for various HVAC and ventilation applications. The totally enclosed design ensures that it operates efficiently in various environments, maintaining functionality and longevity.

Product Information

Standard Information

• Brand: Fasco
• MPN: D334
• Frame Diameter: 3.3 inches
• Mounting: Extended Studs
• Shaft Type: Flat

Technical Specifications

• Power Rating: 0.07 KW
• Speed: 1500 RPM
• Voltage: 230 Volts
• Amperage: 1.4 Amps
• Enclosure: Totally Enclosed Fan Cooled
• Phase: Single
• Insulation Class: B
• Rotation: Clockwise Shaft End
• Shaft Extension: 3 inches
• Bearings: Ball
