Fasco D333 fan coil air-conditioning and heating unit motor 1/25HP 4.4-inch frame

Product Description

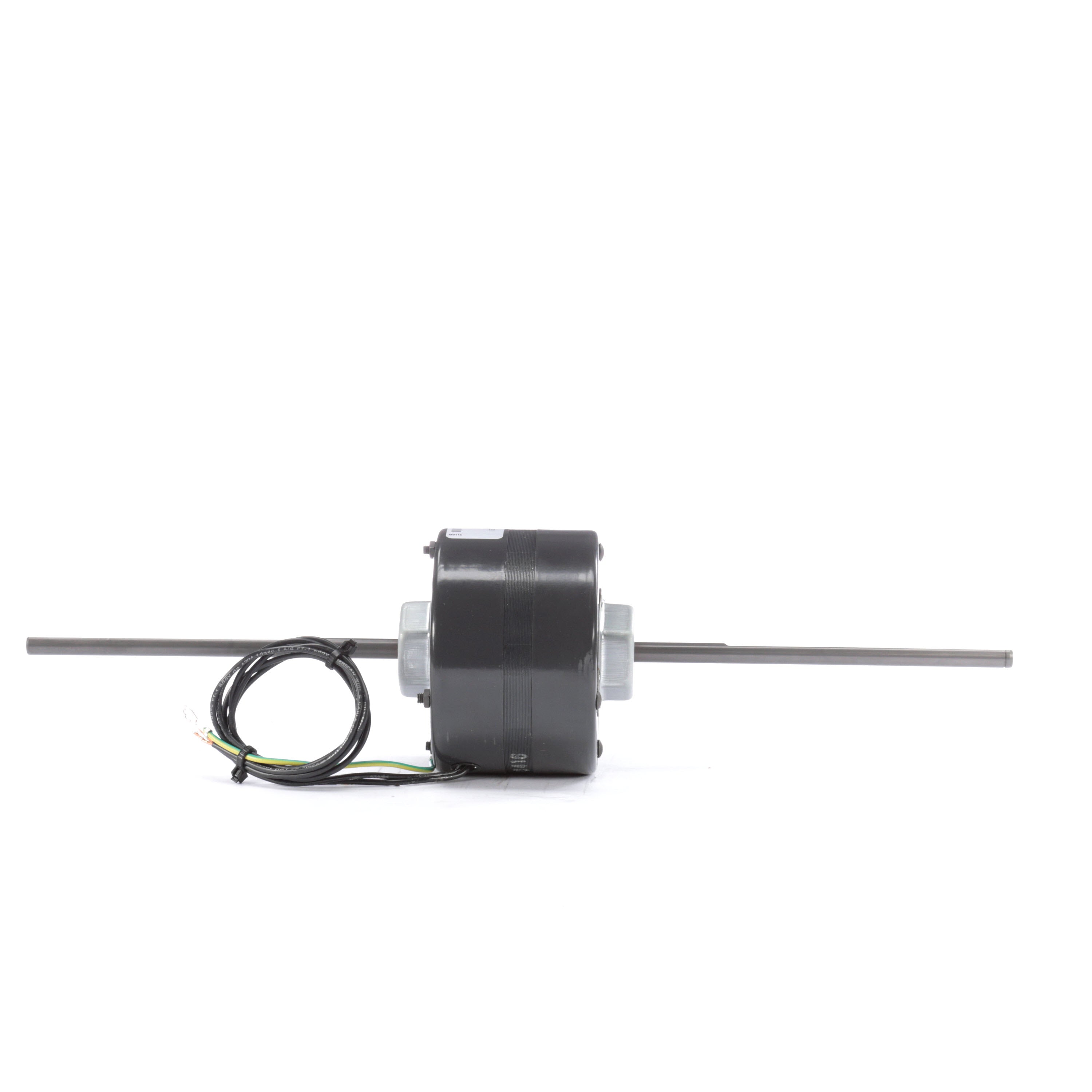

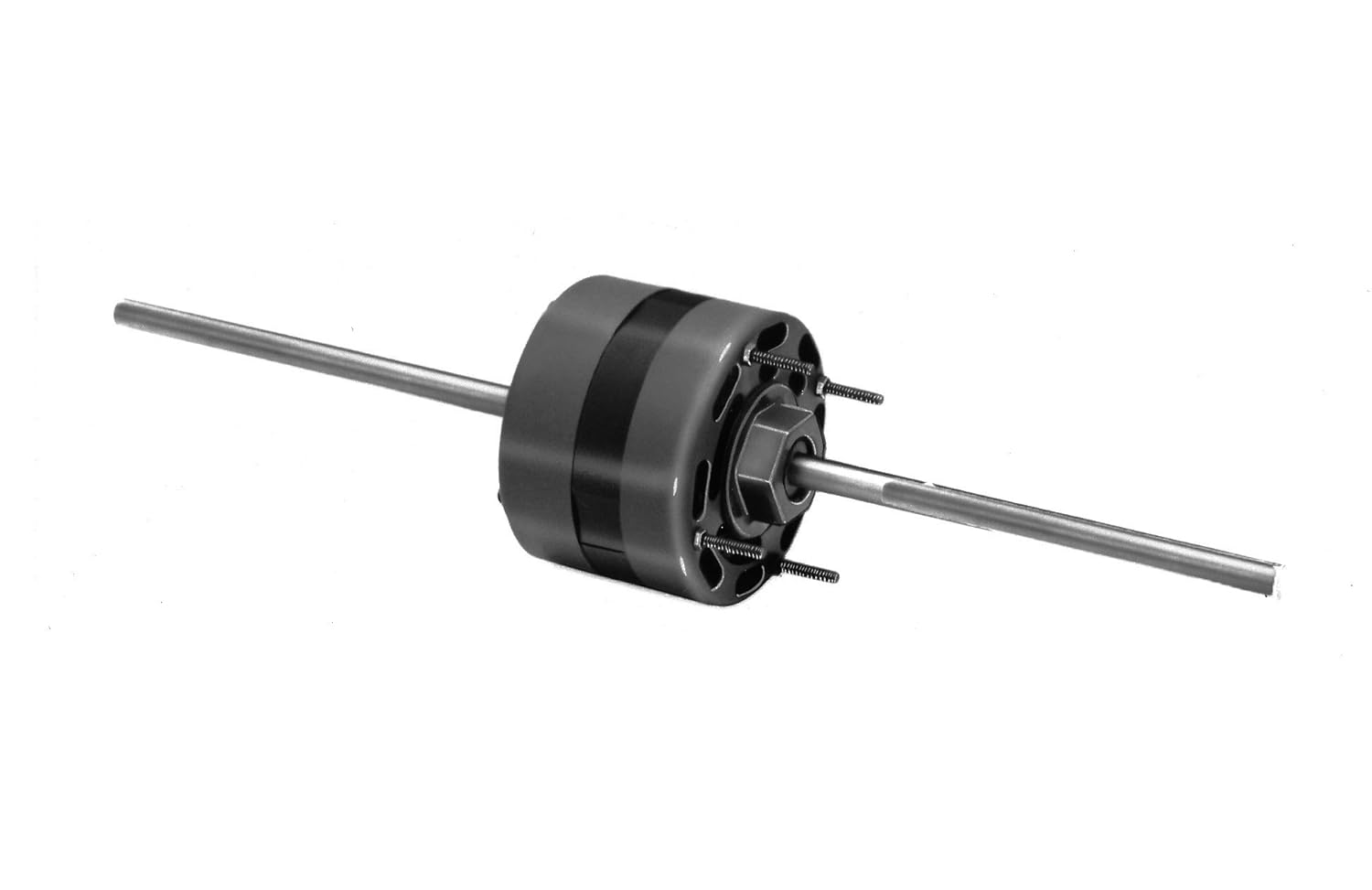

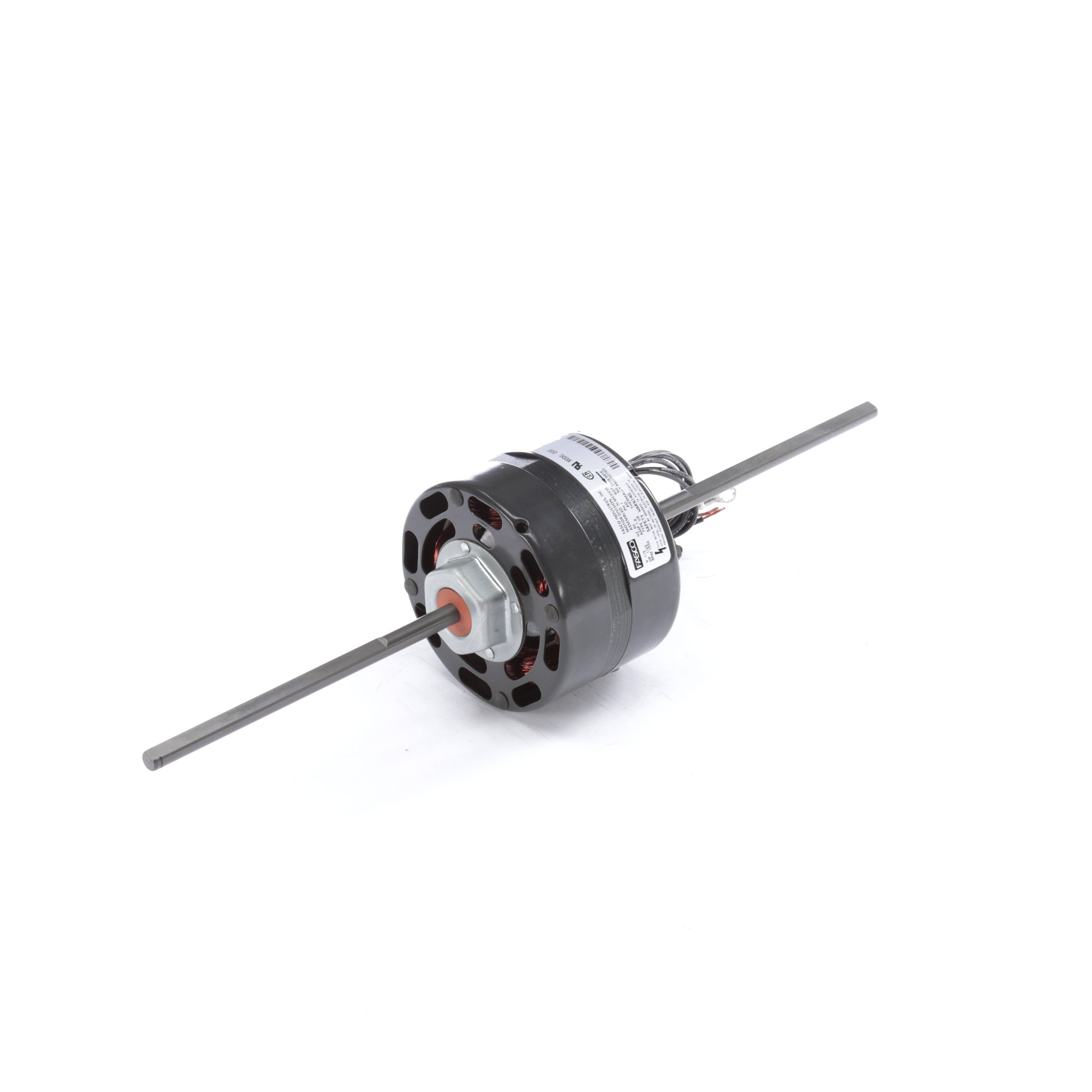

The Fasco D333 is a 4.4" frame open ventilated shaded pole fan coil air-conditioning and heating unit motor with sleeve bearing. It operates at 1/25HP, 1550rpm, 115V, 60Hz, and 1.4 amps. This motor is thermally protected and features a 3/8" diameter double shaft with flat leads, designed for air-over applications.

• Open Ventilated design
• Features a Shaded Pole
• Suitable for Fan Coil, Air-Conditioning, and Heating Units

Product Highlights

The Fasco D333 is ideal for HVAC applications, providing reliable performance in a compact design.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D333
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• Frame: 4.4"
• Application: Air-Conditioning and Heating Unit
• Bearing: Sleeve Bearing
• Voltage: 115 V
• Frequency: 60 Hz
• Amps: 1.4 amps
• Speed: 1550 RPM
• Horsepower: 1/25 hp
• Manufacturer: Fasco Motors
• Model / MPN: D333
• Number of Items: 1.0
• Electrical Type: Shaded Pole
• Enclosure: Open Air Over
• Phase: 1
• Rotation: Reversible
• Mounting: Resilient Ring
• Shaft Type: Flat
• Shaft Diameter: 0.375 in
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 7.25 in
• Overload: Thermally Protected
• Insulation Class: A
• Poles: 4.0
• Service Factor: 1
• Number of Speeds: 1
• Output KW: 0.03 kW
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Current: 1.4 A
• Duty: Air Over
• UL: Recognized
• CSA: Y
• CE: N
• Starting Method: Across The Line
• Mounting Type: Resilient Rings
• DE Bearing Type: Sleeve
• ODE Bearing Type: Sleeve
• Overall Length: 17.52 in
• RPM (Nameplate): 1550
• Speeds: 1
• Frame Type: 4.4 (in. diameter)
• Type of Overload Protector: Thermally Protected
• Max Ambient: 40°C
• DEM Reference: FA#D333
• Hertz: 60hz
• Motor Length Less Shafts: 2 7/8"
• Ventilation: Open Ventilation, Air Over
