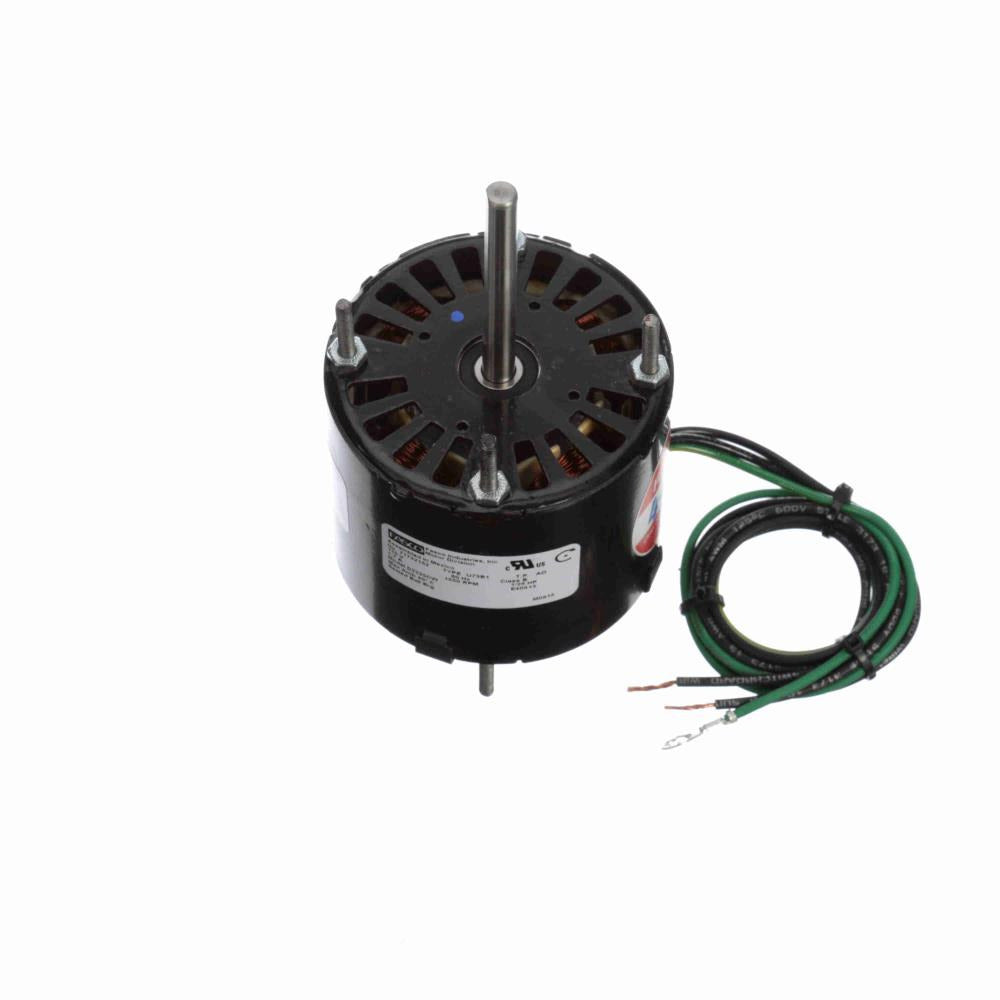

Fasco D3325CW Ventilation Motor 1/25 HP 3.3 Diameter Replacement MPN

Product Description

The Fasco D3325CW Ventilation Motor is designed for fan and blower applications. This shaded pole motor operates at one twenty-fifth horsepower (0.04 HP) and spins at one thousand five hundred fifty RPM. It has a three point three inch diameter and features a thermally protected design. The motor is constructed from steel and has an open air over enclosure, suitable for various HVAC applications.

• Shaded pole motor with thermally protected overload.
• Operating voltage of one hundred fifteen with a clockwise rotation.
• Flat shaft type with extended studs for mounting.

Product Highlights

Effective for air movement in ventilation systems. Comes with ball bearings for smooth operation and extended shaft for versatile mounting options.

Product Information

Standard Information

• Motor Type: HVAC/R Motor
• Voltage: 115V

Technical Specifications

• Horsepower: 1/25 HP
• RPM: 1550
• Diameter: 3.3 inches
• Amperage: 1.7
• Shaft Diameter: 0.312 inches
• Shaft Extension: 2.6 inches
• Insulation Class: B
• Bearings Type: Ball
