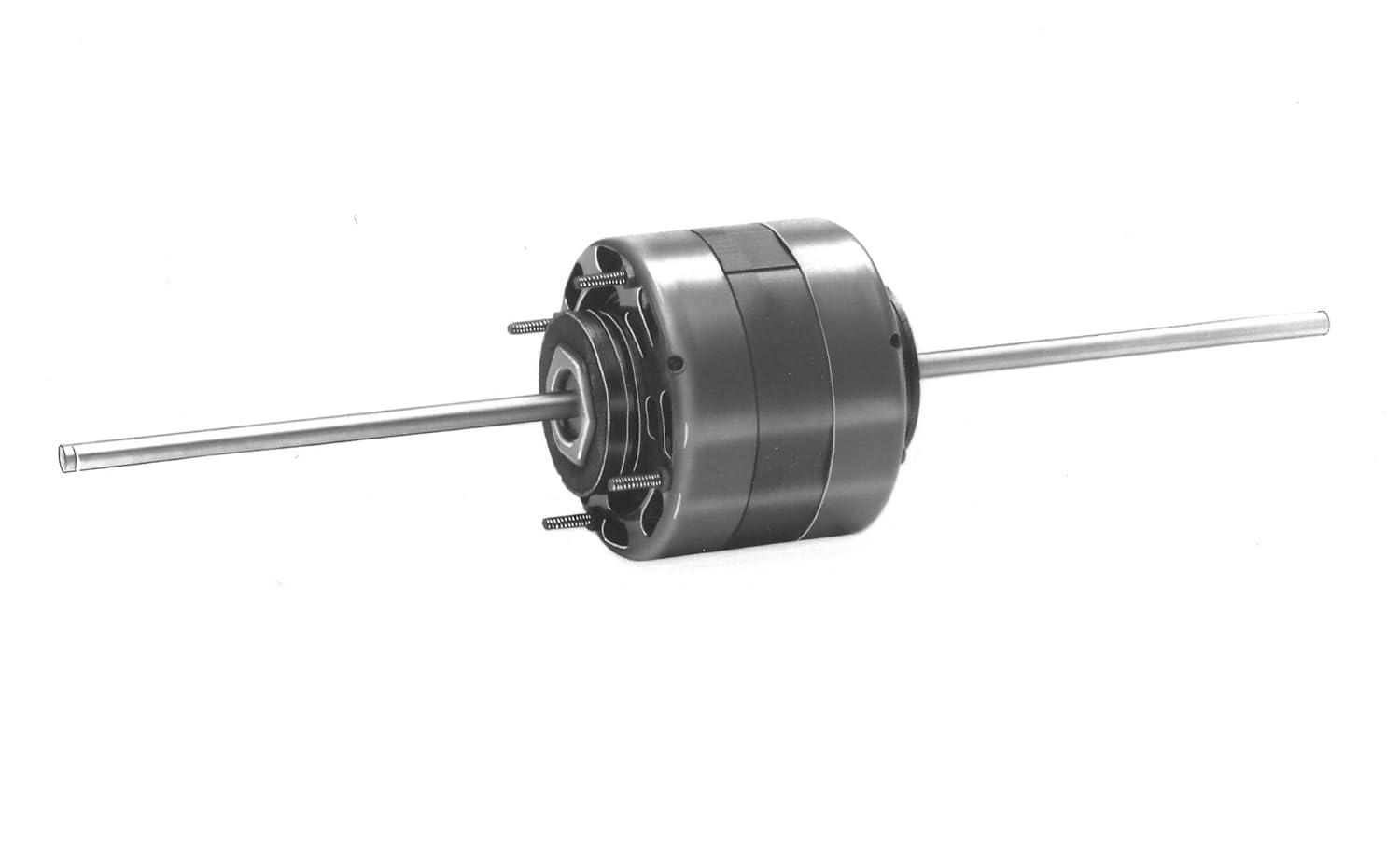

Fasco D329 Shaded Pole Fan Motor 1/15 HP 1550 RPM 115 Volt 2.5 Amp Sleeve Bearing

Product Description

The Fasco D329 shaded pole fan motor is a reliable choice for air-conditioning and heating units. This motor, identified by MPN D329, delivers efficient performance with a power rating of 1/15 HP and an operational speed of 1550 RPM.

• Shaded Pole Motor with 1/15 HP
• Operational speed of 1550 RPM
• 115 Volt and 2.5 Amp

Product Highlights

The Fasco D329 motor is suitable for various air-conditioning and heating applications. It features a 4.4-inch frame diameter, a sleeve bearing for smooth operation, and is thermally protected. It is designed for single-phase operation with reversible rotation.

Product Information

Standard Information

• Frame Diameter: 4.4 inches
• Phase: Single
• Voltage: 115
• Rotation: Reversible
• Bearings: Sleeve

Technical Specifications

• HP: 1/15
• RPM: 1550
• Amperage: 2.5
• Frequency: 60 Hz
• Insulation Class: A
• Duty: Air Over
• Shaft Type: Flat
• Shaft Extension: 7.5 inches
