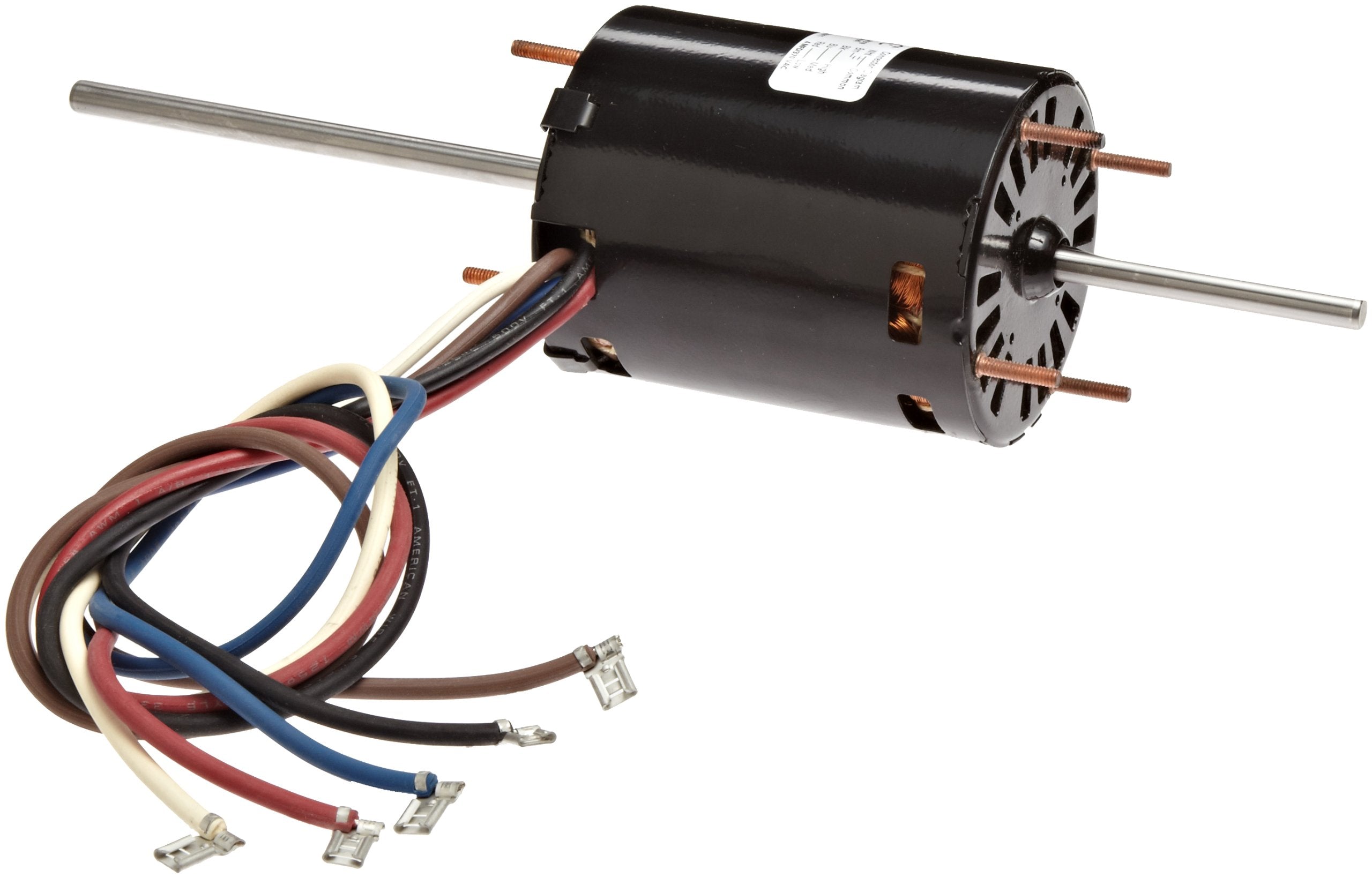

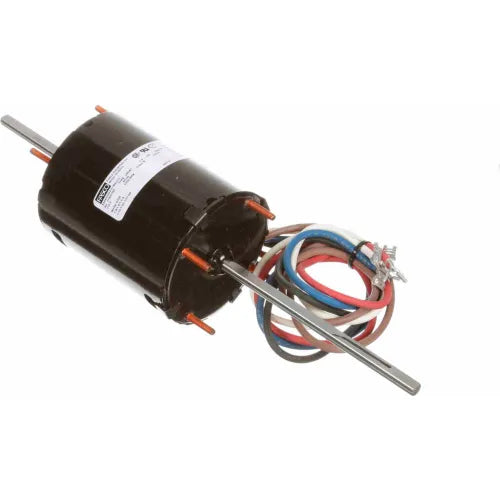

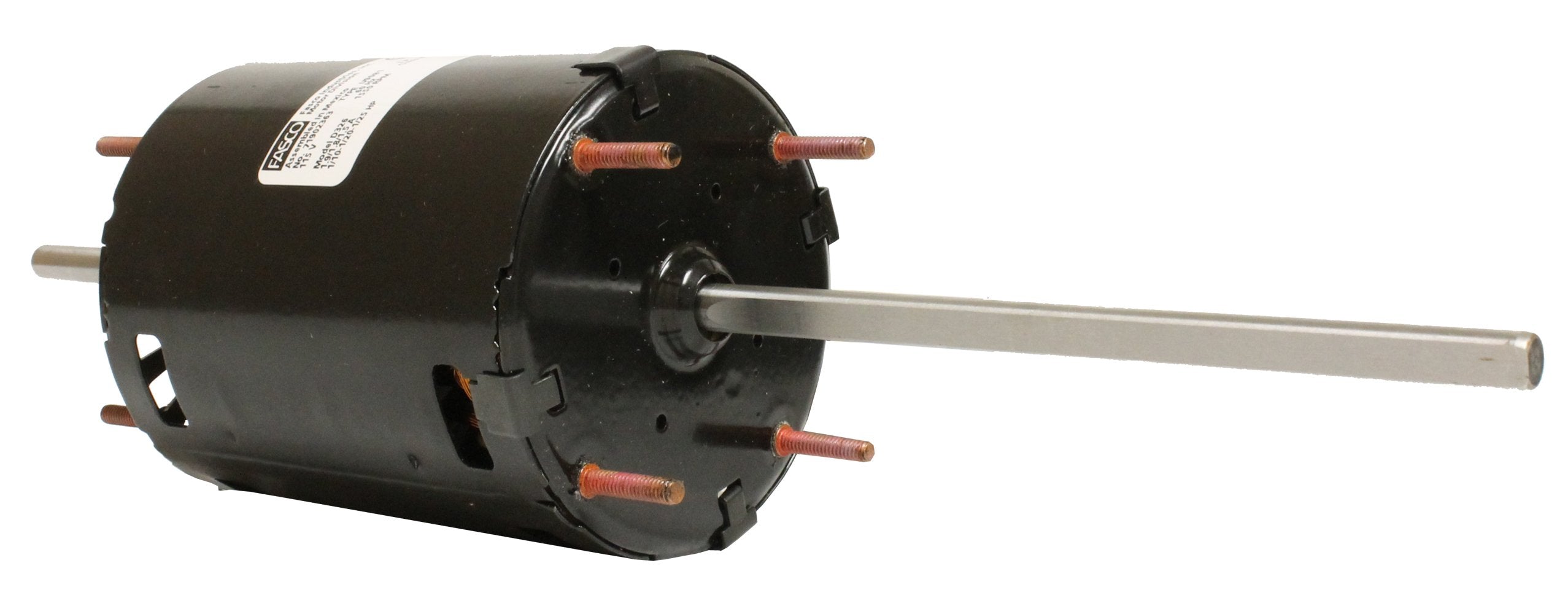

FASCO D326 Fan Coil 1/10 HP 1550 RPM

Product Description

The Fasco D326 fan coil motor is designed for efficient operation in various fan and blower applications. This motor features a 3.3-inch frame diameter and provides 1/10 horsepower at a speed of 1550 RPM, making it suitable for HVAC systems. It operates on 115 volts and draws 2.2 amps. With a sleeve bearing design, this motor offers reliable performance and durability.

• 3.3-inch frame diameter
• 1/10 horsepower
• 1550 RPM speed

Product Highlights

This fan coil motor is ideal for applications requiring a small yet powerful motor. It is equipped with thermal protection and is designed for reversible operation, ensuring versatility in use.

Product Information

Standard Information

• Brand: FASCO
• MPN: D326

Technical Specifications

• Speed: 1550 RPM
• Voltage: 115 Volts
• Horsepower: 0.1 hp
• Electrical Type: Permanent Split Capacitor
• Diameter: 3.3 inches
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Reversible
• Material: Steel
• Mounting: Extended Studs
• Amperage: 1.90/1.80/1.50 A
• Shaft Type: Flat
• Overload: Thermally Protected
• Frame Length: 3.95 inches
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 4.0
• Number of Speeds: 3
• Motor Application: HVAC-R
• Capacitor Required: Included
• Max Ambient Temp: 40 Degrees C
• Motor Shaft Design: Flat
• Motor Mounting Type: Extended Studs
• Motor Thermal Protection: Automatic
• Country of Origin: United States
