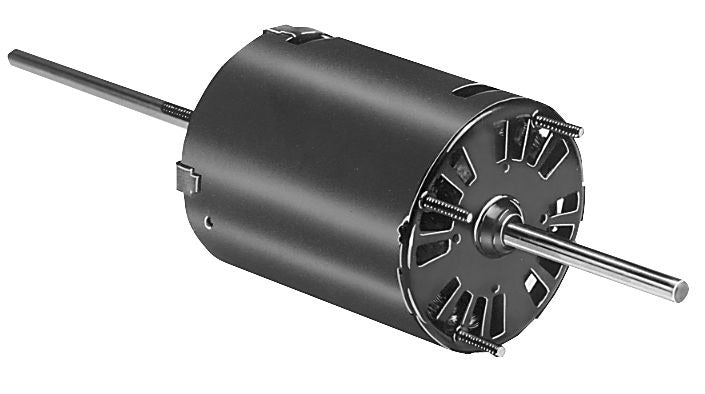

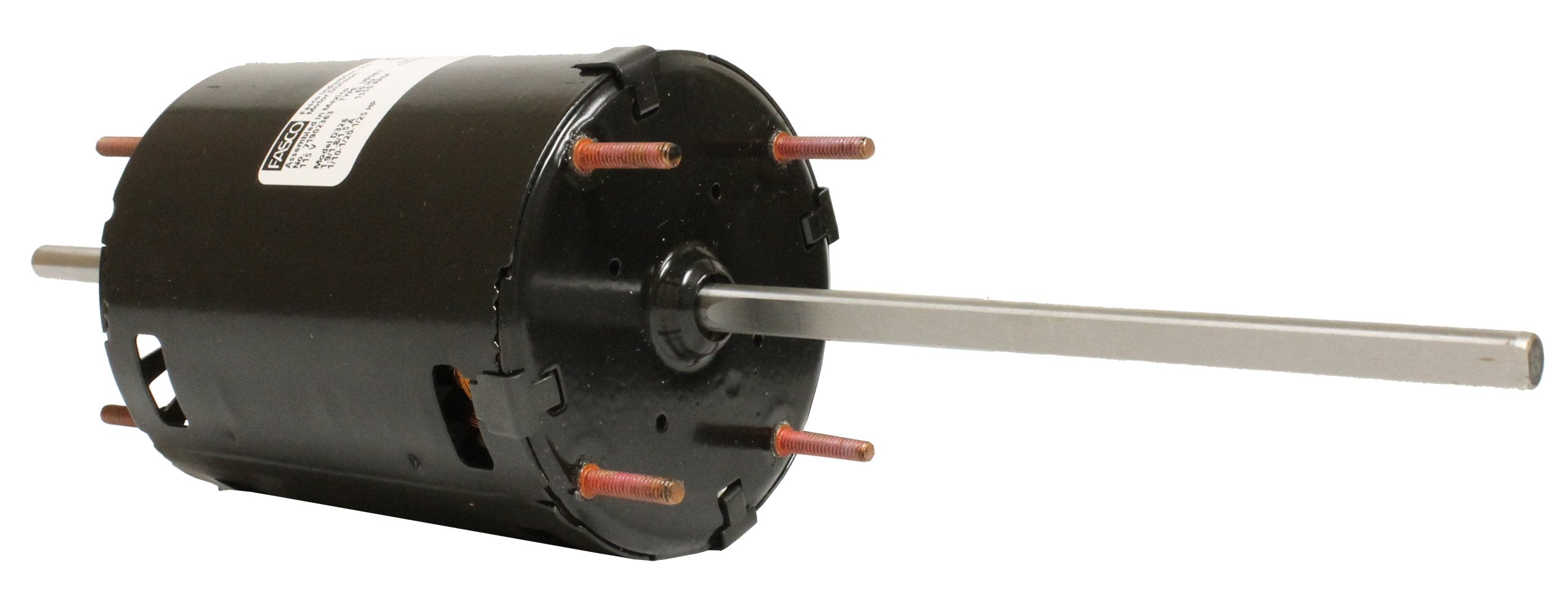

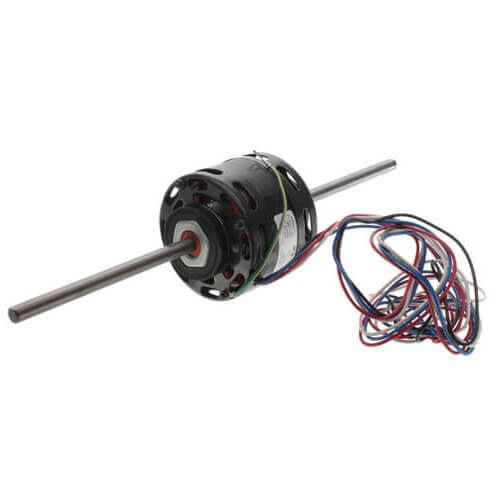

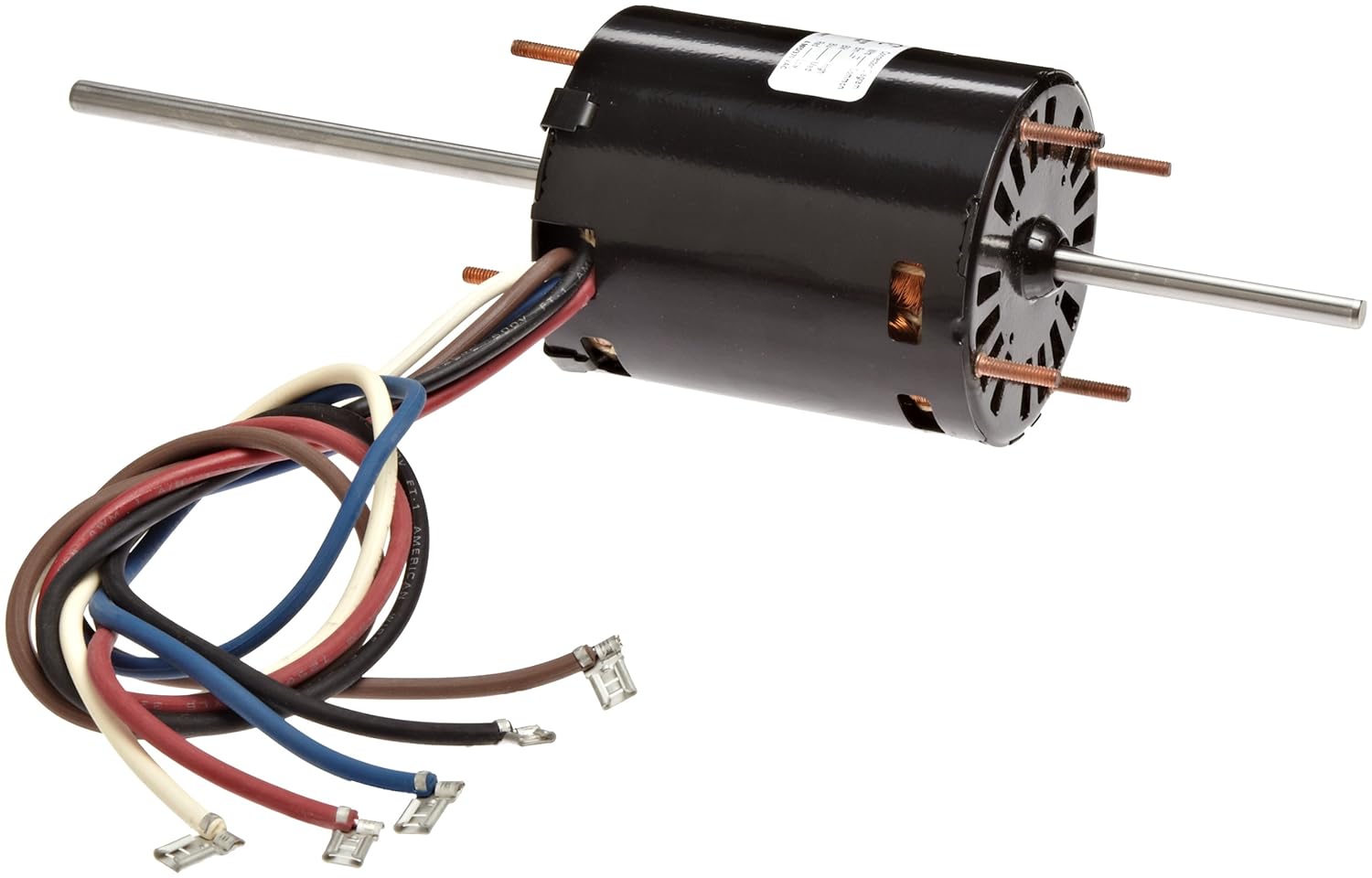

Fasco D326 Permanent Split Capacitor Fan Motor 115 Volts 1550 RPM 3-Speed

Product Description

The Fasco D326 Permanent Split Capacitor Fan Motor offers reliable performance with its 1/10-1/20-1/25 HP power rating. Designed for single-phase operation with a 1550 RPM speed, this motor is ideal for window air conditioning units and other HVAC applications. This motor requires a 4 MFD 370-volt capacitor (not included).

• 3.3-inch frame diameter
• 1/10 HP
• 1550 RPM

Product Highlights

The Fasco D326 is a versatile choice for various fan and blower applications. It features automatic thermal protection, reversible rotation, and a durable steel construction. The motor is thermally protected and has ball bearings for extended life.

Product Information

Standard Information

• Brand: Fasco
• MPN: D326

Technical Specifications

• Voltage: 115 volts
• Amperage: 1.9/1.8/1.5 amps
• Phase: Single
• Speeds: 3
• Mounting: Extended Studs
• Shaft Diameter: 0.312 inches
• Shaft Extension: 5.55 inches
• Motor Length: 12.7 inches
