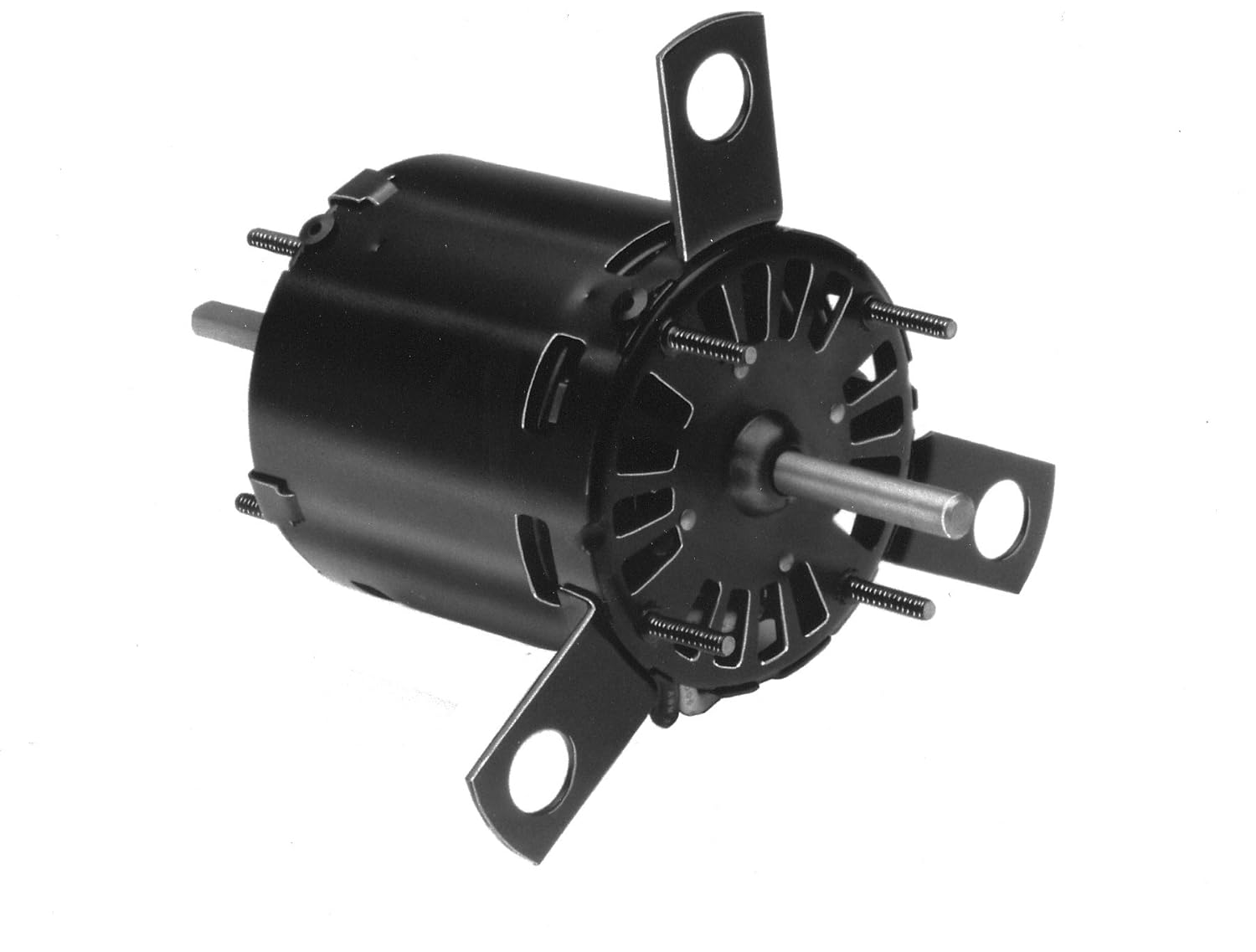

Fasco D325 3.3 Frame Open Ventilated Shaded Pole Window A/C Motor with Sleeve Bearing 1/10-1/30HP 1550RPM 115V 60Hz

Product Description

The Fasco D325 is a 3.3 frame open ventilated shaded pole window A/C motor with sleeve bearing. It operates at 1550 RPM with a 115V voltage rating and 1/10-1/30 horsepower. This motor is CSA certified and UL recognized, making it reliable for various window air conditioning units.

• Open ventilated shaded pole design
• Thermally protected
• Interchangeable with most window air-conditioner motors

Product Highlights

This Fasco motor features an open ventilated design, ensuring efficient cooling and performance. The sleeve bearing provides durability, and its thermal protection safeguards against overheating. The counterclockwise shaft end rotation enhances its compatibility with numerous air conditioners. It is certified by CSA and recognized by UL for assured quality and safety.

Product Information

Standard Information

• Product Name: Fasco D325
• Manufacturer: Fasco Motors
• Brand: Fasco
• Category: Window Treatments

Technical Specifications

• Speed: 1550 RPM
• Voltage: 115 Volts
• Horsepower: 1/10-1/30 HP
• Amps: 2.5-2.3
• Motor Length: 3-1/2 inches
• Shaft Dimension: 1-3/4 by 5/16 by 2-3/8 inches
• Certification: CSA and UL recognized
