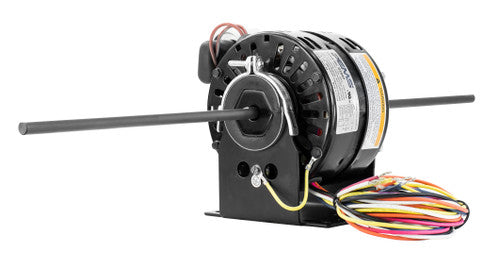

Fasco D294A 5-Speed Motor 1050 RPM 1/10-1/20-1/25-1/35-1/50 HP

Product Description

The Fasco D294A is a versatile 5-speed motor designed to operate at 1050 RPM with horsepower options from 1/10 to 1/50 HP, functioning on 115V. This motor has a five-inch diameter and features a 42 frame. It offers thermal protection and utilizes Class B insulation, ideal for management within forty degrees Celsius ambient temperatures.

• Permanent Split Capacitor (PSC) design for efficiency.
• Thermally protected with open air over enclosure for safety.
• Double shaft with a flat and resilient base for stability.

Product Highlights

This Fasco motor is particularly suited for HVAC systems, providing various speeds and dependable performance in a compact format.

Product Information

Standard Information

• Brand: Fasco
• MPN: D294A

Technical Specifications

• Horse Power: 1/10-1/20-1/25-1/35-1/50
• Voltage: 115V
• Amperage: 0.5-1.3
• Frequency: 60 Hz
• Frame Size: 42
• Rotation: CCWLE
• RPM: 1050
• Insulation Class: B
• Overload Protection: Automatic
• Phase: 1
• Diameter (Inches): 5
• Max Ambient Temp (°F): 104°F
• Enclosure Type: Open Air Over
• Duty: Continuous
• Bearings: Sleeve
• Speeds: 5
• Approvals: UL
• Poles: 6
• Service Factor: 1.0
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Number of Speeds: 5
• Electrical Type: Permanent Split Capacitor
• Mounting: Resilient Base
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.375 in
• Packaged Length: 25.88 in
• Packaged Width: 7.50 in
• Packaged Height: 6.25 in
• Mount: Resilient Mount - Base Included
• Motor Length Less Shafts: 3.30 in
• Shaft Height: 3.50 in
• Ventilation: Open ventilation-Air Over
• Capacitor: Requires 5MFD/370 VAC Capacitor - Included
• Bearing Type: Sleeve
• Motor Type: Permanent Split Capacitor
• Motor RPM 60 Hertz: 1050 RPM
• Enclosure: Open
• Efficiency: 65%
• NEMA Frame: 42
• Certifications: UL and CSA
• Rated RPM: 1050
• RPM Range: 1001-1100 RPM
• Hz: 60
• Volts: 115
• Agency Certification: UR/CSA
