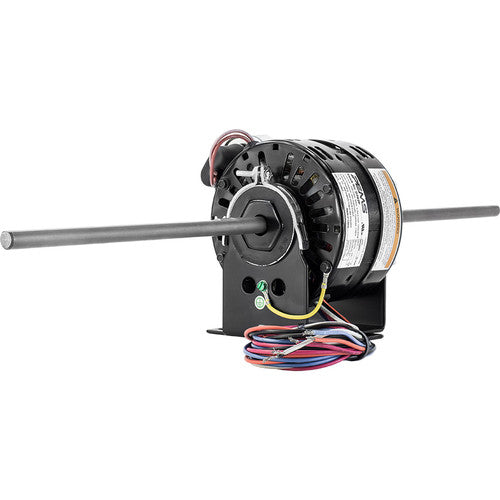

FASCO D292A Fan Coil & Air Conditioner Motor 1/10, 1/15, 1/25, 1/35 HP

Product Description

The FASCO D292A is a fan coil and air conditioner motor designed for efficient operation in various applications. This motor operates on 208-230 volts, features a permanent split capacitor, and is suitable for heating and cooling units in commercial and residential settings.

• Suitable for fan coil and air conditioning systems
• Features automatic thermal protection
• Designed for continuous duty

Product Highlights

The FASCO D292A motor is suitable for use in environments like motels, hotels, offices, and hospitals where reliable temperature control is essential.

Product Information

Standard Information

• Brand: FASCO
• MPN: D292A

Technical Specifications

• Phase: 1
• Output HP: 1/10, 1/15, 1/25, 1/35
• Voltage: 208-230 V
• Speed: 1050 rpm
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.1, 0.65, 0.37 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Lead End
• Mounting: Resilient Base
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.83 inches
• Shaft Diameter: 0.500 inches
• Output KW: 0.07
• Type: PSC
• Application: Fan Coil Air Conditioner, Unit Heater Fan
• Diameter: 5.0 inches
• Ventilation: Open Ventilation - Air Over
• Motor Style: PSC Style Motor
