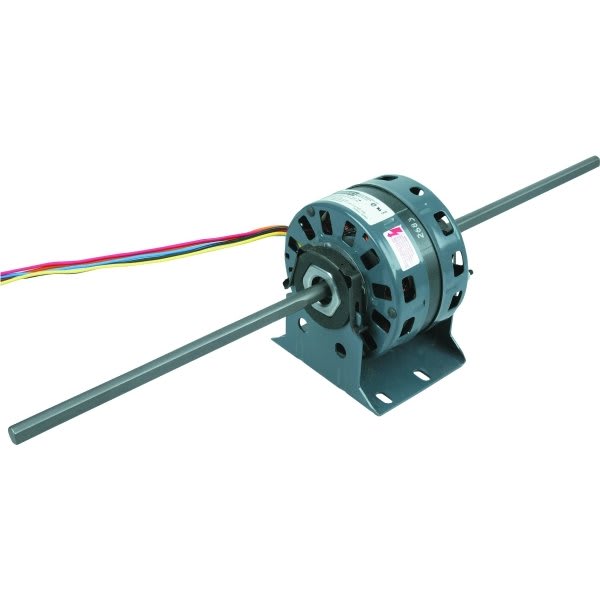

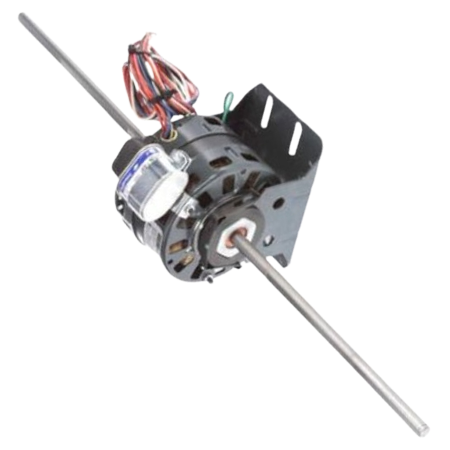

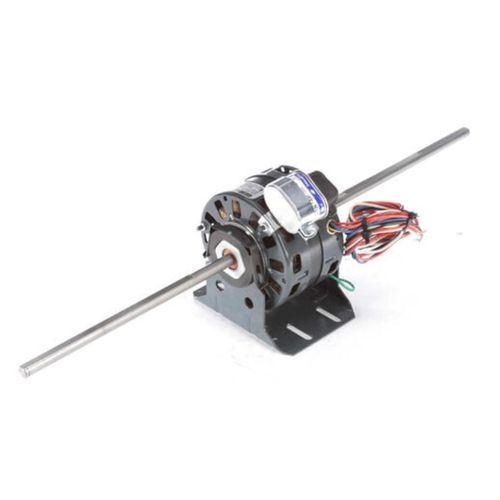

FASCO D291A Fan Coil Air Conditioner Motor 1 Phase 4 Speed

Product Description

The FASCO D291A is a reliable single-phase motor for fan coil air conditioning and heating units. Operating at one hundred fifteen volts and sixty hertz, it runs at a speed of one thousand fifty RPM. This motor includes an open air over enclosure, class B insulation for protection, and automatic thermal safety features.

• Designed for cooling and heating applications.
• Four-speed operation for flexibility.
• Includes a durable resilient mounting base.

Product Highlights

Installation is straightforward with a double shaft design and ball bearings for smooth function. A capacitor is required for operation.

Product Information

Standard Information

• Brand: FASCO
• MPN: D291A

Technical Specifications

• Phase: 1
• Output Horsepower: 1/10, 1/15, 1/25, 1/40 Hp
• Input Voltage: 115 V
• Speed: 1050 RPM
• Service Factor: 1.0
• Frame Size: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Frequency: 60 Hz
• Input Current: 2.2, 1.4, 1.0, 0.7 A
• Duty: Continuous
• Insulation Class: B
• Mounting Type: Resilient Base
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Height: 7.850 in
• Length: 26.950 in
• Width: 6.850 in
• Weight: 9.815 lb
